COGIS - WELL SCOUT CARD

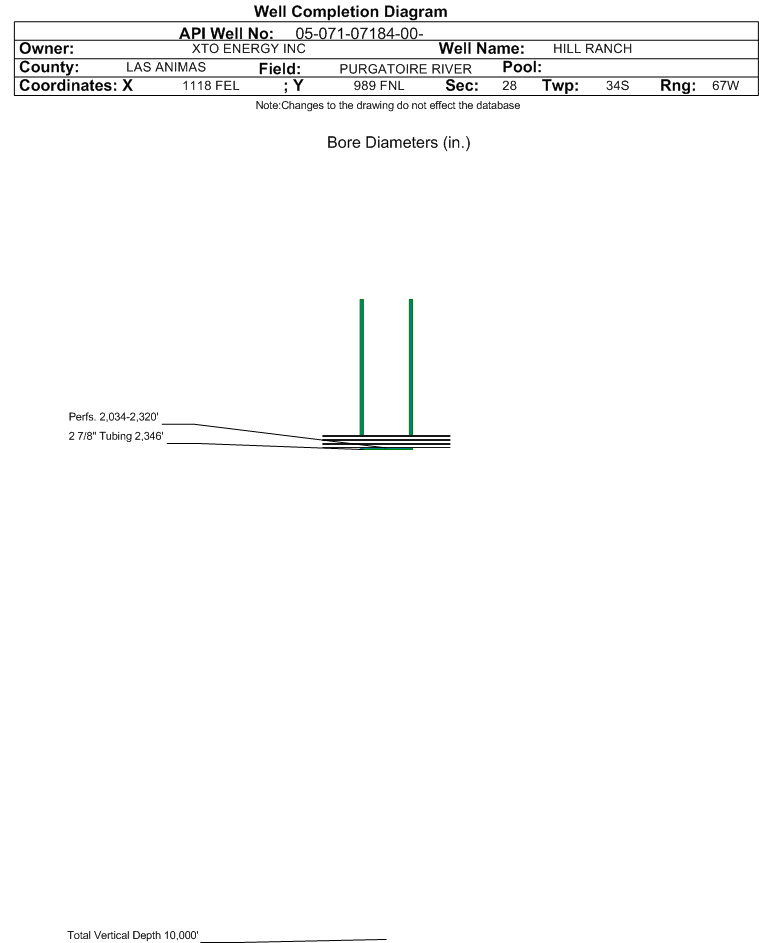

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07184
Well Classification: CBM Status: PR - 1/1/2015
Well Name/No:HILL RANCH #28-01 V
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2015
FacilityID:259040LocationID:333930
County:LAS ANIMAS #071Location:NENE 28 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7994 ft.
Planned Location:989FNL  1118 FELLat/Long: 37.059784 / -104.887939Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.059780 / -104.887960Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/1/2015             Measured TD:

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/1/2015
Wellbore Permit
Permit #:010126 Expiration Date:1/22/2002
Proposed Depth/Form:2495 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 225 ft., Weight: 20 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 225 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2495 ft., Weight: 15.5 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 2495 ft.

Wellbore Completed
Completion Date:N/A
Spud Date:1/26/2001Spud Date Is:ACTUAL
Measured TD:Measured PB depth:
True Vertical TD:True Vertical PB depth:

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 1/1/2015                  Interval Top: 2034 ft.    Interval Bottom: 2320 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:PUMPING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/1/2001
Treatment Summary:SEE SCANNED DOC.
Tubing Size:2.875 in.Tubing Setting Depth:2346 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/1/2001Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 52
BBLS_OIL 0
BTU_GAS 984
CALC_BBLS_H2O 52
CALC_BBLS_OIL 0
CALC_MCF_GAS 54
CASING_PRESS 25
MCF_GAS 54
Perforation Data:
Interval Top:2034 ft.# Of Holes:96
Interval Bottom:2320 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)13946
GOR
GOR DeterminationMCFE
Average BOE per Day6.583
Average MCFE per Day38.205

 Federal Financial Assurance  i

 Tribal Well  i No
