COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07182		Well Classification: CBM Status: PR - 11/1/2022
Well Name/No:HILL RANCH #27-12 V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/1/2022
FacilityID:259038LocationID:333937
County:LAS ANIMAS #071Location:NWSW 27 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7915 ft.
Basin:RATON BASIN
Planned Location:1889FSL  979 FWLLat/Long: 37.053184 / -104.880749Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.053150 / -104.880720Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 11/1/2022             Measured TD: 2380 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 11/1/2022
Wellbore Permit
Permit #:010124 Expiration Date:1/22/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/17/2001
Spud Date:1/29/2001Spud Date Is:ACTUAL
Measured TD:2380 ft.Measured PB depth:2371 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION, DENSITY, NEUTRON & CEMENT BOND LOG

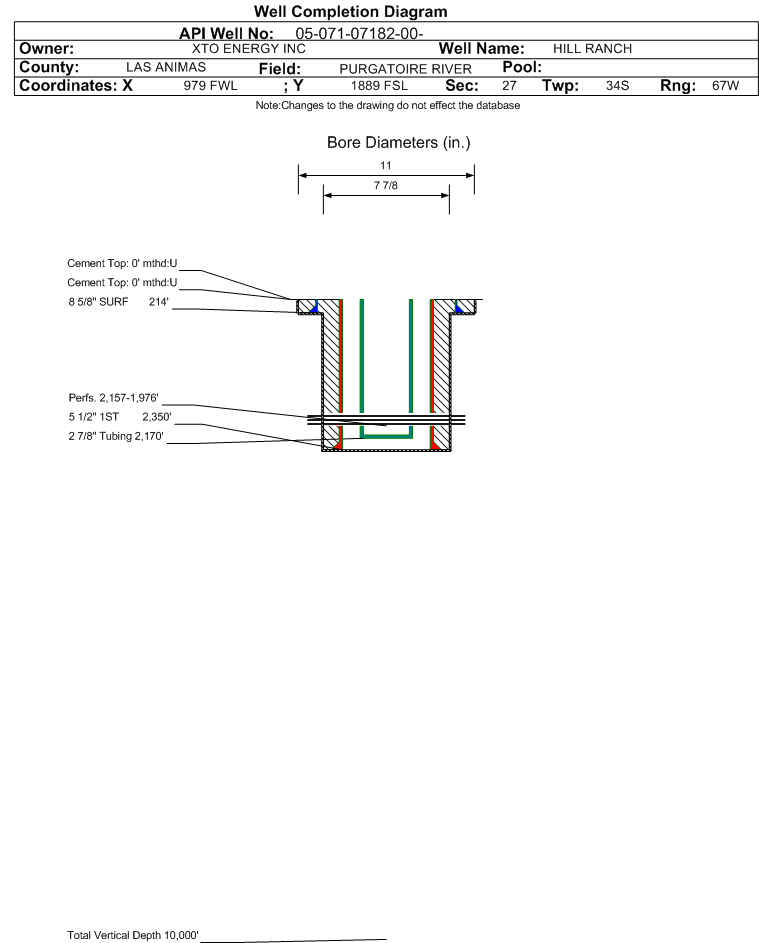

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 214 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 50, Top: 0 ft., Bottom: 214 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2350 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 345, Top: 0 ft., Bottom: 2350 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1966 ft.NN
VERMEJO COAL1966 ft.2286 ft.NN
TRINIDAD2286 ft.2370 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 11/1/2022                 Interval Top: 1976 ft.    Interval Bottom: 2157 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:PUMPING ( 30NO095-PC)
Open Hole Completion:No
Formation Treatment
Treatment Date:3/17/2001
Treatment Summary:
Tubing Size:2.875 in.Tubing Setting Depth:2170 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/22/2001Test Method:ORIFICE MEER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 285
BBLS_OIL 0
BTU_GAS 984
CALC_BBLS_H2O 285
CALC_BBLS_OIL 0
CALC_MCF_GAS 23
CASING_PRESS 25
MCF_GAS 23
Perforation Data:
Interval Top:1976 ft.# Of Holes:116
Interval Bottom:2157 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)15150
GOR
GOR DeterminationMCFE
Average BOE per Day7.159
Average MCFE per Day41.506

 Federal Financial Assurance  i

 Tribal Well  i No
