COGIS - WELL SCOUT CARD

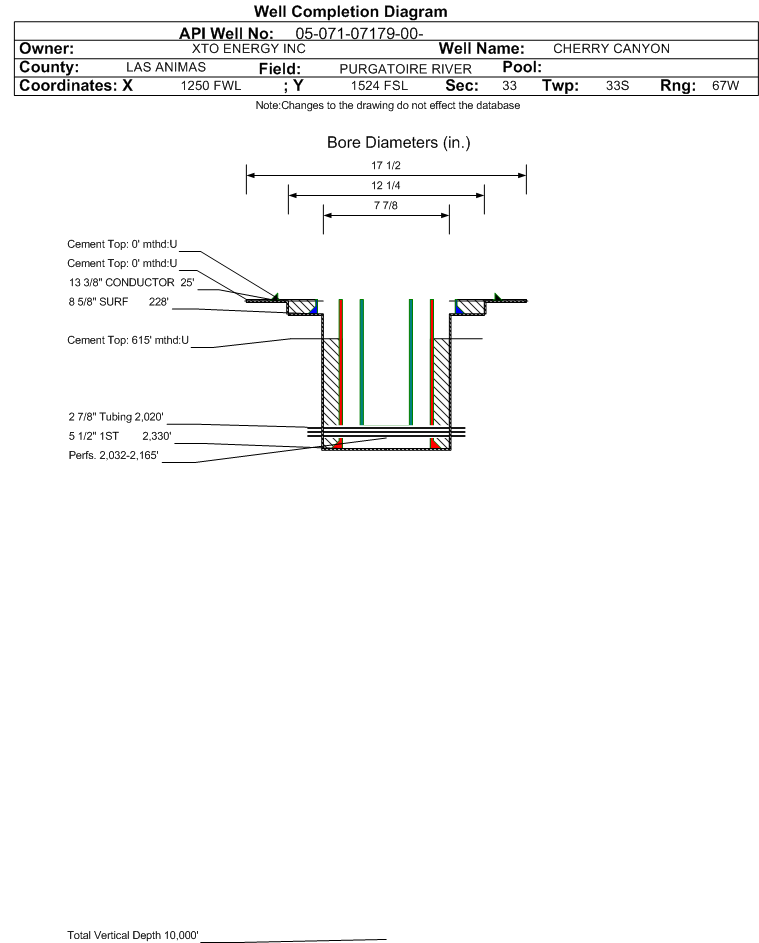

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07179		Well Classification: CBM Status: PA - 6/4/2008
Well Name/No:CHERRY CANYON #33-13
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/4/2008
FacilityID:217948LocationID:333402
County:LAS ANIMAS #071Location:NWSW 33 33S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7830 ft.
Basin:RATON BASIN
Planned Location:1524FSL  1250 FWLLat/Long: 37.124563 / -104.898570Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.124563 / -104.898570Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PA - 6/4/2008             Measured TD: 2343 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PA - 6/4/2008
Wellbore Permit
Permit #:19901164 Expiration Date:2/8/1991
Proposed Depth/Form:1900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RT-VJ , Formation: RATON-VERMEJO COALS , Order: , Unit Acreage: 160, Drill Unit:
Wellbore Completed
Completion Date:11/12/1990
Spud Date:11/10/1990Spud Date Is:ACTUAL
Measured TD:2343 ft.Measured PB depth:2330 ft.
True Vertical TD:True Vertical PB depth:
Log Types:ELECTRIC; CBL/VDT
Casing:String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 25 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 14, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 228 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 160, Top: 0 ft., Bottom: 228 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2330 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 615 ft., Bottom: 2330 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.NN
VERMEJO COAL1810 ft.NN
TRINIDAD2187 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  AB - 6/4/2008                  Interval Top: 2032 ft.    Interval Bottom: 2165 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:8/15/1991Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/12/1990
Treatment Summary:10 BBL 7.5% HCL, BKDN PERFS. FRACED W/JELLED PRODUCED WATER & 14,000# 40/70 SD, 61,000# 12/20 SD. TOTAL FLUID PUMPED 998 BBLS.
Tubing Size:2.875 in.Tubing Setting Depth:2020 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/28/1991Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 635
Perforation Data:
Interval Top:2032 ft.# Of Holes:57
Interval Bottom:2165 ft.Hole Size:0.48 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/04/2008
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
