COGIS - WELL SCOUT CARD

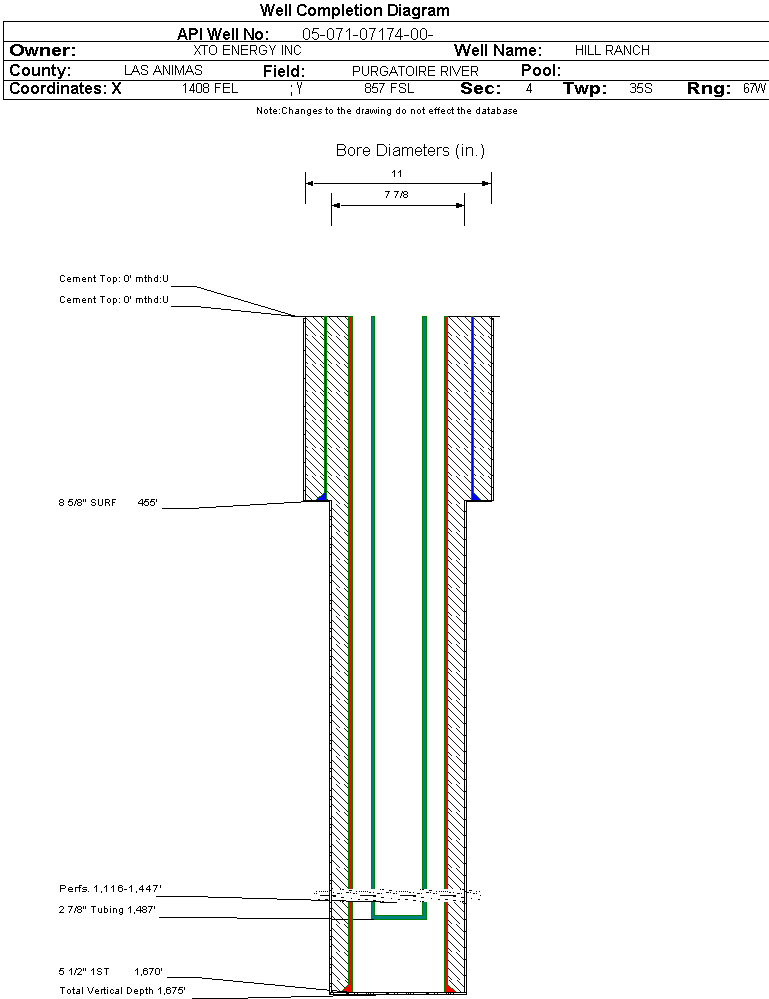

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07174		Well Classification: CBM Status: PR - 2/6/2003
Well Name/No:HILL RANCH #04-15R
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/6/2003
FacilityID:258965LocationID:333913
County:LAS ANIMAS #071Location:SWSE 4 35S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8079 ft.
Basin:RATON BASIN
Planned Location:857FSL  1408 FELLat/Long: 37.021385 / -104.888899Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.021300 / -104.888880Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 2/6/2003             Measured TD: 1675 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 2/6/2003
Wellbore Permit
Permit #:20010056 Expiration Date:1/10/2002
Proposed Depth/Form:2000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/23/2001
Spud Date:8/11/2001Spud Date Is:ACTUAL
Measured TD:1675 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:COMP.DENSITY/NEUTRON, SINGLE INDUCTION, CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 455 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 124, Top: 0 ft., Bottom: 455 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1670 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 1670 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL400 ft.1582 ft.NN

Formation RTON                     Formation Classification:  GW                     Status:  PR - 2/6/2003                  Interval Top: 1116 ft.    Interval Bottom: 1447 ft.

 Completed Information for Formation RATON COAL
1st Production Date:10/23/2001Choke Size:
Formation Name:RATON COALCommingled:No
Production Method:PUMP
Open Hole Completion:No
Formation Treatment
Treatment Date:10/23/2001
Treatment Summary:1411' - 1447' 49,600# 16/30 SAND & 389 BBLS FLUID // 1269' - 1294' 56,500# 16/30 SAND & 419 BBLS FLUID // 1116' - 11156' 44,700# 16/30 SAND & 326 BBLS FLUID.
Tubing Size:2.875 in.Tubing Setting Depth:1487 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/24/2001Test Method:PUMP
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 328
BBLS_OIL 0
CALC_BBLS_H2O 328
CALC_BBLS_OIL 0
CALC_MCF_GAS 95
CASING_PRESS 49
MCF_GAS 95
Perforation Data:
Interval Top:1116 ft.# Of Holes:108
Interval Bottom:1447 ft.Hole Size:0.51 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)11542
GOR
GOR DeterminationMCFE
Average BOE per Day5.449
Average MCFE per Day31.618

 Federal Financial Assurance  i

 Tribal Well  i No
