Wellbore #00 Wellbore Classification: CBM Status: PR - 4/24/2001 Measured TD: 1670 ft. Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 4/24/2001 | Wellbore Permit | | Permit #: | 20001463 | Expiration Date: | 12/14/2001 | Proposed Depth/Form: | 2000 ft. | Surface Mineral Owner Same: | Yes | Mineral Owner: | FEE | Surface Owner: | FEE | Unit: | | Unit Number: | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

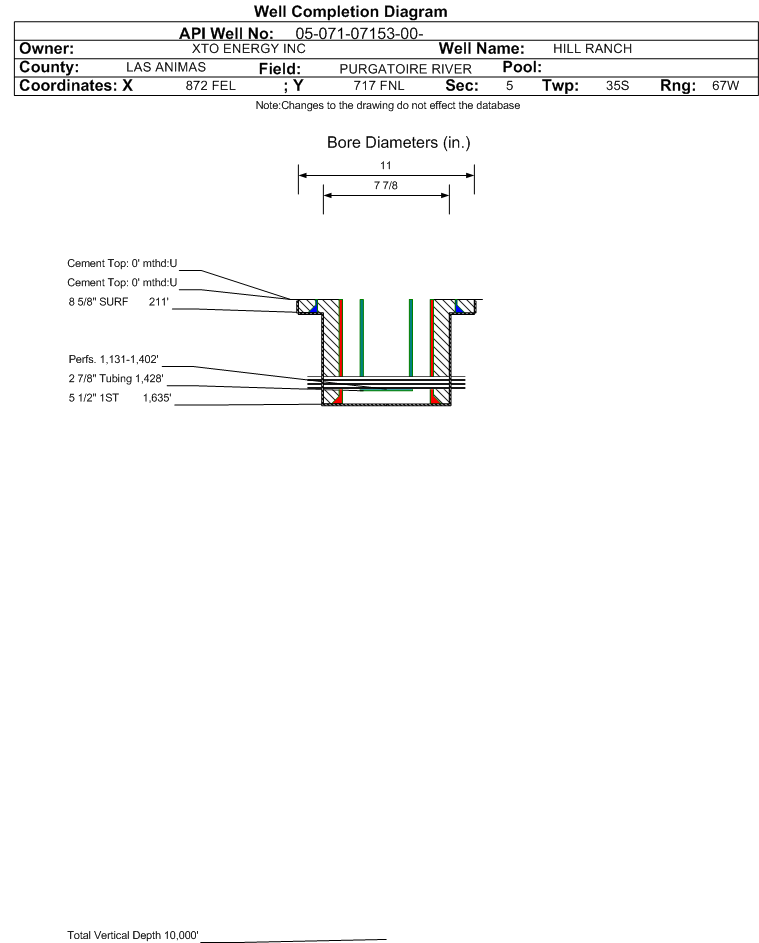

Wellbore Completed | Completion Date: | 4/6/2001 | Spud Date: | 2/19/2001 | Spud Date Is: | ACTUAL | Measured TD: | 1670 ft. | Measured PB depth: | 1668 ft. | True Vertical TD: | | True Vertical PB depth: | | Log Types: | INDUCTION, DENSITY, NEUTRON & CEMENT BOND | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 211 ft., Weight: 24 , Citings Type: ACTUAL | Cement: | Sacks: 55, Top: 0 ft., Bottom: 211 ft., Determination Method: | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1635 ft., Weight: 15.5 , Citings Type: ACTUAL | Cement: | Sacks: 220, Top: 0 ft., Bottom: 1635 ft., Determination Method: CBL | Formation | Interval Top | Log Bottom | Cored | DSTs | RATON COAL | 0 ft. | 2160 ft. | N | N |
Formation RTON Formation Classification: GW Status: PR - 4/24/2001 Interval Top: 1131 ft. Interval Bottom: 1402 ft. Completed Information for Formation RATON COAL | 1st Production Date: | 4/24/2001 | Choke Size: | | Formation Name: | RATON COAL | Commingled: | | Production Method: | 30NO095 | Open Hole Completion: | |
| Formation Treatment | Treatment Date: | 4/6/2001 | Treatment Summary: | PERFORATIONS: 1398'-1402' (4 SPF) FRAC 1ST STAGE W/ 1,420 20# DELTA 140 INC. PAD; 19,700# 16/30 BRADY SAND W/ 111,460 SCF N2. PERFORATIONS: 1322'-25' (4 SPF) FRAC 2ND STAGE W/ 2,669 20# DELTA 140 INC. PAD; 0# 16/30 BRADY SAND W/ 25,000 SCF NC. (COMMUNICATION) PERFORATIONS: 1267'-70', 1282'-84' (4 SPF) FRAC 3RD STAGE W/ 2,301 20# DELTA 140 INC. PAD; 25,6000# 16/30 BRADY SAND W/ 139.527 SCF NC. PERFORATIONS: 1185'-88' (4 SPF) FRAC 4TH STAGE W/ 1,272 20# DELTA 140 INC. PAD; 8,440# 16/30 BRADY SAND W/ 57,952 SCF N2. PERFORATIONS: 1131'-35' (4 SPF) FRAC 5TH STAGE W/ 1,859 20# DELTA 140 INC. PAD; 17,000# 16/30 BRADY SAND W/ 106,462 SCF NC. |
| Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1428 ft. | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | 4/24/2001 | Test Method: | ORIFICE METER | Hours Tested: | 24 | Gas Type: | COAL GAS | Gas Disposal: | SOLD | |
Test Type | Measure |
---|
BBLS_H2O | 239 | BBLS_OIL | 0 | BTU_GAS | 984 | CALC_BBLS_H2O | 239 | CALC_BBLS_OIL | 0 | CALC_MCF_GAS | 60 | CASING_PRESS | 25 | MCF_GAS | 60 |
| Perforation Data: | Interval Top: | 1131 ft. | # Of Holes: | 76 | Interval Bottom: | 1402 ft. | Hole Size: | 4 in. |
|
|
|
|
|
Reported Plugged | N | |
Out Of Service Repurposed | N | |
Out Of Service | N | |
Inactive Exception | N | |
Noticed Inactive | N | |
Defined Inactive | N | |
Low Producing | N | |
Total Oil Produced (Barrels) | 0 |
Total Gas Produced (MCF) | 31531 |
GOR | |
GOR Determination | MCFE |
Average BOE per Day | 14.890 |
Average MCFE per Day | 86.353 |
Federal Financial Assurance | i | |
|
|
