COGIS - WELL SCOUT CARD

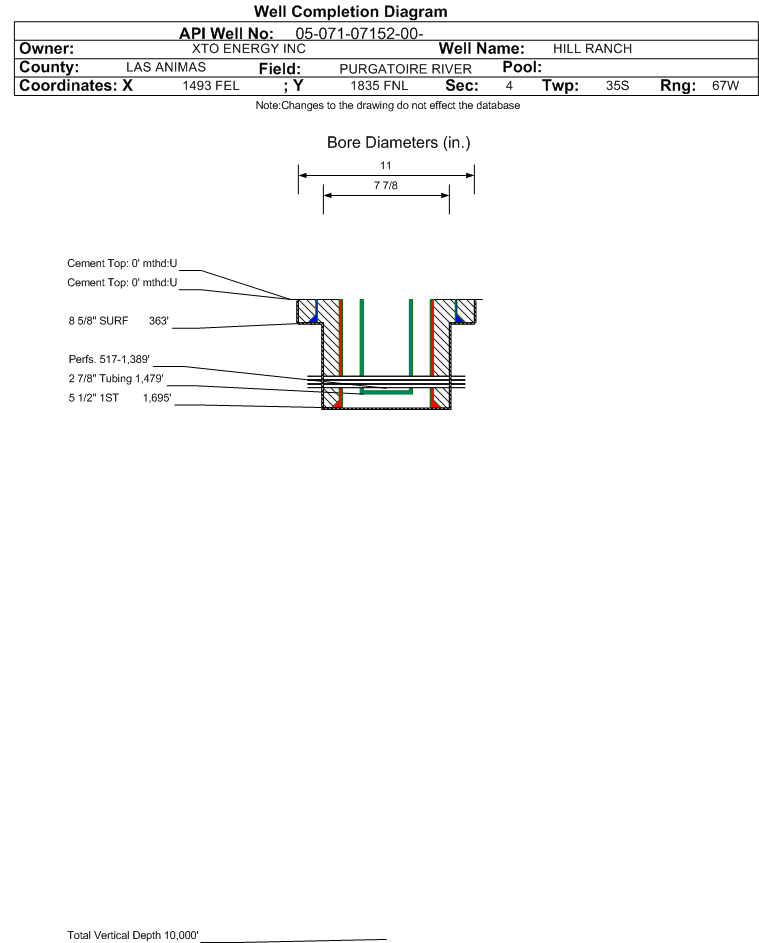

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07152		Well Classification: CBM Status: PR - 12/5/2007
Well Name/No:HILL RANCH #04-07R
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/5/2007
FacilityID:258767LocationID:333912
County:LAS ANIMAS #071Location:SWNE 4 35S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8042 ft.
Basin:RATON BASIN
Planned Location:1835FNL  1493 FELLat/Long: 37.028485 / -104.889199Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.028470 / -104.889160Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 12/5/2007             Measured TD: 1790 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 12/5/2007
Wellbore Permit
Permit #:20001462 Expiration Date:12/14/2001
Proposed Depth/Form:2000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/24/2001
Spud Date:2/23/2001Spud Date Is:ACTUAL
Measured TD:1790 ft.Measured PB depth:1784 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION, DENSITY, NEUTRON & CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 363 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 90, Top: 0 ft., Bottom: 363 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1695 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 0 ft., Bottom: 1695 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2170 ft.NN

Formation RTON                     Formation Classification:  GW                     Status:  PR - 12/5/2007                 Interval Top: 517 ft.    Interval Bottom: 1389 ft.

 Completed Information for Formation RATON COAL
1st Production Date:5/24/2001Choke Size:
Formation Name:RATON COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/7/2007
Treatment Summary:PERF 517-929': ACIDIZED W/2000 GALS 15% HCL ACID. FRAC'D W/123,020 GALS 20# DELTA 140 W/SANDWEDGE OS CARRYING 18,900# 16/30 BRADY SAND & 236,139# 12/20 ARIZONA SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1479 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/5/2007Test Method:PUMPING
Hours Tested:12Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 55
BBLS_OIL 0
BTU_GAS 1004
CALC_BBLS_H2O 110
CALC_BBLS_OIL 0
CALC_MCF_GAS 0
CASING_PRESS 0
MCF_GAS 0
TUBING_PRESS 5
Perforation Data:
Interval Top:517 ft.# Of Holes:52
Interval Bottom:1389 ft.Hole Size:0.45 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)24610
GOR
GOR DeterminationMCFE
Average BOE per Day11.623
Average MCFE per Day67.418

 Federal Financial Assurance  i

 Tribal Well  i No
