Wellbore #00 Wellbore Classification: CBM Status: PR - 10/1/2025 Measured TD: 2450 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 10/1/2025 | | Wellbore Permit | | | Permit #: | 20001450 | Expiration Date: | 12/13/2001 | | Proposed Depth/Form: | 2800 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

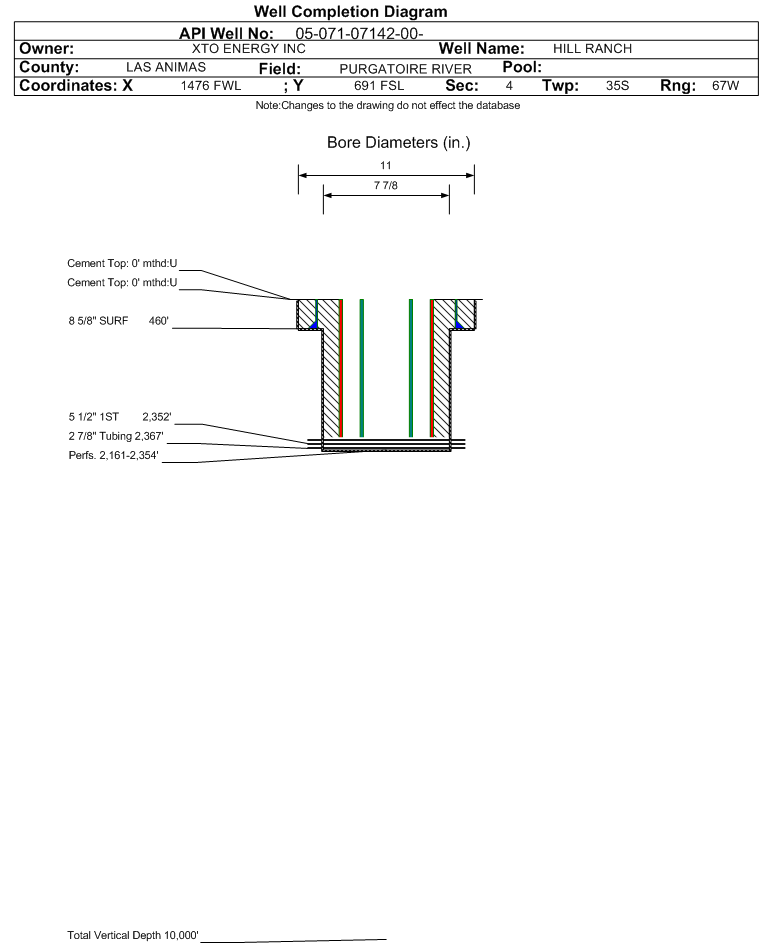

| Wellbore Completed | | Completion Date: | 2/12/2001 | | Spud Date: | 1/14/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 2450 ft. | Measured PB depth: | 2436 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | COMP.DENSITY/NEUTRON, SINGLE INDUCTION & CBL | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 460 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 460 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2352 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 2352 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 2084 ft. | N | N | | VERMEJO COAL | 2084 ft. | 2410 ft. | N | N | | TRINIDAD | 2410 ft. | 2450 ft. | N | N |
Formation VRMJ Formation Classification: GW Status: PR - 10/1/2025 Interval Top: 2161 ft. Interval Bottom: 2354 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | 2/22/2001 | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | | | Production Method: | PUMPING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 2/12/2001 | | Treatment Summary: | PERFORATIONS: 2349'-54' (4 SPF) FRAC 1ST STAGE W/ 17,050 GAL. 20# DELTA FRAC 140 (INC. PAD), 2,500 GAL. LINEAR GEL, 30,000# 16/30, 250 GAL 15% HCL PERFORATIONS: 2289'-97' (4 SPF) FRAC 2ND STAGE W/ 31,950 GAL. 24# DELTA FRAC 140 (INC. PAD), 2,500 GAL. LINEAR GEL, 70,000# 16/30, 250 GAL. 15% HCL PERFORATIONS: 2262'-2267' (4 SPF) FRAC 3RD STAGE W/ 20,750 GAL. 24# DELTA FRAC 140 (INC. PAD), 2,000 GAL. LINEAR GEL, 40,000# 16/30, 250 GAL. 15% HCL. PERFORATIONS: 2161'-69' (4 SPF) FRAC 4RD STAGE W/ 35,350 GAL. 24# DELTA FRAC 140 (INC. PAD) 2,500 GAL. LINEAR GEL, 80,000# 16/30, 250 GAL. 15% HCL. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2367 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/24/2001 | Test Method: | ORIFICE METER | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 320 | | BBLS_OIL | 0 | | BTU_GAS | 984 | | CALC_BBLS_H2O | 320 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 228 | | CASING_PRESS | 25 | | MCF_GAS | 228 |
| | Perforation Data: | | Interval Top: | 2161 ft. | # Of Holes: | 104 | | Interval Bottom: | 2354 ft. | Hole Size: | 4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
02/2025 - 01/2026 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 768 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.367 |
| Average MCFE per Day | 2.120 |
| Federal Financial Assurance | i | |
|
|
