COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07102		Well Classification: CBM Status: PR - 12/12/2000
Well Name/No:HILL RANCH #03-13 V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/12/2000
FacilityID:258554LocationID:333908
County:LAS ANIMAS #071Location:SWSW 3 35S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8193 ft.
Basin:RATON BASIN
Planned Location:812FSL  1119 FWLLat/Long: 37.021245 / -104.880249Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.021220 / -104.880220Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 12/12/2000             Measured TD: 2585 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 12/12/2000
Wellbore Permit
Permit #:20001286 Expiration Date:11/21/2001
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/3/2001
Spud Date:11/30/2000Spud Date Is:ACTUAL
Measured TD:2585 ft.Measured PB depth:2531 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION, DENSITY, NEUTRON & CBL

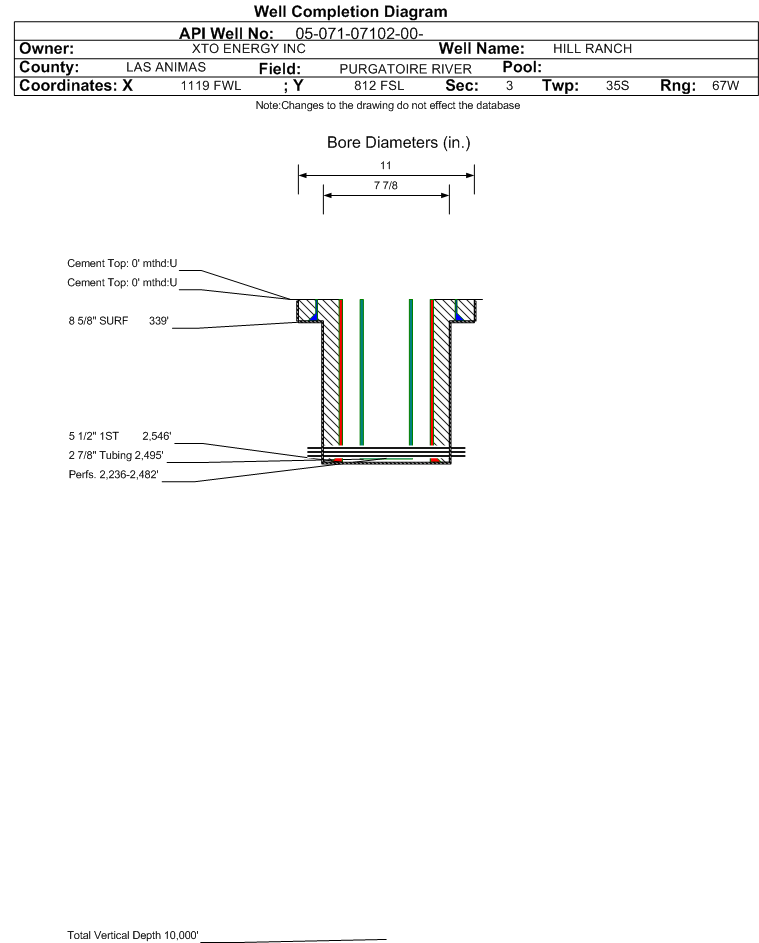

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 339 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 83, Top: 0 ft., Bottom: 339 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2546 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 404, Top: 0 ft., Bottom: 2546 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2217 ft.NN
VERMEJO COAL2217 ft.2507 ft.NN
TRINIDAD2507 ft.2585 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 12/12/2000                Interval Top: 2236 ft.    Interval Bottom: 2482 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:12/12/2000Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:2/3/2001
Treatment Summary:PERFORATIONS: 2480'-84', 2469'-76' (4 SPF) FRAC 1ST STAGE W/ 35,858 GAL. 20# DELTA FRAC, 69,400# 16/30 & 32.3 GAL 15% HCL PERFORATIONS: 2442'-46' (4 SPF) FRAC 2ND STAGE W/ 15,936 GAL 20# DELTA FRAC & 20,000# 16/30. PERFORATIONS: 2404'-09' (4 SPF) FRAC 3RD STAGE W/ 17,900 GAL 20# DELTA FRAC, 28,500# 16/30 & 37.3 GAL 15% HCL PERFORATIONS: 2377'-81' (4 SPF) FRAC 4TH STAGE W/ 13,827 GAL. 20# DELTA FRAC, 28,500# 16/30 & 38 GAL 15% HCL PERFORATIONS: 2331'-36' (4 SPF) FRAC 5TH STAGE W/ 13,897 GAL. 20# DELTA FRAC, 19,630# 16/30 & 40 GAL 15% HCL PERFORATIONS: 2306'-11' (4 SPF) FRAC 6TH STAGE W/ 14,252 GAL 20# DELTA FRAC, 8,600# 16/30 & 29.3 GAL 15% HCL PERFORATIONS: 2246'-50', 2236'-40' (4 SPF) FRAC 7TH STAGE W/ 14,238 GAL 20# DELTA FRAC, 18,600# 16/30 & 13.6 GAL 15% HCL
Tubing Size:2.875 in.Tubing Setting Depth:2495 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/12/2000Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 250
BBLS_OIL 0
BTU_GAS 984
CALC_BBLS_H2O 250
CALC_BBLS_OIL 0
CALC_MCF_GAS 17
CASING_PRESS 25
MCF_GAS 17
Perforation Data:
Interval Top:2236 ft.# Of Holes:168
Interval Bottom:2482 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)3739
GOR
GOR DeterminationMCFE
Average BOE per Day1.765
Average MCFE per Day10.214

 Federal Financial Assurance  i

 Tribal Well  i No
