COGIS - WELL SCOUT CARD

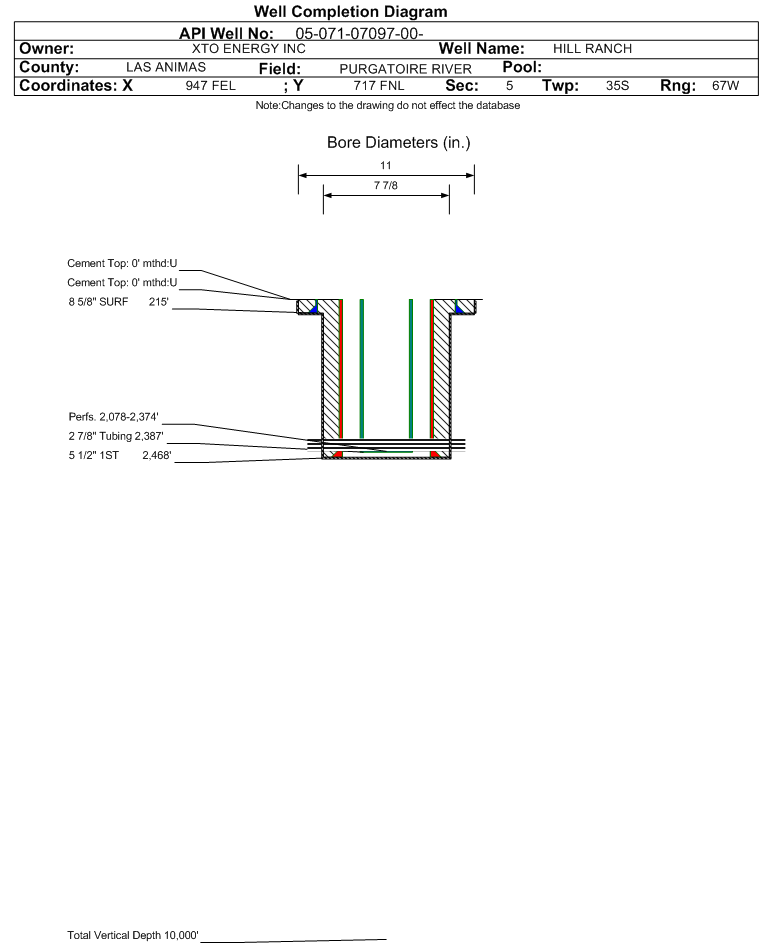

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07097		Well Classification: CBM Status: PR - 3/21/2001
Well Name/No:HILL RANCH #05-01 V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/21/2001
FacilityID:258497LocationID:333914
County:LAS ANIMAS #071Location:NENE 5 35S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8074 ft.
Basin:RATON BASIN
Planned Location:717FNL  947 FELLat/Long: 37.031524 / -104.905419Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.031550 / -104.905180Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 3/21/2001             Measured TD: 2475 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 3/21/2001
Wellbore Permit
Permit #:20001247 Expiration Date:11/13/2001
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/14/2000
Spud Date:11/19/2000Spud Date Is:ACTUAL
Measured TD:2475 ft.Measured PB depth:2467 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION, DENSITY, NEUTRON & CEMENT BOND
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 215 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 55, Top: 0 ft., Bottom: 215 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2468 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 444, Top: 0 ft., Bottom: 2468 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2160 ft.NN
VERMEJO COAL2160 ft.2395 ft.NN
TRINIDAD2395 ft.2475 ft.NN

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 3/21/2001                 Interval Top: 2078 ft.    Interval Bottom: 2374 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:12/24/2000Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:
Production Method:30NO095
Open Hole Completion:
Formation Treatment
Treatment Date:12/14/2000
Treatment Summary:PERFORATIONS: 2370'-74' (4 SPF) FRAC 1ST STAGE W/ 4,500 20# DELTA 140 PAD; 16,250 GAL. 20# DELTA 140-SLF; 40,000# 16/30 BRADY SAND & 250 GAL. 15% HCL PERFORATIONS: 2303'-05'', 2312'-15' (4 SPF) FRAC 2ND STAGE W/ 4,500 20# DELTA 140 PAD; 16,250 GAL. 20# DELTA 140-SLF; 40,000# 16/30 BRADY SAND & 250 GAL. 15% HCL PERFORATIONS: 2257'-61' (4 SPF) FRAC 3RD STAGE W/ 4,500 20# DELTA 140 PAD; 16,250 GAL. 20# DELTA 140-SLF; 40,000# 16/30 BRADY SAND & 250 GAL. 15% HCL PERFORATIONS: 2166'-68' (4 SPF) FRAC 4TH STAGE W/ 2,000 20# DELTA 140 PAD; 11,000 GAL. 20# DELTA 140-SLF; 20,750# 16/30 BRADY SAND & 250 GAL. 15% HCL PERFORATIONS: 2078'-80' (4 SPF) FRAC 5TH STAGE W/ 2,000 20# DELTA 140 PAD; 11,000 GAL. 20# DELTA 140-SLF; 20,750# 16/30 BRADY SAND & 250 GAL. 15% HCL
Tubing Size:2.875 in.Tubing Setting Depth:2387 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/24/2000Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 328
BBLS_OIL 0
BTU_GAS 984
CALC_BBLS_H2O 328
CALC_BBLS_OIL 0
CALC_MCF_GAS 5
CASING_PRESS 25
MCF_GAS 5
Perforation Data:
Interval Top:2078 ft.# Of Holes:272
Interval Bottom:2374 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)6981
GOR
GOR DeterminationMCFE
Average BOE per Day3.301
Average MCFE per Day19.141

 Federal Financial Assurance  i

 Tribal Well  i No
