Wellbore #00 Wellbore Classification: CBM Status: PR - 4/28/2002 Measured TD: 2530 ft. Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 4/28/2002 | Wellbore Permit | | Permit #: | 20020153 | Expiration Date: | 1/30/2003 | Proposed Depth/Form: | 2800 ft. | Surface Mineral Owner Same: | Yes | Mineral Owner: | FEE | Surface Owner: | FEE | Unit: | | Unit Number: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

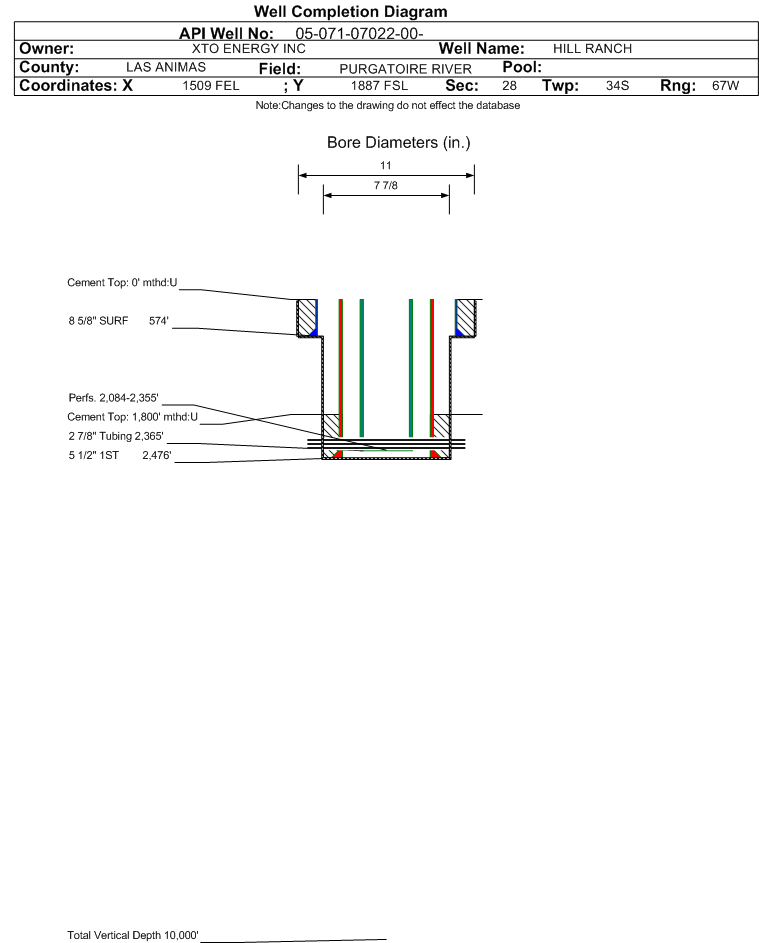

Wellbore Completed | Completion Date: | 4/17/2002 | Spud Date: | 3/3/2002 | Spud Date Is: | ACTUAL | Measured TD: | 2530 ft. | Measured PB depth: | 2525 ft. | True Vertical TD: | | True Vertical PB depth: | | Log Types: | COMP,DEN/NEU, SINGLE IND.&CMT BOND (2) | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 574 ft., Weight: 24 , Citings Type: ACTUAL | Cement: | Sacks: 155, Top: 0 ft., Bottom: 574 ft., Determination Method: CBL | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2476 ft., Weight: 15.5 , Citings Type: ACTUAL | Cement: | Sacks: 350, Top: 1800 ft., Bottom: 2476 ft., Determination Method: CBL | Formation | Interval Top | Log Bottom | Cored | DSTs | RATON COAL | 0 ft. | 2065 ft. | N | N | VERMEJO COAL | 2065 ft. | 2400 ft. | N | N | TRINIDAD | 2400 ft. | 2530 ft. | N | N |
Formation VRMJ Formation Classification: GW Status: PR - 4/28/2002 Interval Top: 2084 ft. Interval Bottom: 2355 ft. Completed Information for Formation VERMEJO COAL | 1st Production Date: | N/A | Choke Size: | | Formation Name: | VERMEJO COAL | Commingled: | No | Production Method: | PUMPING | Open Hole Completion: | No |
| Formation Treatment | Treatment Date: | 4/17/2002 | Treatment Summary: | |
| Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2365 ft. | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | 4/28/2002 | Test Method: | ORIFICE METER | Hours Tested: | 24 | Gas Type: | COAL GAS | Gas Disposal: | | |
Test Type | Measure |
---|
CALC_MCF_GAS | 53 | CASING_PRESS | 25 | MCF_GAS | 53 |
| Perforation Data: | Interval Top: | 2084 ft. | # Of Holes: | 100 | Interval Bottom: | 2355 ft. | Hole Size: | 4 in. |
|
|
|
|
|
Reported Plugged | N | |
Out Of Service Repurposed | N | |
Out Of Service | N | |
Inactive Exception | N | |
Noticed Inactive | N | |
Defined Inactive | N | |
Low Producing | N | |
Total Oil Produced (Barrels) | 0 |
Total Gas Produced (MCF) | 26819 |
GOR | |
GOR Determination | MCFE |
Average BOE per Day | 12.663 |
Average MCFE per Day | 73.458 |
Federal Financial Assurance | i | |
|
|
