COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06917		Well Classification: CBM Status: PR - 6/6/2000
Well Name/No:HILL RANCH #32-15V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/6/2000
FacilityID:256550LocationID:307752
County:LAS ANIMAS #071Location:SWSE 32 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8150 ft.
Basin:RATON BASIN
Planned Location:1250FSL  1450 FELLat/Long: 37.037164 / -104.906980Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.036930 / -104.906880Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

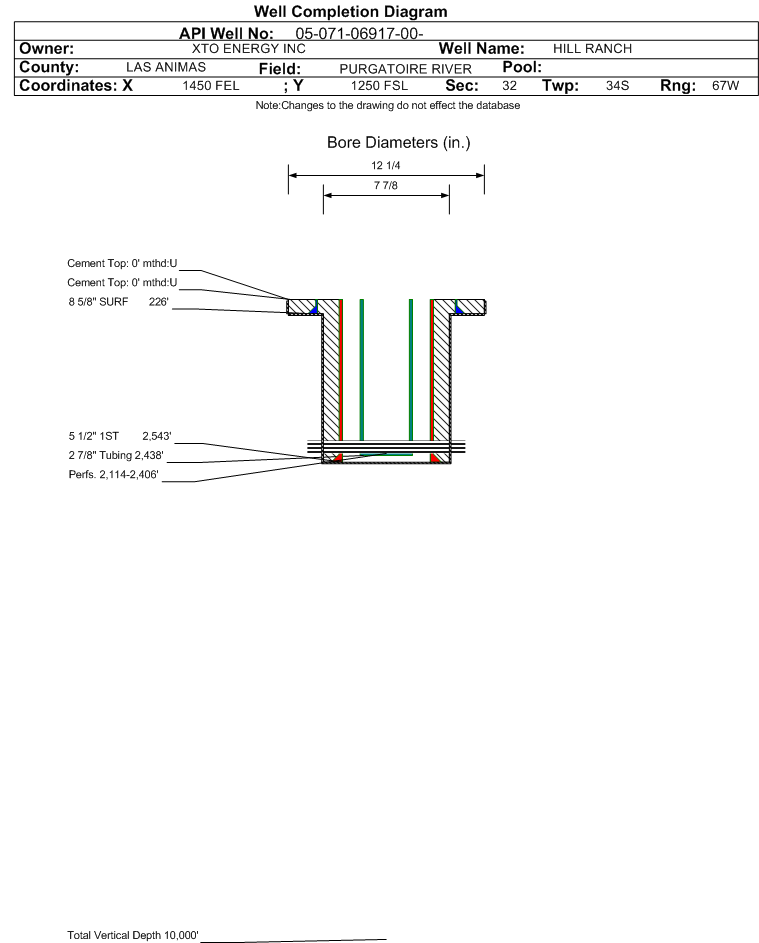

Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/4/2000             Measured TD: 2570 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/4/2000
Wellbore Permit
Permit #:000013 Expiration Date:1/3/2000
Proposed Depth/Form:1800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/22/2000
Spud Date:1/22/2000Spud Date Is:ACTUAL
Measured TD:2570 ft.Measured PB depth:2567 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP DENS/NEUT & CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 226 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 70, Top: 0 ft., Bottom: 226 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2543 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 305, Top: 0 ft., Bottom: 2543 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
VERMEJO COAL2261 ft.2466 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 6/6/2000                  Interval Top: 2114 ft.    Interval Bottom: 2406 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:3/21/2000Choke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/22/2000
Treatment Summary:1ST) 2401-06 20000# 20/40 30000# 16/30 & 290000 SCF N2. 2ND) 1334-38 20000# 20/40 30000# 16/30 & 305000 SCF N2. 3RD) 2260-64' 20000# 20/40 40000# 16/30 & 320000 SCF N2. 4TH 2152-56' 2134-38' 2122-26' 2114-18' 40000# 20/40 & 190000 SCF N2.
Tubing Size:2.875 in.Tubing Setting Depth:2438 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/17/2000Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 120
BBLS_OIL 0
BTU_GAS 1004
CALC_BBLS_H2O 120
CALC_BBLS_OIL 0
CALC_MCF_GAS 53
CASING_PRESS 25
MCF_GAS 53
Perforation Data:
Interval Top:2114 ft.# Of Holes:116
Interval Bottom:2406 ft.Hole Size:4 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)3223
GOR
GOR DeterminationMCFE
Average BOE per Day1.528
Average MCFE per Day8.855

 Federal Financial Assurance  i

 Tribal Well  i No
