Wellbore #00 Wellbore Classification: CBM Status: PR - 8/28/2002 Measured TD: 1645 ft. Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 8/28/2002 | Wellbore Permit | | Permit #: | 010448 | Expiration Date: | 3/5/2002 | Proposed Depth/Form: | 2000 ft. | Surface Mineral Owner Same: | Yes | Mineral Owner: | FEE | Surface Owner: | FEE | Unit: | | Unit Number: | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

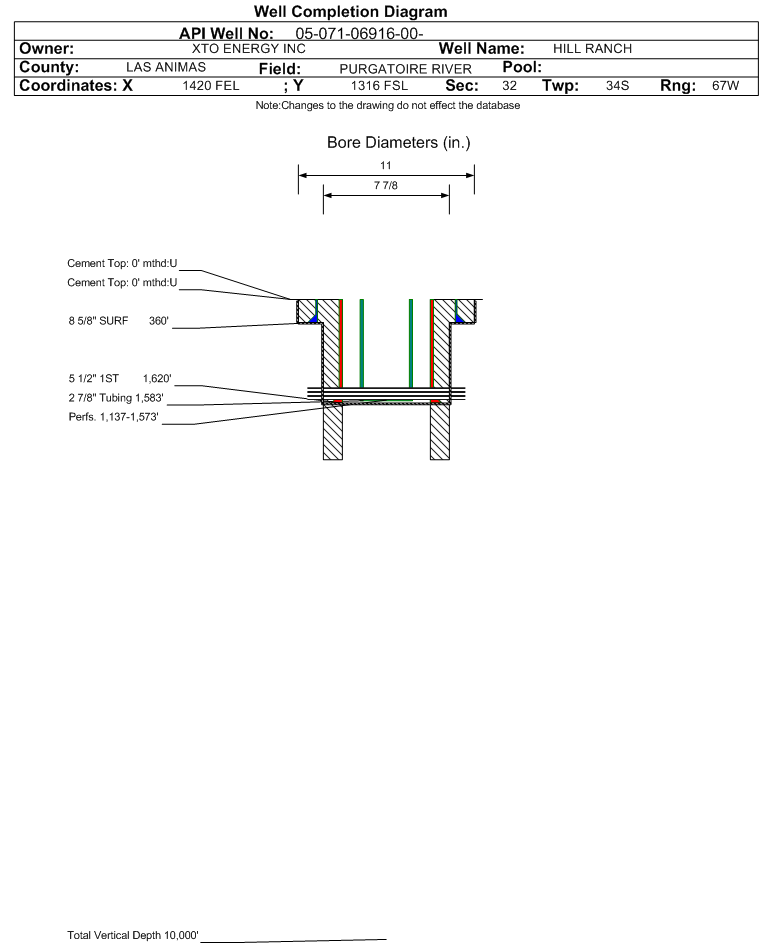

Wellbore Completed | Completion Date: | 6/6/2001 | Spud Date: | 4/25/2001 | Spud Date Is: | ACTUAL | Measured TD: | 1645 ft. | Measured PB depth: | 1631 ft. | True Vertical TD: | | True Vertical PB depth: | | Log Types: | CDL, SIL, SECTOR BOND LOG | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 360 ft., Weight: 24 , Citings Type: ACTUAL | Cement: | Sacks: 120, Top: 0 ft., Bottom: 360 ft., Determination Method: | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1620 ft., Weight: 15.5 , Citings Type: ACTUAL | Cement: | Sacks: 275, Top: 0 ft., Bottom: 2505 ft., Determination Method: CBL | Formation | Interval Top | Log Bottom | Cored | DSTs | RATON COAL | 0 ft. | 1656 ft. | N | N |
Formation RTON Formation Classification: GW Status: PR - 8/28/2002 Interval Top: 1137 ft. Interval Bottom: 1573 ft. Completed Information for Formation RATON COAL | 1st Production Date: | N/A | Choke Size: | | Formation Name: | RATON COAL | Commingled: | No | Production Method: | PUMPING ( 20NO095 - PC ) | Open Hole Completion: | No |
| Formation Treatment | Treatment Date: | 6/6/2001 | Treatment Summary: | COBRA FRAC; PERFORATIONS; 1570'-73' (4 SPF) FRAC 1ST STAGE W/3331 GAL,FLUID (INC.PAD). 8700 16/30 BRADY, 95673 SCF N2, 250 GAL. ACID PERFORATIONS; 1480'-83' (4 SPF) FRAC 2ND STAGE W/5750 GAL. FLUID(INC.PAD), 17100 16/30 BRADY, 149628 SCF N2, 250 GAL.ACID |
| Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1583 ft. | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | 6/14/2001 | Test Method: | ORIFICE METER | Hours Tested: | 24 | Gas Type: | COAL GAS | Gas Disposal: | SOLD | |
Test Type | Measure |
---|
BBLS_H2O | 265 | BBLS_OIL | 0 | BTU_GAS | 1000 | CALC_BBLS_H2O | 265 | CALC_BBLS_OIL | 0 | CALC_MCF_GAS | 17 | CASING_PRESS | 25 | MCF_GAS | 17 |
| Perforation Data: | Interval Top: | 1137 ft. | # Of Holes: | 116 | Interval Bottom: | 1573 ft. | Hole Size: | 4 in. |
|
|
|
|
|
Reported Plugged | N | |
Out Of Service Repurposed | N | |
Out Of Service | N | |
Inactive Exception | N | |
Noticed Inactive | N | |
Defined Inactive | N | |
Low Producing | N | |
Total Oil Produced (Barrels) | 0 |
Total Gas Produced (MCF) | 17051 |
GOR | |
GOR Determination | MCFE |
Average BOE per Day | 8.054 |
Average MCFE per Day | 46.710 |
Federal Financial Assurance | i | |
|
|
