COGIS - WELL SCOUT CARD

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06913
Well Classification: CBM Status: PR - 3/30/2006
Well Name/No:HILL RANCH #32-01V
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PRStatus Date3/30/2006
FacilityID:256546LocationID:312079
County:LAS ANIMAS #071Location:NENE 32 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8151 ft.
Planned Location:759FNL  1297 FELLat/Long: 37.045954 / -104.906600Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.045940 / -104.906590Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/4/2000             Measured TD: 2550 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/4/2000
Wellbore Permit
Permit #:000009 Expiration Date:1/3/2000
Proposed Depth/Form:2570 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:N/A
Spud Date:8/28/2000Spud Date Is:ACTUAL
Measured TD:2550 ft.Measured PB depth:2511 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP DENS, SINGL IND & CBL

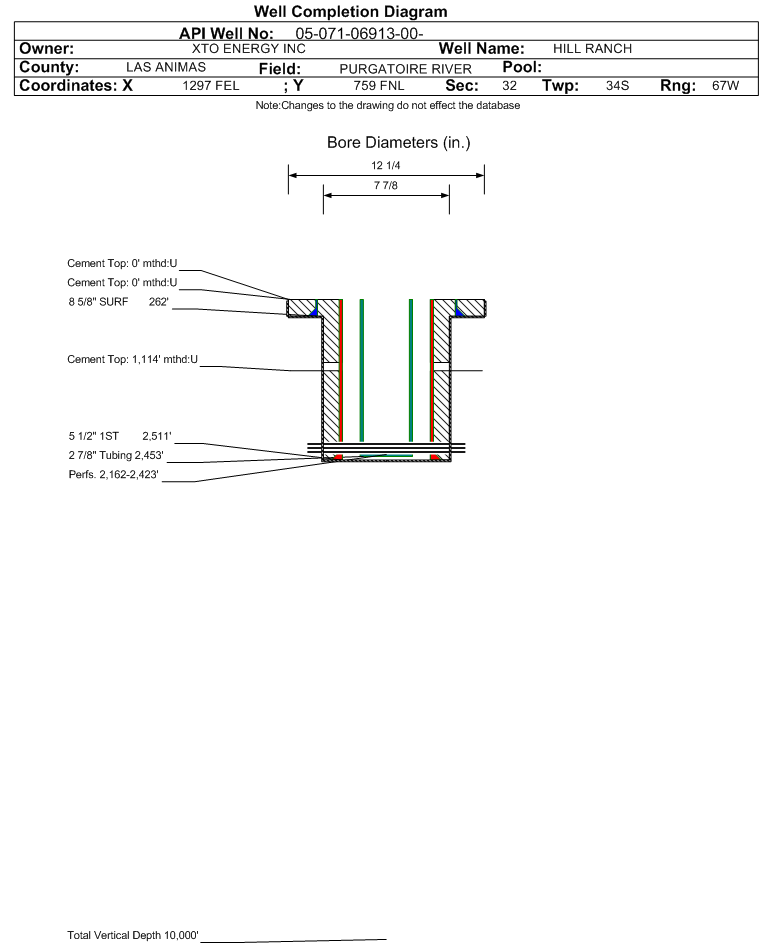

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 262 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 0 ft., Bottom: 262 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2511 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 141, Top: 1114 ft., Bottom: 2511 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 917 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 0 ft., Bottom: 986 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
VERMEJO COAL2160 ft.2452 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 3/30/2006                 Interval Top: 2162 ft.    Interval Bottom: 2423 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:30NO095
Open Hole Completion:No
Formation Treatment
Treatment Date:12/23/2000
Treatment Summary:PERFORATIONS; 2420'-23'(4/FT) FRAC 1ST STAGE W/30,00# 16/30 BRADY SAND,15%HCL,LINEAR GEL,DELTA 140-PAD,DELTA 140-SLF,FRESH H2O PREFORATIONS; 2394'-97'(4/FT) FRAC 2ND STAGE W/30,000# 16/30 BRADY SAND, 15% HCL,LINEAR GEL, DELTA 140-PAD, DELTA 140-SLF,
Tubing Size:2.875 in.Tubing Setting Depth:2453 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/23/2000Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 243
BBLS_OIL 0
BTU_GAS 985
CALC_BBLS_H2O 243
CALC_BBLS_OIL 0
CALC_MCF_GAS 190
CASING_PRESS 25
MCF_GAS 190
Perforation Data:
Interval Top:2162 ft.# Of Holes:64
Interval Bottom:2423 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)3649
GOR
GOR DeterminationMCFE
Average BOE per Day1.721
Average MCFE per Day9.997

 Federal Financial Assurance  i

 Tribal Well  i No
