COGIS - WELL SCOUT CARD

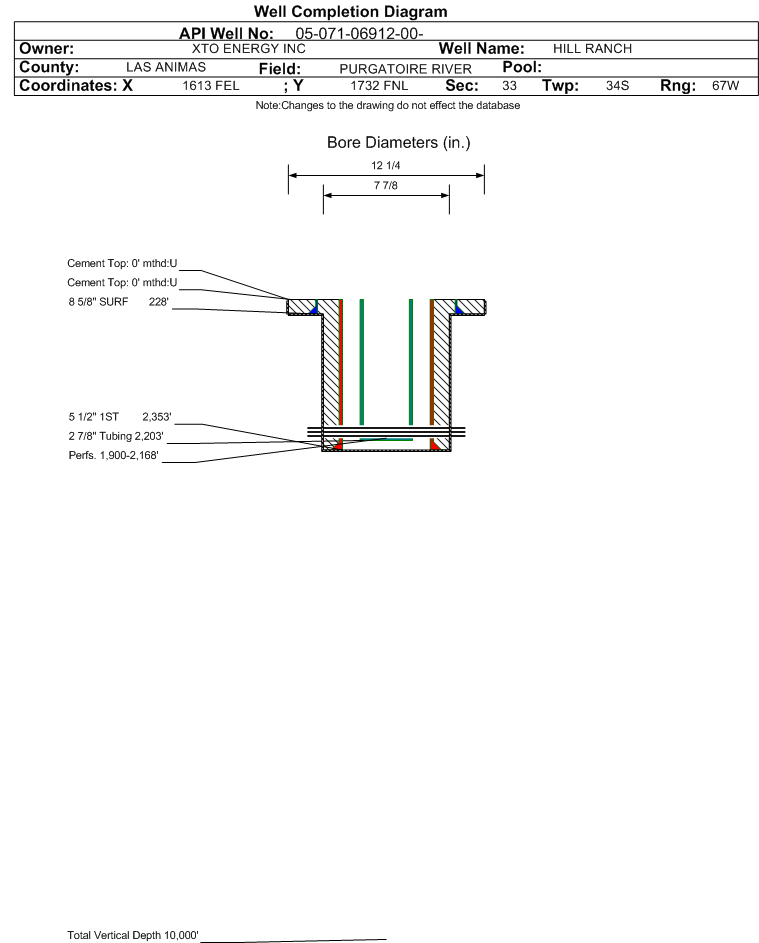

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06912		Well Classification: CBM Status: PR - 1/4/2000
Well Name/No:HILL RANCH #33-07V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/4/2000
FacilityID:256545LocationID:333900
County:LAS ANIMAS #071Location:SWNE 33 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7883 ft.
Planned Location:1732FNL  1613 FELLat/Long: 37.043304 / -104.890699Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.043250 / -104.889600Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/4/2000             Measured TD: 2392 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/4/2000
Wellbore Permit
Permit #:000008 Expiration Date:1/3/2000
Proposed Depth/Form:2400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/18/2000
Spud Date:1/17/2000Spud Date Is:ACTUAL
Measured TD:2392 ft.Measured PB depth:2353 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMPENSATED DENSITY, INDUCTION & CEMENT BOND
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 228 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 102, Top: 0 ft., Bottom: 228 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2353 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 307, Top: 0 ft., Bottom: 2353 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
VERMEJO COAL1902 ft.2215 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 1/30/2001                 Interval Top: 1900 ft.    Interval Bottom: 2168 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:3/18/2000Choke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:30NO095
Open Hole Completion:No
Formation Treatment
Treatment Date:2/18/2000
Treatment Summary:PERFORATIONS;2166'-68'2150'-55'(4/FT) FRAC 1 ST STAGE W/15,000#20/40, 75,000#16/30&360,000 SCF N2. PERFORATIONS; 2092'-96'(4/FT) FRAC 2ND STAGE W/10,000#20/40, 220,000 SCF N2. PERFORATIONS; 2006'-17'(4/FT) FRAC 3RD STAGE W/15,000#20/40, 50,000#16/30&365,0
Tubing Size:2.875 in.Tubing Setting Depth:2203 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/17/2000Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 286
CALC_BBLS_H2O 286
CALC_MCF_GAS 165
CASING_PRESS 25
MCF_GAS 165
Perforation Data:
Interval Top:1900 ft.# Of Holes:112
Interval Bottom:2168 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)9465
GOR
GOR DeterminationMCFE
Average BOE per Day4.482
Average MCFE per Day25.992

 Federal Financial Assurance  i

 Tribal Well  i No
