COGIS - WELL SCOUT CARD

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06910
Well Classification: CBM Status: PR - 2/6/2003
Well Name/No:HILL RANCH #33-10V
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PRStatus Date2/6/2003
FacilityID:256543LocationID:333875
County:LAS ANIMAS #071Location:NWSE 33 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7860 ft.
Planned Location:1528FSL  1848 FELLat/Long: 37.037764 / -104.891499Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.037470 / -104.890210Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/4/2000             Measured TD: 2240 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/4/2000
Wellbore Permit
Permit #:000006 Expiration Date:1/3/2000
Proposed Depth/Form:2350 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:2/28/2000
Spud Date:1/20/2000Spud Date Is:ACTUAL
Measured TD:2240 ft.Measured PB depth:2213 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP DENS, IND, CB & GAMMA RAY NEUTRON

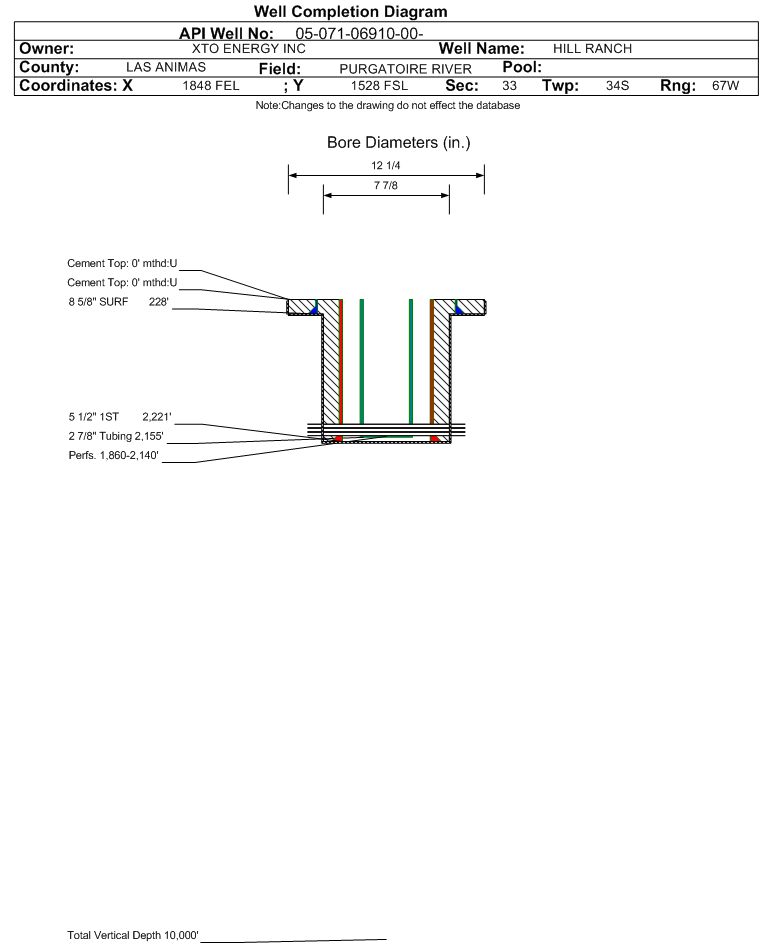

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 228 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 91, Top: 0 ft., Bottom: 228 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2221 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 580, Top: 0 ft., Bottom: 2221 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
VERMEJO COAL1920 ft.2142 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 2/6/2003                  Interval Top: 1860 ft.    Interval Bottom: 2140 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/28/2000
Treatment Summary:2136-40 1ST: W/20000# 20/40 60000# 16/30 & 370000SCF NW. 2103-07,2086-92 2ND:W/25000# 20/40 100000# 16/30 & 630000SCF N2.2038-42 3RD:W/10000# 20/40 40000# 16/30 & 290000SCF N2. 1965-70,1977-79 4TH:W/25000# 20/40 40000# 16/30 & 285000SCF N2.
Tubing Size:2.875 in.Tubing Setting Depth:2155 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/19/2000Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 250
BBLS_OIL 0
CALC_BBLS_H2O 250
CALC_BBLS_OIL 0
CALC_MCF_GAS 175
CASING_PRESS 25
MCF_GAS 175
Perforation Data:
Interval Top:1860 ft.# Of Holes:132
Interval Bottom:2140 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)8362
GOR
GOR DeterminationMCFE
Average BOE per Day3.950
Average MCFE per Day22.905

 Federal Financial Assurance  i

 Tribal Well  i No
