COGIS - WELL SCOUT CARD

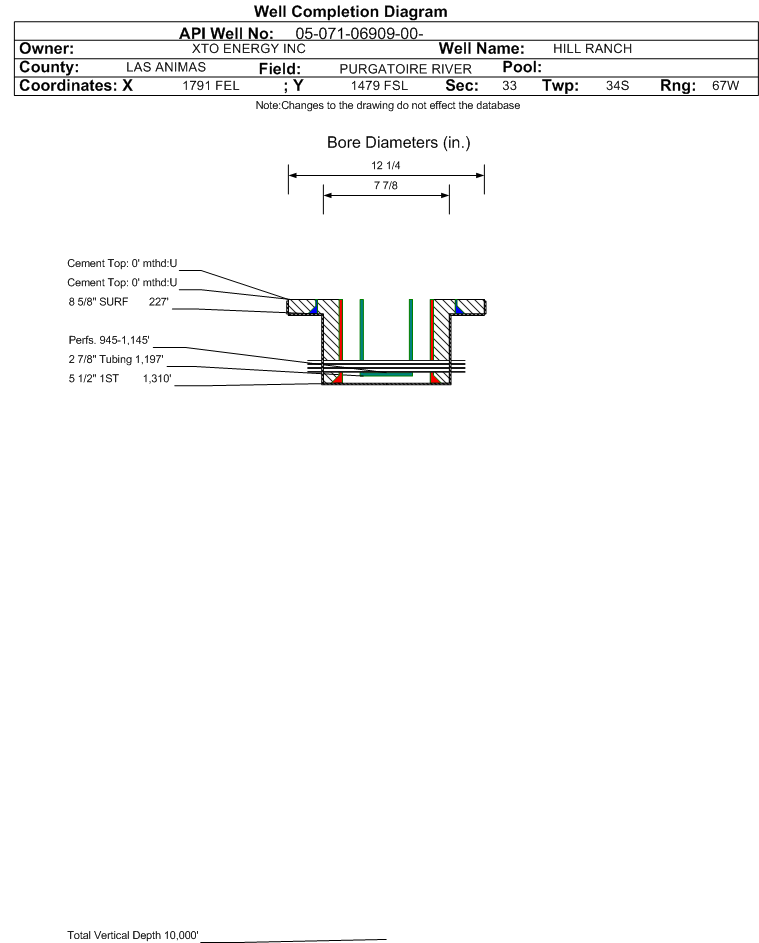

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06909
Well Classification: CBM Status: PR - 1/4/2000
Well Name/No:HILL RANCH #33-10R
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PRStatus Date1/4/2000
FacilityID:256542LocationID:333875
County:LAS ANIMAS #071Location:NWSE 33 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7848 ft.
Planned Location:1479FSL  1791 FELLat/Long: 37.037634 / -104.891309Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.037630 / -104.890260Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/4/2000             Measured TD: 1340 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/4/2000
Wellbore Permit
Permit #:000005 Expiration Date:1/3/2000
Proposed Depth/Form:1550 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:6/9/2000
Spud Date:5/22/2000Spud Date Is:ACTUAL
Measured TD:1340 ft.Measured PB depth:1298 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP DENS/SING IND & CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 227 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 120, Top: 0 ft., Bottom: 227 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1310 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: 1310 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL300 ft.1340 ft.NN

Formation RTON                     Formation Classification:  GW                     Status:  PR - 1/4/2000                  Interval Top: 945 ft.    Interval Bottom: 1145 ft.

 Completed Information for Formation RATON COAL
1st Production Date:N/AChoke Size:
Formation Name:RATON COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/9/2000
Treatment Summary:1ST) 1137-45 W/10000# 20/40,50000# 16/30 & 215000 SCF NS. 2ND) 1071-75,83-85 15000# 20/40 50000# 12/20 & 275000SCF N2. 3RD)1015-18,38-42 10000# 20/40 60000# 16/30 & 265000 SCF N2. 4TH) 945-49,59-65, 15000# 20/40 90000# 16/30 & 355000 SCF N2.
Tubing Size:2.875 in.Tubing Setting Depth:1197 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/15/2000Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 321
BTU_GAS 1003
CALC_BBLS_H2O 321
CALC_MCF_GAS 105
CASING_PRESS 25
MCF_GAS 105
Perforation Data:
Interval Top:945 ft.# Of Holes:92
Interval Bottom:1145 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)15168
GOR
GOR DeterminationMCFE
Average BOE per Day7.168
Average MCFE per Day41.545

 Federal Financial Assurance  i

 Tribal Well  i No
