COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06411		Well Classification: CBM Status: PA - 8/11/2011
Well Name/No:GOLDEN EAGLE MINE #E-1A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/11/2011
FacilityID:217632LocationID:311967
County:LAS ANIMAS #071Location:SESW 28 33S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7227 ft.
Basin:RATON BASIN
Planned Location:4266FNL  2366 FWLLat/Long: 37.138813 / -104.893060Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.139189 / -104.893630Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PA - 8/11/2011             Measured TD: 439 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PA - 8/11/2011
Wellbore Permit
Permit #:19960990 Expiration Date:12/30/1997
Bottom Hole Location:Sec:28 Twp: 33S 67W Footage: 1080 FSL  2166 FWL
Proposed Depth/Form:439 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:5/9/1988
Spud Date:5/5/1988Spud Date Is:ACTUAL
Measured TD:439 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:NONE

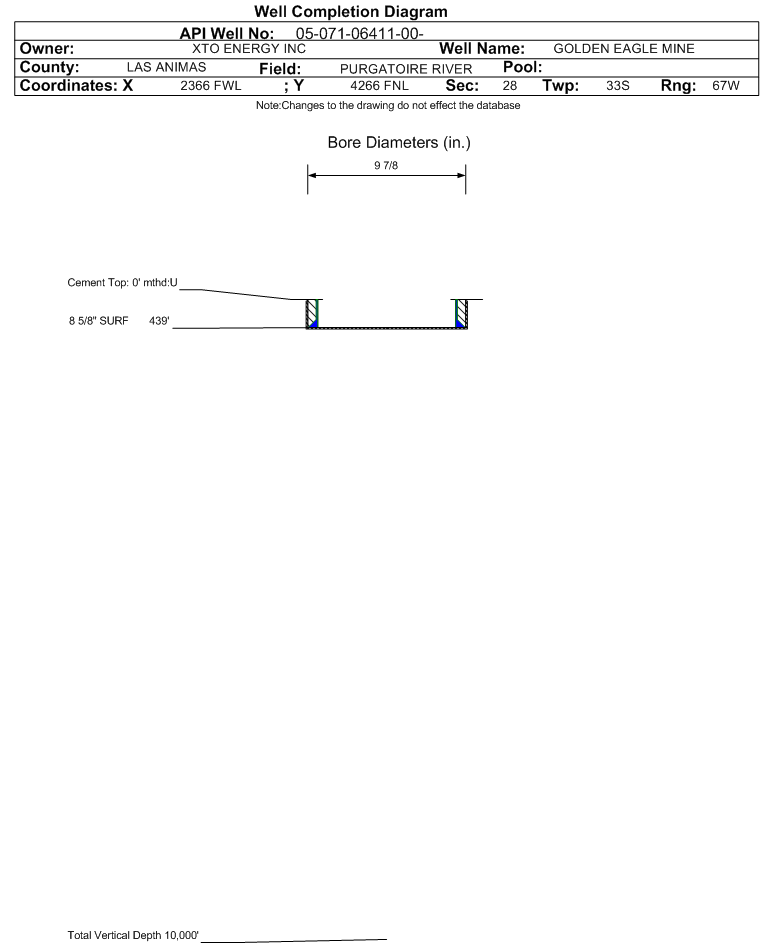

Casing:String Type: SURF, Hole Size: 9.875 in., Size: 8.625 in., Top: , Depth: 439 ft., Weight: 30 , Citings Type: ACTUAL
Cement:Sacks: 50, Top: 0 ft., Bottom: 439 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL439 ft.447 ft.NN

Formation RTON                     Formation Classification:  GW                     Status:  AB - 8/11/2011                 Interval Top: 439 ft.

 Completed Information for Formation RATON COAL
1st Production Date:9/22/1996Choke Size:0.125 in.
Formation Name:RATON COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/24/1996Test Method:
Hours Tested:168Gas Type:COAL GAS
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_MCF_GAS 485
MCF_GAS 3395
No Perforation Data was found for formation RTON.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/11/2011
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
