COGIS - WELL SCOUT CARD

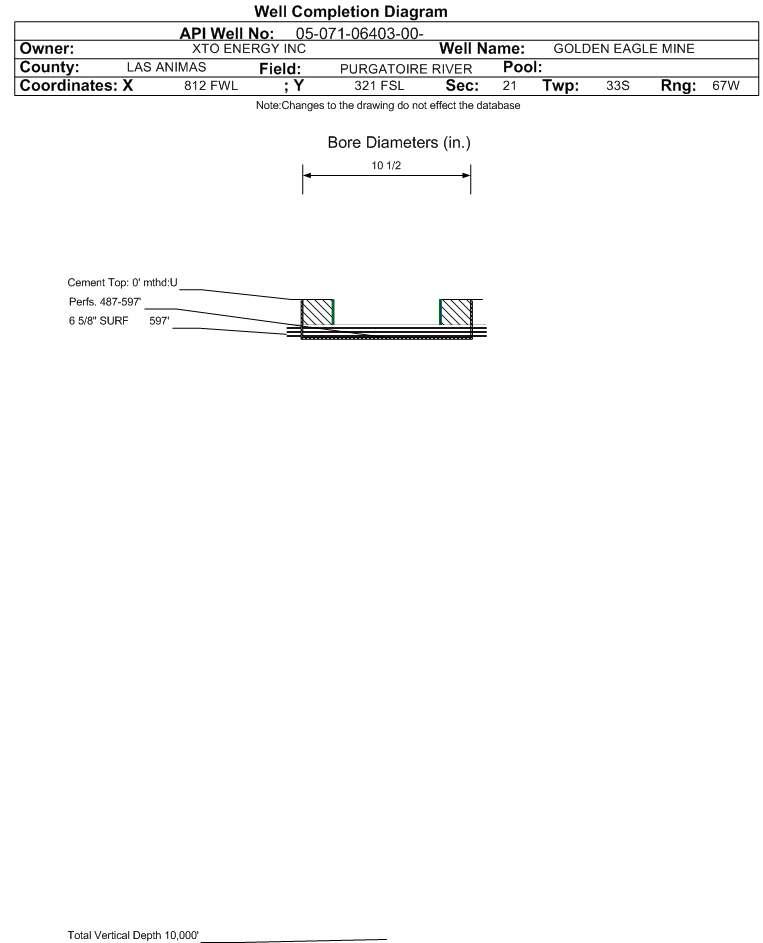

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06403		Well Classification: CBM Status: PR - 2/13/1998
Well Name/No:GOLDEN EAGLE MINE #GE-74-94
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/13/1998
FacilityID:217624LocationID:307408
County:LAS ANIMAS #071Location:SWSW 21 33S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7321 ft.
Basin:RATON BASIN
Planned Location:321FSL  812 FWLLat/Long: 37.151562 / -104.898490Lat/Long Source: Field Measured
As Drilled Location:323 FSL  818 FWLLat/Long: 37.151700 / -104.898325Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 2/13/1998             Measured TD: 672 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 2/13/1998
Wellbore Permit
Permit #:19960982 Expiration Date:12/30/1997
Proposed Depth/Form:672 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/4/1994
Spud Date:8/24/1994Spud Date Is:ACTUAL
Measured TD:672 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:GR-DEN-RES-CAL
Casing:String Type: SURF, Hole Size: 10.5 in., Size: 6.625 in., Top: 0 ft., Depth: 597 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 137, Top: 0 ft., Bottom: 597 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
RATON COAL487 ft.619 ft.YN

Formation RTON                     Formation Classification:  GW                     Status:  PR - 2/13/1998                 Interval Top: 487 ft.    Interval Bottom: 597 ft.

 Completed Information for Formation RATON COAL
1st Production Date:1/23/1998Choke Size:0.125 in.
Formation Name:RATON COALCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:9/4/1994
Treatment Summary:NONE LISTED
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/24/1996Test Method:
Hours Tested:192Gas Type:COAL GAS
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_MCF_GAS 314
MCF_GAS 2515
Perforation Data:
Interval Top:487 ft.# Of Holes:136
Interval Bottom:597 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)41867
GOR
GOR DeterminationMCFE
Average BOE per Day19.772
Average MCFE per Day114.669

 Federal Financial Assurance  i

 Tribal Well  i No
