COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06350		Well Classification: CBM Status: PR - 9/12/2007
Well Name/No:HILL RANCH #32-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:26926
Facility Status:PRStatus Date9/12/2007
FacilityID:217572LocationID:307381
County:LAS ANIMAS #071Location:SWNW 32 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8141 ft.
Basin:RATON BASIN
Planned Location:1459FNL  1172 FWLLat/Long: 37.043974 / -104.915870Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.043920 / -104.915840Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 9/12/2007             Measured TD: 2549 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 9/12/2007
Wellbore Permit
Permit #:960480 Expiration Date:6/12/1997
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: 0 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:7/31/1997
Measured TD:2549 ft.Measured PB depth:1544 ft.
True Vertical TD:0 ft.True Vertical PB depth:

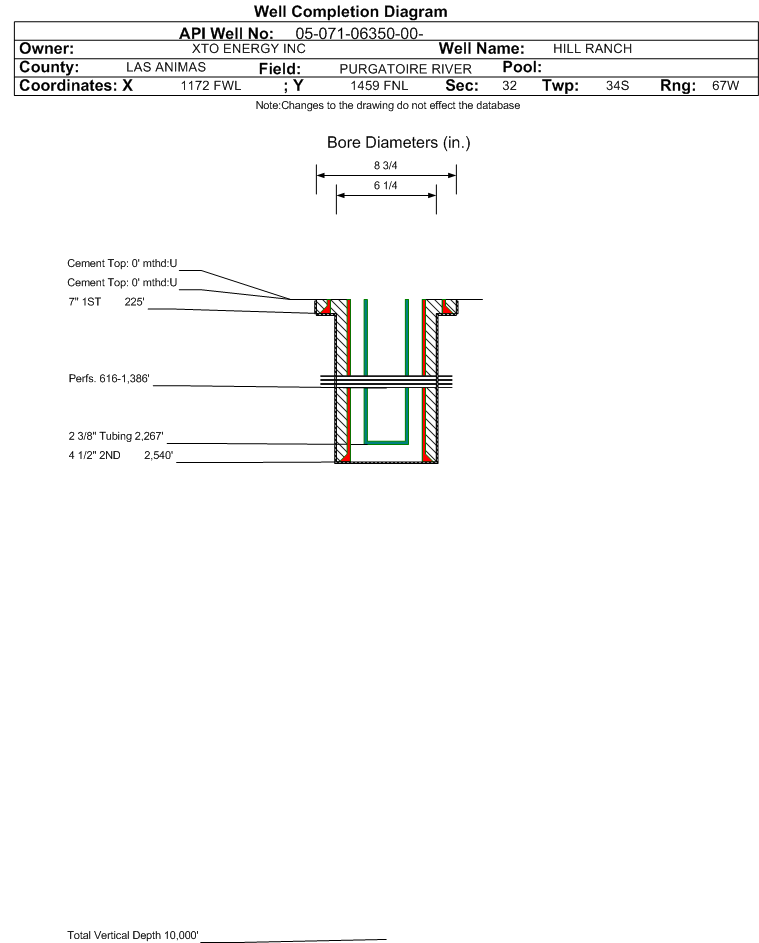

Casing:String Type: SURF, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 225 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 55, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 2540 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 340, Top: 0 ft., Bottom: , Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL414 ft.
VERMEJO COAL2157 ft.
TRINIDAD2468 ft.

Formation RTON                     Formation Classification:  GW                     Status:  PR - 9/12/2007                 Interval Top: 616 ft.    Interval Bottom: 1386 ft.

 Completed Information for Formation RATON COAL
1st Production Date:9/12/2007Choke Size:
Formation Name:RATON COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/29/2007
Treatment Summary:616-1178-ACIDIZED W/1750 GAL 15% CHI ACID. FRAC W/98,439 GAL 20# DELTA 140 W.SANDWEDGE OS CARRYING 18,600# 16/30 AND 221,484# 12/20 BRADY SAND.1211-1386' 156 HOLES FRAC W/200,000# 20/40, 50,000#12/20 AND 1,135,000 SCF N2; TUBING DEPTH 1439'.
Tubing Size:2.375 in.Tubing Setting Depth:2267 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/12/2007Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 60
BBLS_OIL 0
CALC_BBLS_H2O 60
CALC_BBLS_OIL 0
CALC_MCF_GAS 25
CASING_PRESS 3
MCF_GAS 25
TUBING_PRESS 4
Perforation Data:
Interval Top:616 ft.# Of Holes:44
Interval Bottom:1386 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)13342
GOR
GOR DeterminationMCFE
Average BOE per Day6.298
Average MCFE per Day36.549

 Federal Financial Assurance  i

 Tribal Well  i No
