COGIS - WELL SCOUT CARD

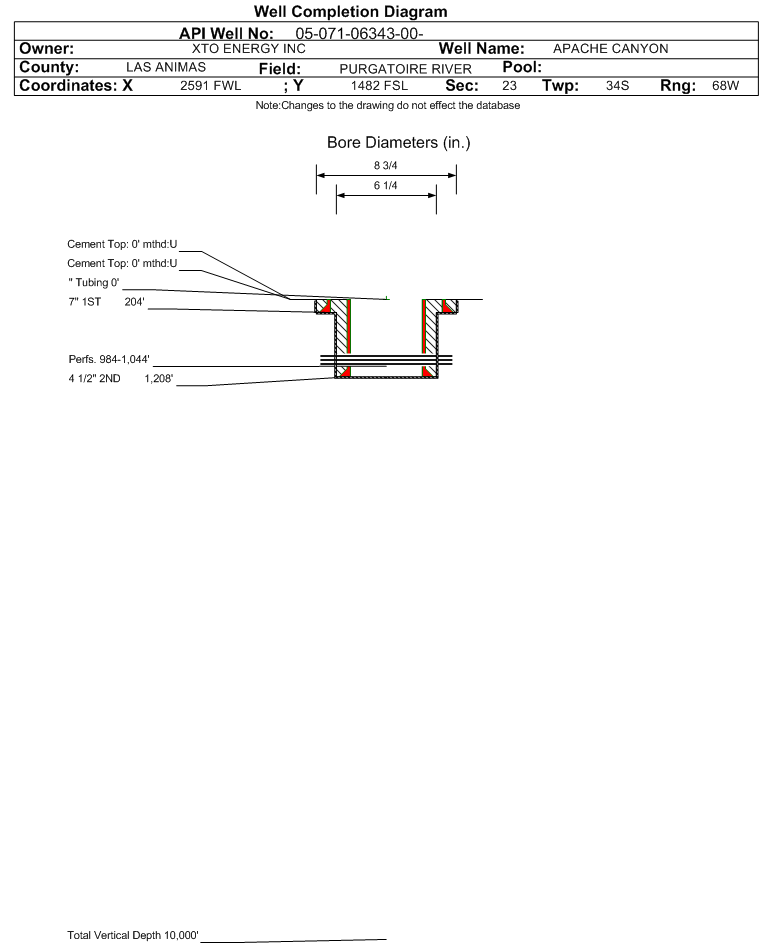

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06343		Well Classification: GW Status: PA - 7/31/2023
Well Name/No:APACHE CANYON #23-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/31/2023
FacilityID:217566LocationID:307378
County:LAS ANIMAS #071Location:NESW 23 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:7496 ft.
Basin:RATON BASIN
Planned Location:1482FSL  2591 FWLLat/Long: 37.067134 / -104.965921Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.067150 / -104.965940Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 7/31/2023             Measured TD: 1220 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 7/31/2023
Wellbore Permit
Permit #:960449 Expiration Date:6/6/1997
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: 0 , Unit Acreage: 160, Drill Unit: SW4
Wellbore Completed
Completion Date:6/24/1996
Measured TD:1220 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 204 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 70, Top: 0 ft., Bottom: 204 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 1208 ft., Weight: 9.5 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: 1208 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 204 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 70, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 1208 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.
VERMEJO COAL975 ft.

Formation VRMJ                     Formation Classification:  GW                     Status:  AB - 7/31/2023                 Interval Top: 984 ft.    Interval Bottom: 1044 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/3/2003
Treatment Summary:Status Change Only
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation VRMJ.
Perforation Data:
Interval Top:984 ft.# Of Holes:24
Interval Bottom:1044 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/31/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
