COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06338		Well Classification: GW Status: SI - 10/1/2017
Well Name/No:APACHE CANYON #14-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date10/1/2017
FacilityID:217561LocationID:307374
County:LAS ANIMAS #071Location:NENW 14 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:8040 ft.
Basin:RATON BASIN
Planned Location:301FNL  2305 FWLLat/Long: 37.091143 / -104.966672Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.091130 / -104.966700Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 10/1/2017             Measured TD: 1800 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 10/1/2017
Wellbore Permit
Permit #:19960442 Expiration Date:6/6/1997
Proposed Depth/Form:1900 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/28/1996
Spud Date:6/10/1996Spud Date Is:ACTUAL
Measured TD:1800 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:CDNL, DIL, CBL

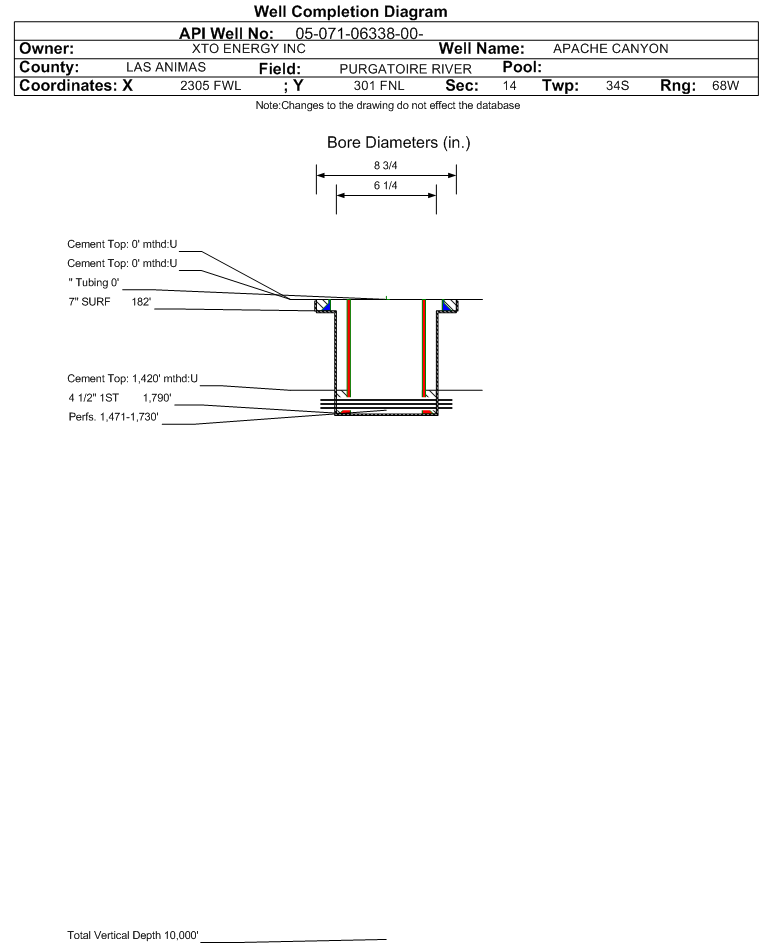

Casing:String Type: SURF, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 182 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 18, Top: 0 ft., Bottom: 182 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 1790 ft., Weight: 9.5 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 1420 ft., Bottom: 1790 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 780 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 110, Top: 0 ft., Bottom: 980 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.NN
VERMEJO COAL1428 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  SI - 9/1/2014                  Interval Top: 1471 ft.    Interval Bottom: 1730 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:7/20/1996Choke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/28/1996
Treatment Summary:SEE SCANNED DOCUMENT # 00637358
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 60
CALC_BBLS_H2O 60
CALC_MCF_GAS 85
MCF_GAS 85
Perforation Data:
Interval Top:1471 ft.# Of Holes:124
Interval Bottom:1730 ft.Hole Size:0.375 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
08/31/2014
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
