COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06300		Well Classification: CBM Status: PR - 10/1/2017
Well Name/No:APACHE CANYON #16-8
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:26922
Facility Status:PRStatus Date10/1/2017
FacilityID:217523LocationID:307348
County:LAS ANIMAS #071Location:SENE 16 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7140 ft.
Basin:RATON BASIN
Planned Location:1322FNL  507 FELLat/Long: 37.087624 / -104.886389Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.087570 / -104.886430Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 10/1/2017             Measured TD: 1529 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 10/1/2017
Wellbore Permit
Permit #:960474 Expiration Date:6/12/1997
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: 0 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:2/7/1997
Measured TD:1529 ft.Measured PB depth:1522 ft.
True Vertical TD:0 ft.True Vertical PB depth:

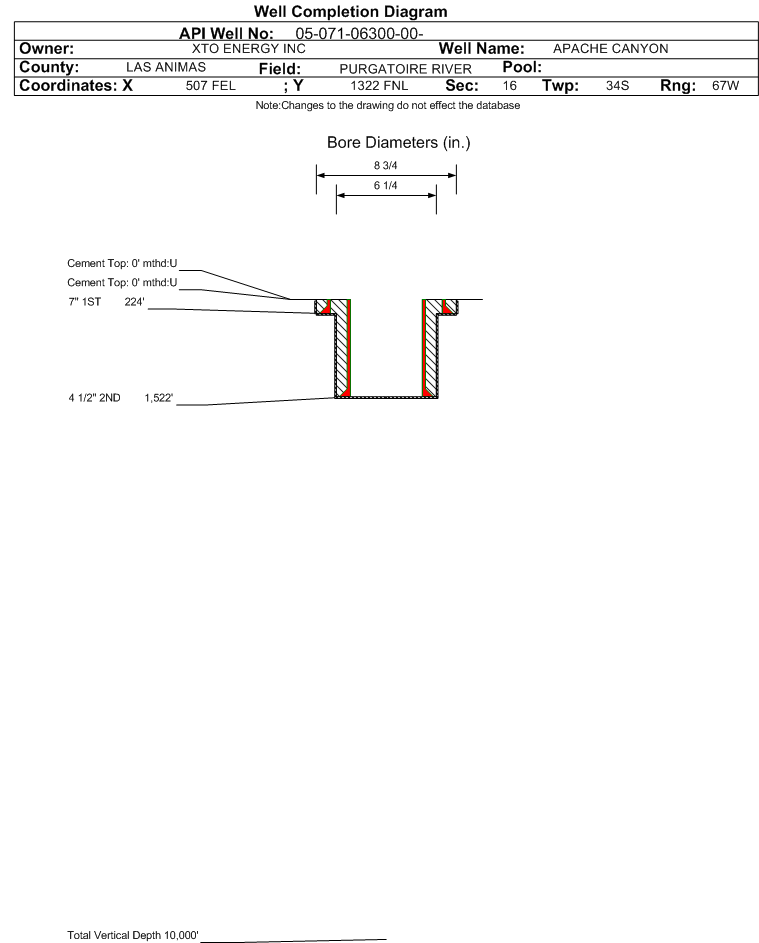

Casing:String Type: SURF, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 224 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 55, Top: 0 ft., Bottom: 224 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 1522 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 1522 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
VERMEJO COAL1236 ft.

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 10/1/2017                 Interval Top: 1236 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:VERMEJO COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation VRMJ.
No Perforation Data was found for formation VRMJ.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)9203
GOR
GOR DeterminationMCFE
Average BOE per Day4.351
Average MCFE per Day25.217

 Federal Financial Assurance  i

 Tribal Well  i No
