COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06263		Well Classification: CBM Status: PA - 1/25/2005
Well Name/No:HILL RANCH #33-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:26926
Facility Status:PAStatus Date1/25/2005
FacilityID:217486LocationID:312064
County:LAS ANIMAS #071Location:NWNW 33 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8024 ft.
Planned Location:601FNL  697 FWLLat/Long: 37.046424 / -104.899399Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.046370 / -104.899380Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PA - 1/25/2005             Measured TD: 2350 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PA - 1/25/2005
Wellbore Permit
Permit #:960451 Expiration Date:6/6/1997
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RT-VJ , Formation: RATON-VERMEJO COALS , Order: 0 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:9/30/1996
Measured TD:2350 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

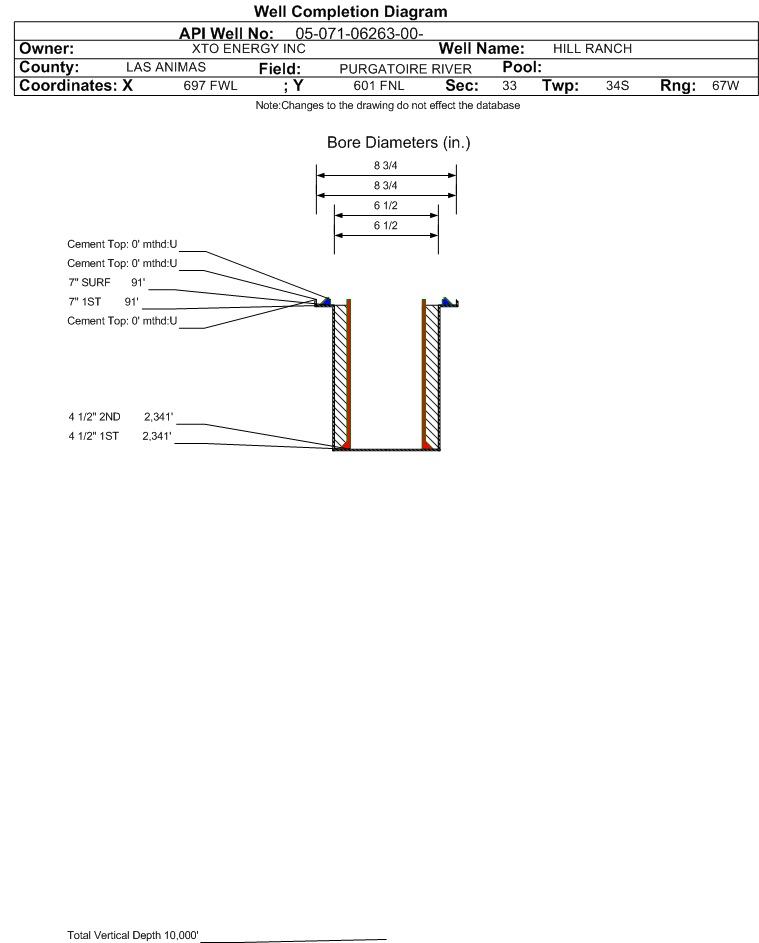

Casing:String Type: SURF, Hole Size: 8.75 in., Size: 7 in., Top: , Depth: 91 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 10, Top: 0 ft., Bottom: 91 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 6.5 in., Size: 4.5 in., Top: , Depth: 2341 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 295, Top: 0 ft., Bottom: 2341 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 91 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 10, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: 6.5 in., Size: 4.5 in., Top: 0 ft., Depth: 2341 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL315 ft.
VERMEJO COAL2037 ft.

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 1/25/2005                 Interval Top: 2037 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation VRMJ.
No Perforation Data was found for formation VRMJ.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 1/25/2005                 Interval Top: 315 ft.

 Completed Information for Formation RATON COAL
1st Production Date:N/AChoke Size:
Formation Name:RATON COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RTON.
No Perforation Data was found for formation RTON.

Formation RT-VJ                   Formation Classification:  GW                   Status:  AB - 1/25/2005

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:RATON-VERMEJO COALSCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RT-VJ.
No Perforation Data was found for formation RT-VJ.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/25/2005
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
