COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06261		Well Classification: CBM Status: PR - 2/11/2003
Well Name/No:HILL RANCH #29-14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:26926
Facility Status:PRStatus Date2/11/2003
FacilityID:217484LocationID:333804
County:LAS ANIMAS #071Location:SESW 29 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8170 ft.
Planned Location:1000FSL  2086 FWLLat/Long: 37.050554 / -104.912880Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.050530 / -104.912850Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 2/11/2003             Measured TD: 2385 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 2/11/2003
Wellbore Permit
Permit #:960450 Expiration Date:6/6/1997
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: 0 , Unit Acreage: 160, Drill Unit: SW4

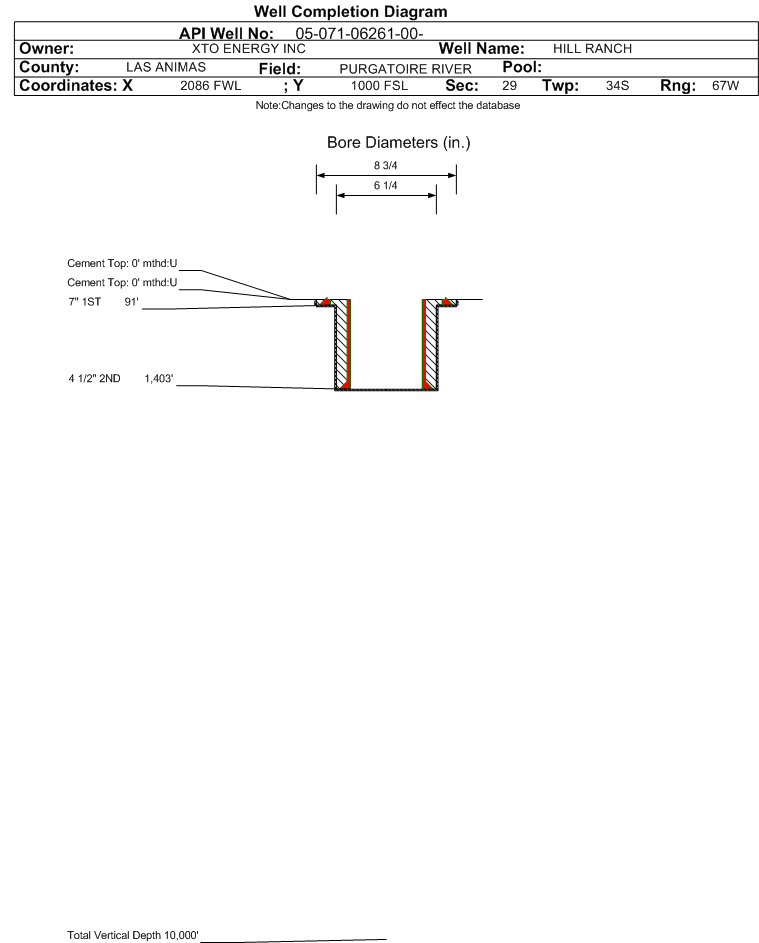

Wellbore Completed
Completion Date:9/10/1996
Measured TD:2385 ft.Measured PB depth:1366 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 91 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 10, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 1403 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL400 ft.
VERMEJO COAL2180 ft.

Formation RTON                     Formation Classification:  GW                     Status:  PR - 2/11/2003                 Interval Top: 400 ft.

 Completed Information for Formation RATON COAL
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:RATON COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RTON.
No Perforation Data was found for formation RTON.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)5684
GOR
GOR DeterminationMCFE
Average BOE per Day2.682
Average MCFE per Day15.570

 Federal Financial Assurance  i

 Tribal Well  i No
