COGIS - WELL SCOUT CARD

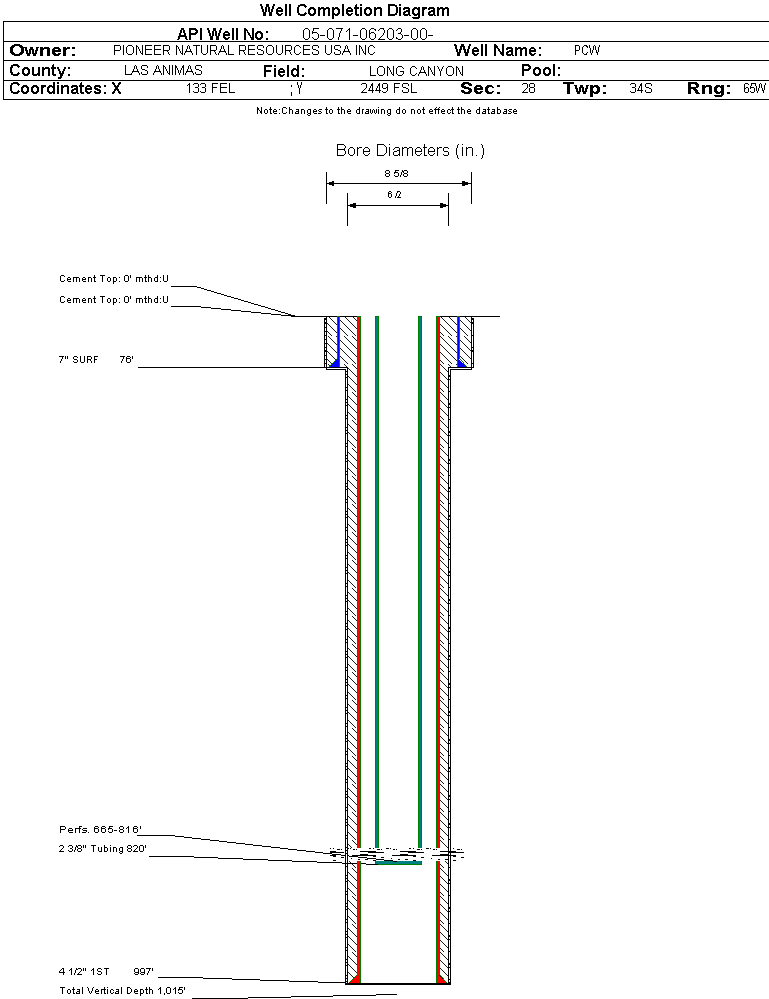

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06203		Well Classification: CBM Status: PR - 1/1/2021
Well Name/No:PCW #43-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:EVERGREEN NATURAL RESOURCES LLC - 10705
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2021
FacilityID:217426LocationID:307306
County:LAS ANIMAS #071Location:NESE 28 34S65W 6
Field:PURGATOIRE RIVER - #70830Elevation:6785 ft.
Basin:RATON BASIN
Planned Location:2449FSL  133 FELLat/Long: 37.055175 / -104.667882Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.055080 / -104.667560Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/1/2021             Measured TD: 1015 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/1/2021
Wellbore Permit
Permit #:19941025 Expiration Date:2/5/1995
Proposed Depth/Form:1050 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:10/6/1994
Spud Date:8/29/1994Spud Date Is:ACTUAL
Measured TD:1015 ft.Measured PB depth:970 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, CCL, GAMMA RAY, DENSITY/NEUTRON LOGS
Casing:String Type: SURF, Hole Size: 8.625 in., Size: 7 in., Top: 0 ft., Depth: 76 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 10, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 6.025 in., Size: 4.5 in., Top: 0 ft., Depth: 997 ft., Weight: 9.5 , Citings Type: ACTUAL
Cement:Sacks: 85, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.550 ft.NN
VERMEJO COAL550 ft.882 ft.NN
TRINIDAD882 ft.983 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 1/1/2021                  Interval Top: 665 ft.    Interval Bottom: 816 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:9/19/1994Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:10/6/1994
Treatment Summary:53,781 GAL FLUID; 154,000 SCF NITROGEN; 106,000# 12/20 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:820 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/13/1994Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 119
CALC_BBLS_H2O 119
CALC_MCF_GAS 25
CASING_PRESS 10
MCF_GAS 25
Perforation Data:
Interval Top:665 ft.# Of Holes:112
Interval Bottom:816 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)5681
GOR
GOR DeterminationMCFE
Average BOE per Day2.685
Average MCFE per Day15.567

 Federal Financial Assurance  i

 Tribal Well  i No
