COGIS - WELL SCOUT CARD

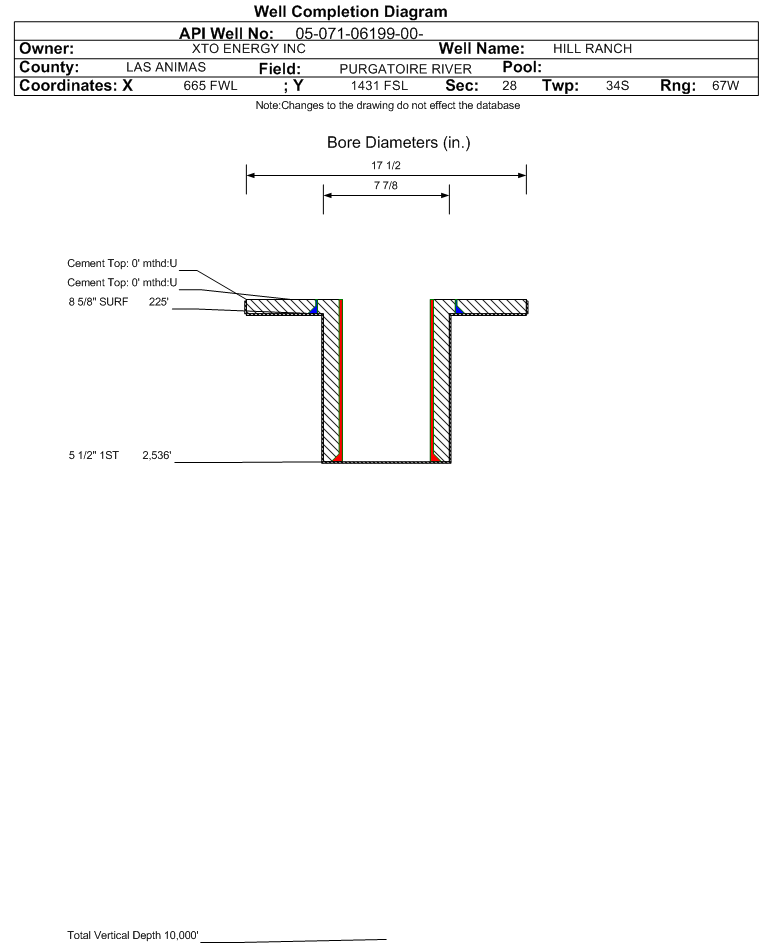

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06199		Well Classification: CBM Status: PR - 1/1/2015
Well Name/No:HILL RANCH #28-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:26926
Facility Status:PRStatus Date1/1/2015
FacilityID:217422LocationID:312082
County:LAS ANIMAS #071Location:NWSW 28 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8125 ft.
Basin:RATON BASIN
Planned Location:1431FSL  665 FWLLat/Long: 37.051994 / -104.899629Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.051920 / -104.899590Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/1/2015             Measured TD: 2536 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/1/2015
Wellbore Permit
Permit #:940872 Expiration Date:1/15/1995
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: 0 , Unit Acreage: 160, Drill Unit: SW4
Wellbore Completed
Completion Date:8/5/1996
Measured TD:2536 ft.Measured PB depth:1700 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 17.5 in., Size: 8.625 in., Top: 0 ft., Depth: 225 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2536 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL331 ft.
VERMEJO COAL2176 ft.
TRINIDAD2483 ft.

Formation RTON                     Formation Classification:  GW                     Status:  PR - 1/1/2015                  Interval Top: 331 ft.

 Completed Information for Formation RATON COAL
1st Production Date:N/AChoke Size:308.000 in.
Formation Name:RATON COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RTON.
No Perforation Data was found for formation RTON.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)6614
GOR
GOR DeterminationMCFE
Average BOE per Day3.123
Average MCFE per Day18.122

 Federal Financial Assurance  i

 Tribal Well  i No
