COGIS - WELL SCOUT CARD

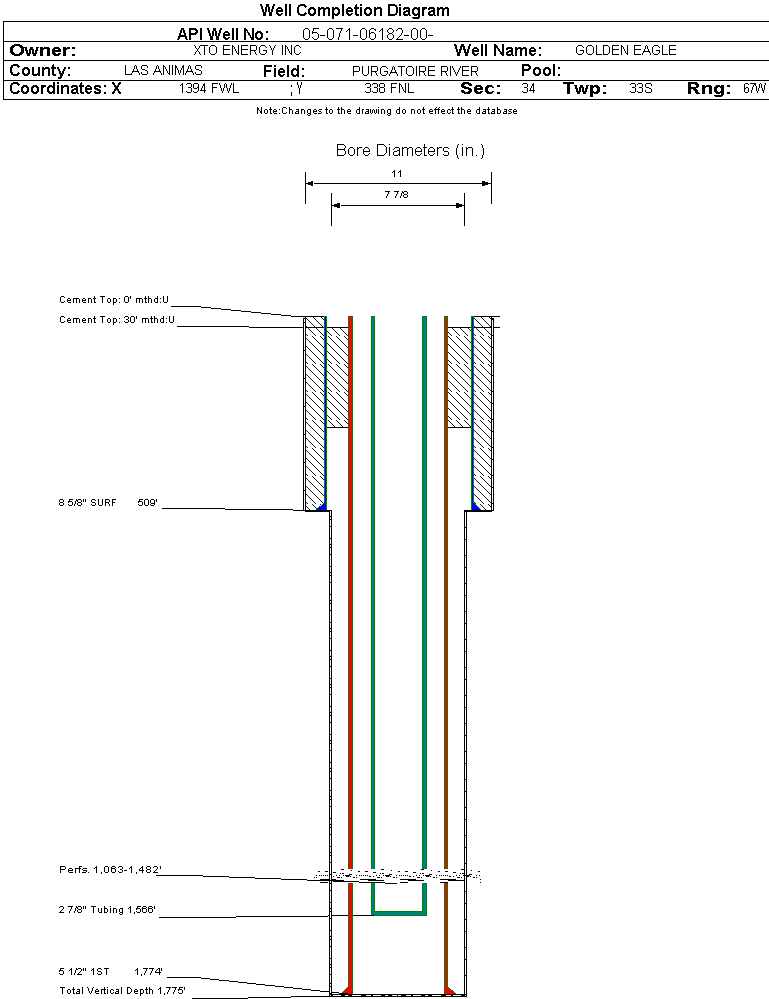

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06182		Well Classification: CBM Status: PR - 11/2/2007
Well Name/No:GOLDEN EAGLE #34-03
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/2/2007
FacilityID:217405LocationID:307294
County:LAS ANIMAS #071Location:NENW 34 33S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7220 ft.
Basin:RATON BASIN
Planned Location:338FNL  1394 FWLLat/Long: 37.134883 / -104.878829Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.134870 / -104.878830Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 11/2/2007             Measured TD: 1775 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 11/2/2007
Wellbore Permit
Permit #:19901167 Expiration Date:2/8/1991
Proposed Depth/Form:1900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RT-VJ , Formation: RATON-VERMEJO COALS , Order: , Unit Acreage: 160, Drill Unit:
Wellbore Completed
Completion Date:7/13/2004
Spud Date:3/20/2004Spud Date Is:ACTUAL
Measured TD:1775 ft.Measured PB depth:1761 ft.
True Vertical TD:True Vertical PB depth:
Log Types:EPITHERMAN NEUTRON LITHO-DENSITY, INDUCTION W/ LINEAR EST, CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 509 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 216, Top: 0 ft., Bottom: 509 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1774 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 291, Top: 30 ft., Bottom: 291 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1190 ft.NN
VERMEJO COAL1190 ft.1568 ft.NN
TRINIDAD1568 ft.1779 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 12/1/2005                 Interval Top: 1190 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation VRMJ.
No Perforation Data was found for formation VRMJ.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 11/2/2007                 Interval Top: 1063 ft.    Interval Bottom: 1482 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:7/15/2004Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:
Production Method:30N095 - PC PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:7/13/2004
Treatment Summary:PERFORATION: 1479-82', 1402-04 (4 SPF-24 HOLES) FRAC 1ST STAGE: FRAC W/ 64,085 GALS DELTA 140, 28,900 12/20, 74,720# 16/30 BRANDY SAND, 1525 BLWTR. PERFORATION: 1268-72' (4 SPF-16 HOLES) FRAC 2ND STAGE: FRAC W/ 48,592 GALS DELTA 140, 18,470# 16/30, 46,820# 12/20 BRADY SAND ,1150 BLWTR. PERFORATION: 1176-83', 1171-73', 1159-63, 1145-53', 1129-32', 1106-12',( 4 SPF-60 HOLES) FRAC 3RD STAGE: FRAC W/ 37,551 GALS DELTA 140, 104,690# 16/30, & 43,600# 12/20 BRADY SAND, 849 BLWTR. PERFORATION: 1063-68' (4 SPF-20 HOLES) FRAC 4TH STAGE4: FRAC W/ 42,207, GALS DELTA 140, 17,930# 16/30, & 36,920# 12/20 BRADY SAND, 1004 BLWTR.
Tubing Size:2.875 in.Tubing Setting Depth:1566 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/15/2004Test Method:FLOW
Hours Tested:18Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 55
BBLS_OIL 0
BTU_GAS 1002
CALC_BBLS_H2O 73
CALC_BBLS_OIL 0
CALC_MCF_GAS 0
CASING_PRESS 55
MCF_GAS 0
TUBING_PRESS 1
Perforation Data:
Interval Top:1063 ft.# Of Holes:120
Interval Bottom:1482 ft.Hole Size:

Formation RTON                     Formation Classification:  GW                     Status:  CM - 11/2/2007

 Completed Information for Formation RATON COAL
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:RATON COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RTON.
No Perforation Data was found for formation RTON.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)16416
GOR
GOR DeterminationMCFE
Average BOE per Day7.754
Average MCFE per Day44.963

 Federal Financial Assurance  i

 Tribal Well  i No
