COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06139		Well Classification: CBM Status: PR - 1/1/2021
Well Name/No:APACHE CANYON #21-16
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:26922
Facility Status:PRStatus Date1/1/2021
FacilityID:217363LocationID:307285
County:LAS ANIMAS #071Location:SESE 21 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8110 ft.
Planned Location:915FSL  1034 FELLat/Long: 37.065104 / -104.887669Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.065040 / -104.887620Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/1/2021             Measured TD: 2685 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/1/2021
Wellbore Permit
Permit #:890682 Expiration Date:12/20/1989
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: 0 , Unit Acreage: 640, Drill Unit: ALL

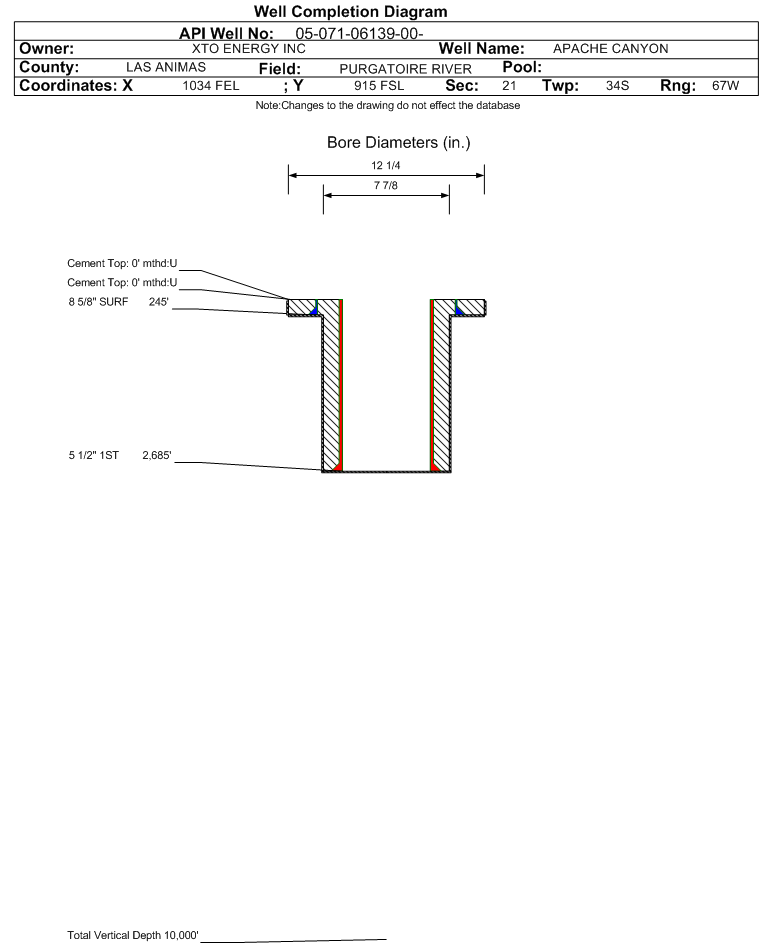

Wellbore Completed
Completion Date:12/12/1989
Measured TD:2685 ft.Measured PB depth:2610 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 245 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2685 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL344 ft.
VERMEJO COAL2130 ft.
TRINIDAD2476 ft.
PIERRE2596 ft.

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 1/1/2021                  Interval Top: 2130 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:VERMEJO COALCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation VRMJ.
No Perforation Data was found for formation VRMJ.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)13883
GOR
GOR DeterminationMCFE
Average BOE per Day6.571
Average MCFE per Day38.073

 Federal Financial Assurance  i

 Tribal Well  i No
