COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06137		Well Classification: CBM Status: PA - 6/14/2012
Well Name/No:APACHE CANYON #7-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/14/2012
FacilityID:217361LocationID:312066
County:LAS ANIMAS #071Location:NENE 7 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7580 ft.
Basin:RATON BASIN
Planned Location:984FNL  657 FELLat/Long: 37.103273 / -104.922540Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.103230 / -104.922790Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PA - 6/14/2012             Measured TD: 2127 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PA - 6/14/2012
Wellbore Permit
Permit #:19890680 Expiration Date:12/20/1989
Proposed Depth/Form:2400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RT-VJ , Formation: RATON-VERMEJO COALS , Order: , Unit Acreage: 640, Drill Unit:
Wellbore Completed
Completion Date:3/11/1990
Spud Date:10/20/1989Spud Date Is:ACTUAL
Measured TD:2127 ft.Measured PB depth:2080 ft.
True Vertical TD:True Vertical PB depth:
Log Types:ML; DIL/SFL-GR; LDT; CNTG
Log Types:

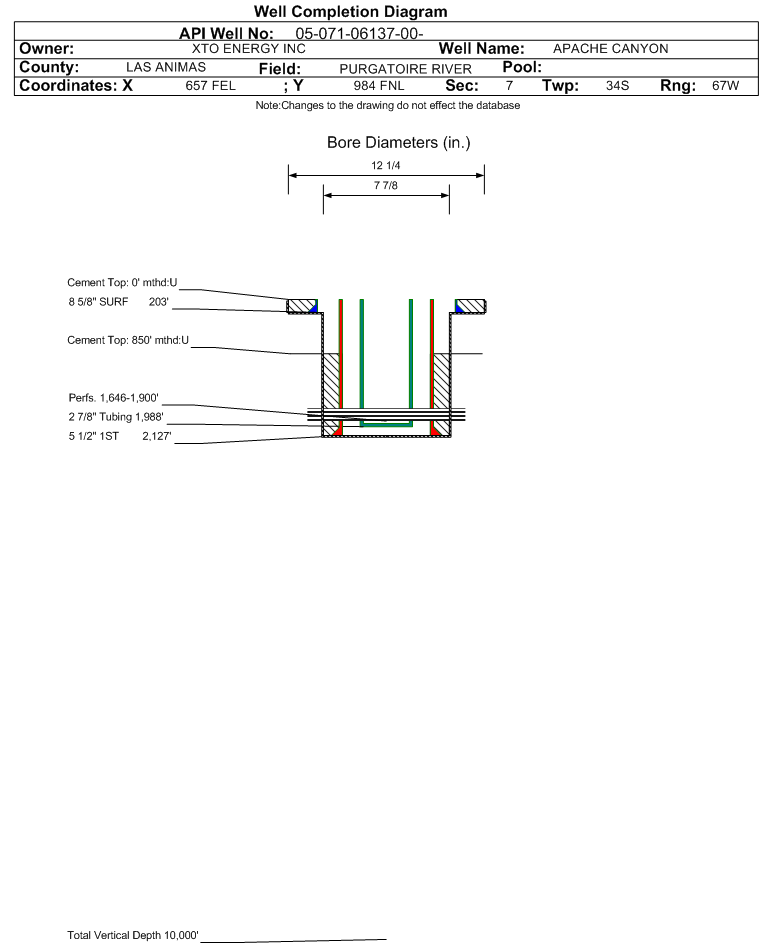

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 203 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: 203 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2127 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 470, Top: 850 ft., Bottom: 2127 ft., Determination Method:
Additional Cement:String Type: SURF , Top: 0 ft., Depth: , Bottom: 856 ft., Sacks: 52, Method: 1 INCH
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1568 ft.YN
VERMEJO COAL1568 ft.1926 ft.YN
TRINIDAD1926 ft.YN

Formation VRMJ                     Formation Classification:  GW                     Status:  AB - 6/14/2012                 Interval Top: 1646 ft.    Interval Bottom: 1900 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:3/12/1990Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/11/1990
Treatment Summary:SEE SCANNED DOCUMENT # 00599103
Tubing Size:2.875 in.Tubing Setting Depth:1988 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/21/1990Test Method:ROD PUMP
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 626
CASING_PRESS 5
MCF_GAS 0
Perforation Data:
Interval Top:1646 ft.# Of Holes:150
Interval Bottom:1900 ft.Hole Size:0.7 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/14/2012
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
