COGIS - WELL SCOUT CARD

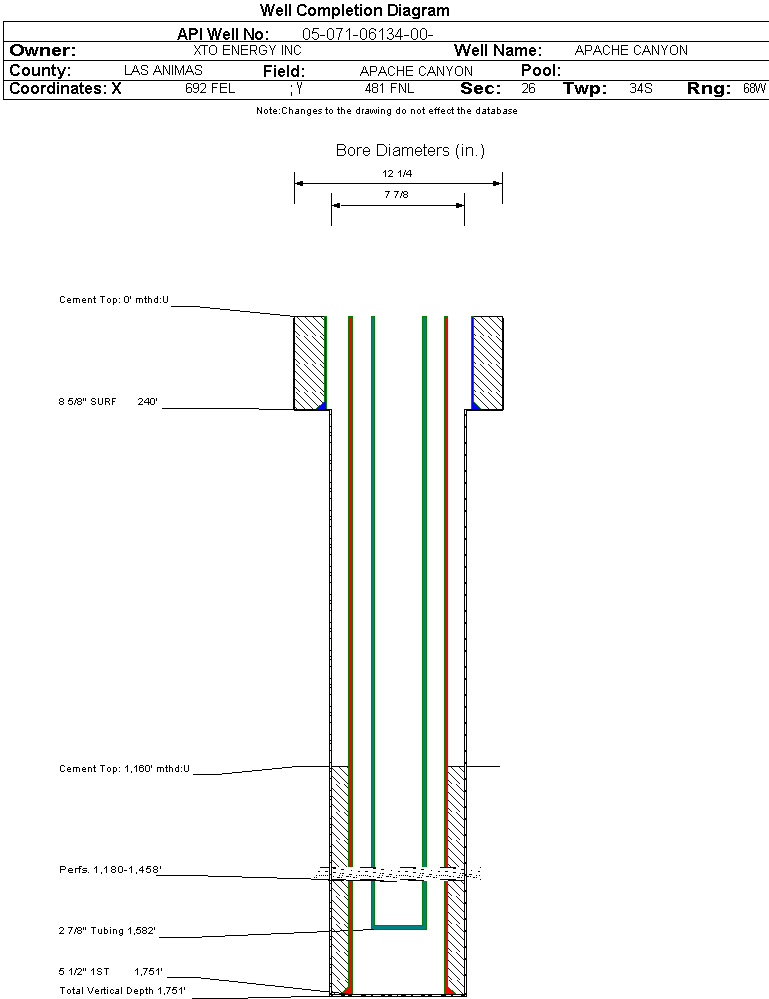

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06134		Well Classification: CBM Status: PR - 11/29/1995
Well Name/No:APACHE CANYON #26-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/29/1995
FacilityID:217358LocationID:307284
County:LAS ANIMAS #071Location:NENE 26 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:7811 ft.
Basin:RATON BASIN
Planned Location:481FNL  692 FELLat/Long: 37.061074 / -104.958061Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.061080 / -104.958110Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 11/29/1995             Measured TD: 1751 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 11/29/1995
Wellbore Permit
Permit #:19890531 Expiration Date:11/17/1989
Proposed Depth/Form:2250 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RT-VJ , Formation: RATON-VERMEJO COALS , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/19/1989
Spud Date:8/15/1989Spud Date Is:ACTUAL
Measured TD:1751 ft.Measured PB depth:1695 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CORE; LD/CNL/GR; DIL/SFL/GR; CBL/VDL/GR; CEL/CS; ML/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 240 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 190, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1751 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 440, Top: 1160 ft., Bottom: , Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.YN
VERMEJO COAL1157 ft.YN
TRINIDAD1485 ft.NN
PIERRE1593 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 11/29/1995                Interval Top: 1180 ft.    Interval Bottom: 1458 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:11/20/1989Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:ROD PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:11/19/1989
Treatment Summary:1420' SQZ 75 SX SILICALITE; 1250' SQZ 75 SX SILICALITE; 1180'-1458' F w/ 200M GAL VERMEJO, 332M# 20/40 OTTAWA, 200M# 12/20 COLO SILICA
Tubing Size:2.875 in.Tubing Setting Depth:1582 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/6/1989Test Method:
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 115
BBLS_OIL 0
CALC_BBLS_H2O 115
CALC_MCF_GAS 161
MCF_GAS 161
Perforation Data:
Interval Top:1180 ft.# Of Holes:252
Interval Bottom:1458 ft.Hole Size:0.7 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)14116
GOR
GOR DeterminationMCFE
Average BOE per Day6.667
Average MCFE per Day38.663

 Federal Financial Assurance  i

 Tribal Well  i No
