COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06131		Well Classification: CBM Status: PR - 5/1/2025
Well Name/No:APACHE CANYON #23-9
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2025
FacilityID:217355LocationID:307281
County:LAS ANIMAS #071Location:NESE 23 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:7510 ft.
Planned Location:1840FSL  758 FELLat/Long: 37.067504 / -104.958361Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.067500 / -104.958350Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 5/1/2025             Measured TD: 1505 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 5/1/2025
Wellbore Permit
Permit #:19890528 Expiration Date:11/17/1989
Proposed Depth/Form:2000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RT-VJ , Formation: RATON-VERMEJO COALS , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/10/1989
Spud Date:8/18/1989Spud Date Is:ACTUAL
Measured TD:1505 ft.Measured PB depth:1457 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DSN/LD; MICROLOG-GR; CBL/VDL/GR; CEL/SC

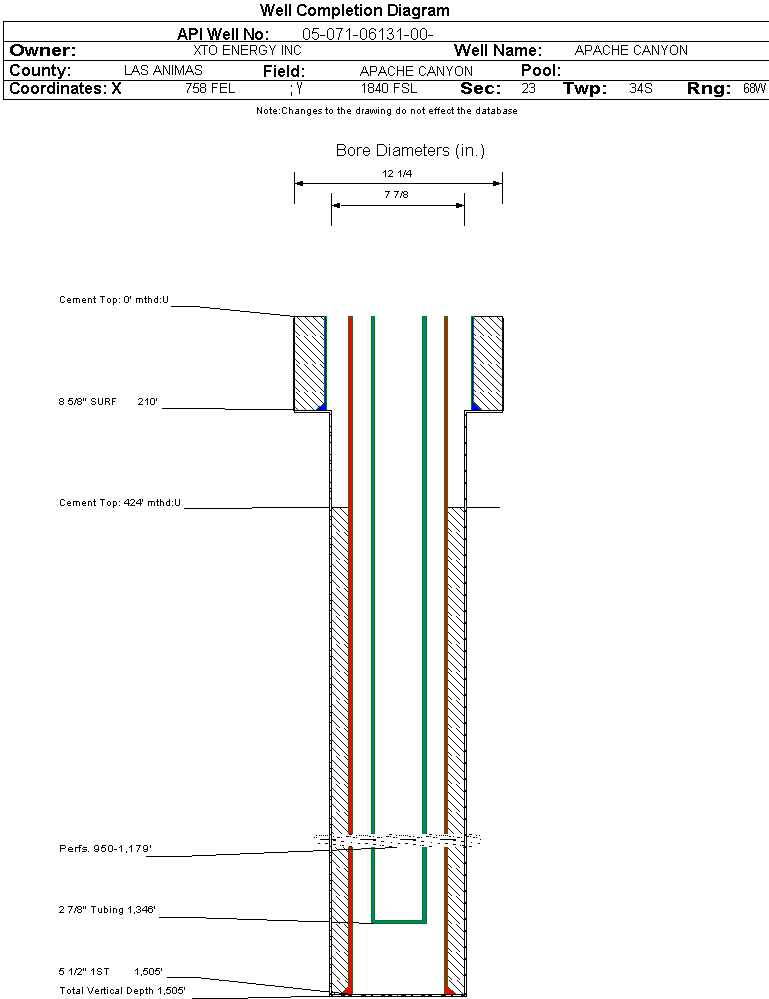

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 210 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1505 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 424 ft., Bottom: , Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.YN
VERMEJO COAL934 ft.YN
TRINIDAD1229 ft.NN
PIERRE1340 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 5/1/2025                  Interval Top: 950 ft.    Interval Bottom: 1179 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:11/12/1989Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:ROD PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:11/10/1989
Treatment Summary:SEE SCANNED DOCUMENT # 00563467
Tubing Size:2.875 in.Tubing Setting Depth:1346 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/28/1989Test Method:
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:FLARED
Test TypeMeasure
BBLS_H2O 340
BBLS_OIL 0
CALC_BBLS_H2O 340
CALC_MCF_GAS 260
CASING_PRESS 8
MCF_GAS 260
Perforation Data:
Interval Top:950 ft.# Of Holes:219
Interval Bottom:1179 ft.Hole Size:0.7 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)16444
GOR
GOR DeterminationMCFE
Average BOE per Day7.725
Average MCFE per Day44.792

 Federal Financial Assurance  i

 Tribal Well  i No
