COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06130		Well Classification: GW Status: PR - 1/1/1995
Well Name/No:APACHE CANYON #14-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/1995
FacilityID:217354LocationID:307280
County:LAS ANIMAS #071Location:NENE 14 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:7953 ft.
Basin:RATON BASIN
Planned Location:814FNL  503 FELLat/Long: 37.089173 / -104.957481Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.089150 / -104.957490Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

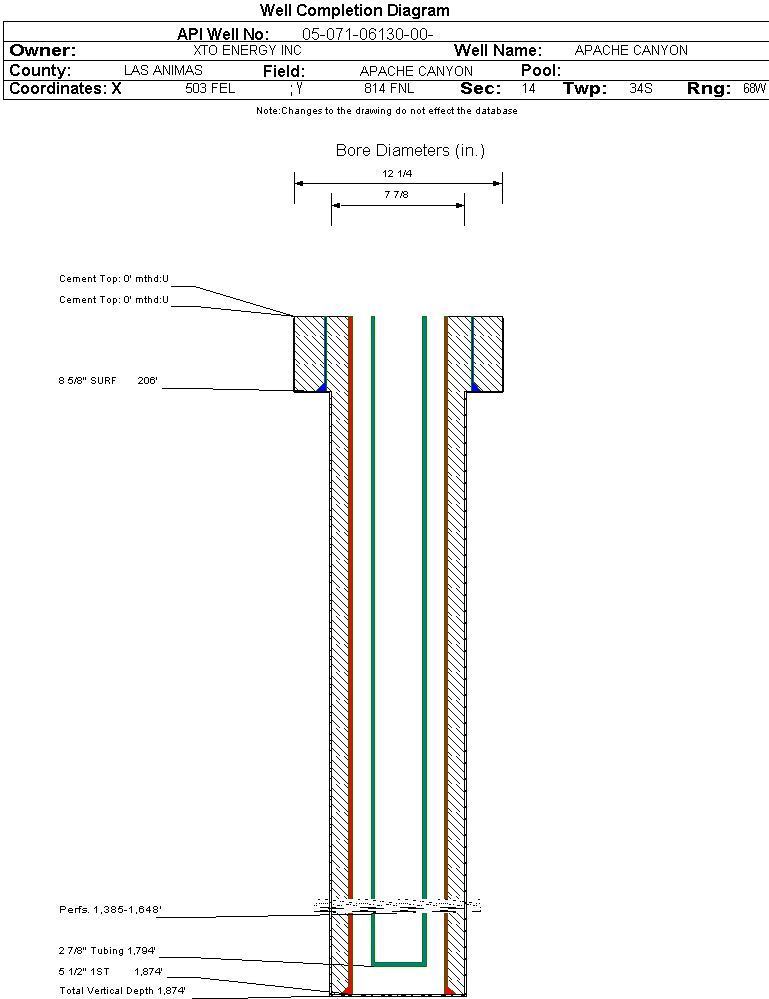

Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/1995             Measured TD: 1874 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/1995
Wellbore Permit
Permit #:19890496 Expiration Date:10/9/1989
Proposed Depth/Form:2200 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RT-VJ , Formation: RATON-VERMEJO COALS , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:1/2/1990
Spud Date:9/11/1989Spud Date Is:ACTUAL
Measured TD:1874 ft.Measured PB depth:1825 ft.
True Vertical TD:True Vertical PB depth:
Log Types:LDT/CNL/NGT; ML
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 206 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1874 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL302 ft.YN
VERMEJO COAL1326 ft.YN
TRINIDAD1653 ft.NN
PIERRE1746 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 1/1/1995                  Interval Top: 1385 ft.    Interval Bottom: 1648 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:1/2/1990Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:ROD PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:1/2/1990
Treatment Summary:SEE SCANNED DOC# 00563406
Tubing Size:2.875 in.Tubing Setting Depth:1794 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/20/1990Test Method:
Hours Tested:24Gas Type:
Gas Disposal:FLARED
Test TypeMeasure
BBLS_H2O 368
BBLS_OIL 0
CALC_BBLS_H2O 368
CALC_MCF_GAS 340
CASING_PRESS 5
MCF_GAS 340
Perforation Data:
Interval Top:1385 ft.# Of Holes:307
Interval Bottom:1648 ft.Hole Size:0.7 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)15165
GOR
GOR DeterminationMCFE
Average BOE per Day7.148
Average MCFE per Day41.486

 Federal Financial Assurance  i

 Tribal Well  i No
