Wellbore #00 Wellbore Classification: CBM Status: PR - 1/1/2022 Measured TD: 2221 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 1/1/2022 | | Wellbore Permit | | | Permit #: | 19890494 | Expiration Date: | 10/9/1989 | | Proposed Depth/Form: | 2300 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RT-VJ , Formation: RATON-VERMEJO COALS , Order: , Unit Acreage: , Drill Unit: |
| | |

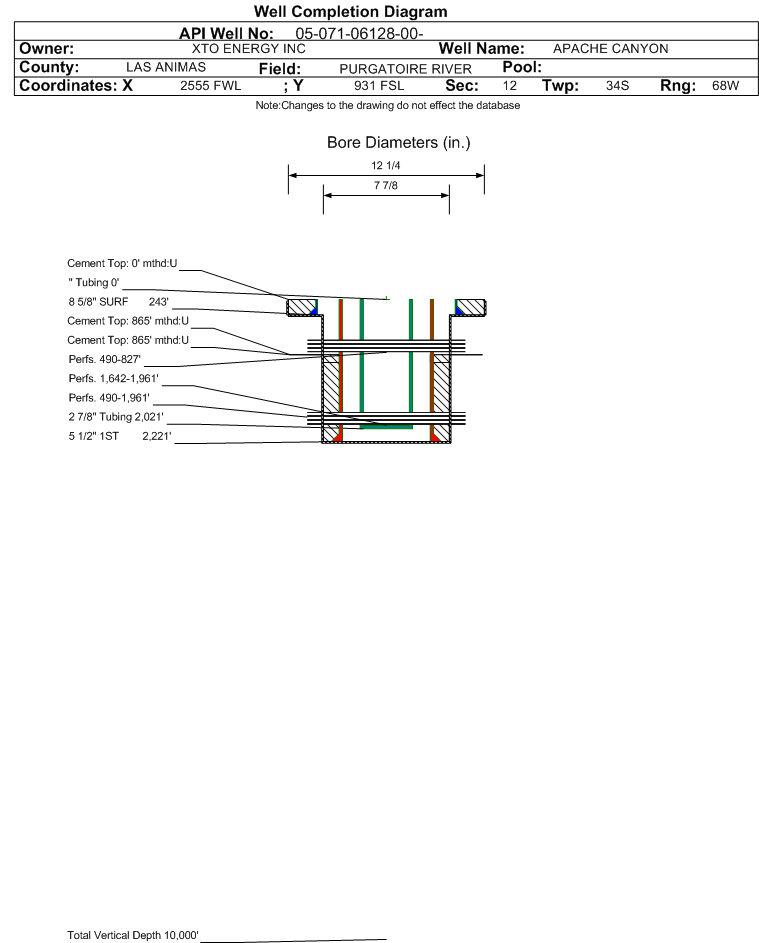

| Wellbore Completed | | Completion Date: | 12/25/1989 | | Spud Date: | 8/26/1989 | Spud Date Is: | ACTUAL | | Measured TD: | 2221 ft. | Measured PB depth: | 2122 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | LDT/CNTG; SONIC/GR; DIL/SFL; CEL; ML; PCD/NGT | | Log Types: | New CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 243 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 243 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2221 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 458, Top: 865 ft., Bottom: 2221 ft., Determination Method: | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 333, Top: 865 ft., Bottom: 985 ft., Determination Method: | | Additional Cement: | String Type: SURF , Top: 30 ft., Depth: , Bottom: 567 ft., Sacks: 185, Method: 1 INCH | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | | | | | VERMEJO COAL | 1604 ft. | | | | | TRINIDAD | 1964 ft. | | | | | PIERRE | 2062 ft. | | | |
Formation VRMJ Formation Classification: GW Status: CM - 9/12/2012 Interval Top: 1642 ft. Interval Bottom: 1961 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | 12/30/1989 | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 9/21/2012 | Treatment End Date: | N/A | | Treatment Summary: | STATUS CHANGE ONLY | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 12/25/1989 | | Treatment Summary: | SEE SCANNED DOCUMENT # 00563332 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 411 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 411 | | CALC_MCF_GAS | 25 | | CASING_PRESS | 5 | | MCF_GAS | 25 |
| | Perforation Data: | | Interval Top: | 1642 ft. | # Of Holes: | 235 | | Interval Bottom: | 1961 ft. | Hole Size: | 0.7 in. |
|
Formation RT-VJ Formation Classification: GW Status: PR - 1/1/2022 Interval Top: 490 ft. Interval Bottom: 1961 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 9/5/2012 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2021 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/5/2012 | Test Method: | Pumping | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1009 | | CALC_BBLS_H2O | 23 | | CALC_MCF_GAS | 158 | | GRAVITY_OIL | 1 | | TUBING_PRESS | 2 |
| | Perforation Data: | | Interval Top: | 490 ft. | # Of Holes: | 274 | | Interval Bottom: | 1961 ft. | Hole Size: | |
|
Formation RTON Formation Classification: GW Status: CM - 9/21/2012 Interval Top: 490 ft. Interval Bottom: 827 ft.| Completed Information for Formation RATON COAL | | 1st Production Date: | 9/5/2012 | Choke Size: | | | Formation Name: | RATON COAL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/16/2012 | Treatment End Date: | 7/16/2012 | | Treatment Summary: | Pumped 1750 gals 15% HCl acid. Frac'd w/95,637 gals 20# Delta 140 w/sandwedge OS carrying 180,840# 16/30 Brady sand. | | Total fluid used in treatment (bbls): | 2319 | Max pressure during treatment (psi): | 1483 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 2 | | Total acid used in treatment (bbls): | 42 | Min frac gradient (psi/ft): | 1.55 | | Recycled water used in treatment (bbls): | 2278 | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 180840 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PRESSURE |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation RTON. |
| | Perforation Data: | | Interval Top: | 490 ft. | # Of Holes: | 39 | | Interval Bottom: | 827 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 17271 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 8.157 |
| Average MCFE per Day | 47.319 |
| Federal Financial Assurance | i | |
|
|
