COGIS - WELL SCOUT CARD

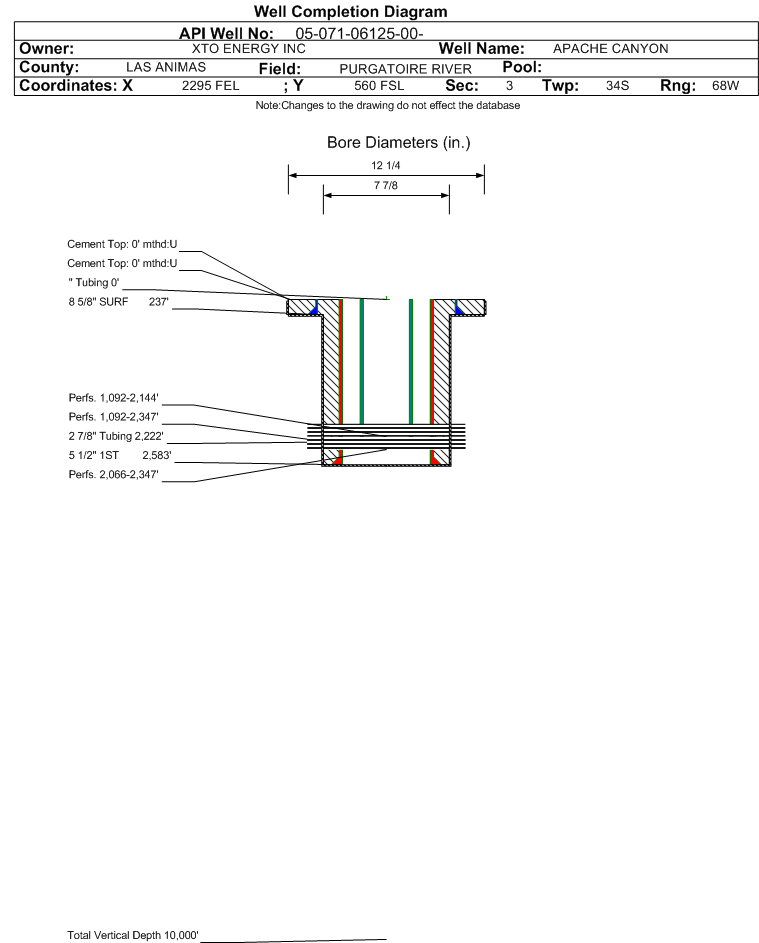

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-06125		Well Classification: CBM Status: PA - 7/11/2023
Well Name/No:APACHE CANYON #3-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/11/2023
FacilityID:217349LocationID:307275
County:LAS ANIMAS #071Location:SWSE 3 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:8539 ft.
Basin:RATON BASIN
Planned Location:560FSL  2295 FELLat/Long: 37.107213 / -104.981872Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.107190 / -104.981890Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: AB - 7/11/2023             Measured TD: 2583 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        AB - 7/11/2023
Wellbore Permit
Permit #:19890491 Expiration Date:10/9/1989
Proposed Depth/Form:2580 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: RT-VJ , Formation: RATON-VERMEJO COALS , Order: , Unit Acreage: 640, Drill Unit:
Wellbore Completed
Completion Date:6/30/1990
Spud Date:9/7/1989Spud Date Is:ACTUAL
Measured TD:2583 ft.Measured PB depth:2530 ft.
True Vertical TD:True Vertical PB depth:
Log Types:LDT/CNTG/GR; ML/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 237 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 237 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2583 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 1005 ft., Bottom: 2583 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: 5.5 in., Top: , Depth: 1212 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 0 ft., Bottom: 1212 ft., Determination Method: VISU
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.NN
VERMEJO COAL2030 ft.NN
TRINIDAD2352 ft.NN
PIERRE2464 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 3/22/1990                 Interval Top: 2066 ft.    Interval Bottom: 2347 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:1/17/1990Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:ROD PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:6/30/1990
Treatment Summary:SEE SCANNED DOC# 00563154
Tubing Size:2.875 in.Tubing Setting Depth:2222 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/22/1990Test Method:
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 325
BBLS_OIL 0
CALC_BBLS_H2O 325
CALC_BBLS_OIL 0
CALC_MCF_GAS 20
CASING_PRESS 5
MCF_GAS 20
Perforation Data:
Interval Top:2066 ft.# Of Holes:284
Interval Bottom:2347 ft.Hole Size:0.7 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  AB - 7/11/2023                 Interval Top: 1092 ft.    Interval Bottom: 2347 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:N/AChoke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/7/2008
Treatment Summary:Status Change Only
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RT-VJ.
Perforation Data:
Interval Top:1092 ft.# Of Holes:314
Interval Bottom:2347 ft.Hole Size:

Formation RTON                     Formation Classification:  GW                     Status:  CM - 8/20/1990                 Interval Top: 1092 ft.    Interval Bottom: 2144 ft.

 Completed Information for Formation RATON COAL
1st Production Date:1/17/1990Choke Size:
Formation Name:RATON COALCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:6/30/1990
Treatment Summary:SEE SCANNED DOCUMENT # 00563153
Tubing Size:2.875 in.Tubing Setting Depth:2222 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/20/1990Test Method:
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 95
BBLS_OIL 0
CALC_BBLS_H2O 95
CALC_MCF_GAS 20
MCF_GAS 20
Perforation Data:
Interval Top:1092 ft.# Of Holes:284
Interval Bottom:2144 ft.Hole Size:0.7 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/11/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
