Wellbore #00 Wellbore Classification: CBM Status: PR - 8/24/2012 Measured TD: 2600 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 8/24/2012 | | Wellbore Permit | | | Permit #: | 19890490 | Expiration Date: | 10/9/1989 | | Proposed Depth/Form: | 2600 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RT-VJ , Formation: RATON-VERMEJO COALS , Order: , Unit Acreage: 640, Drill Unit: ALL |
| | |

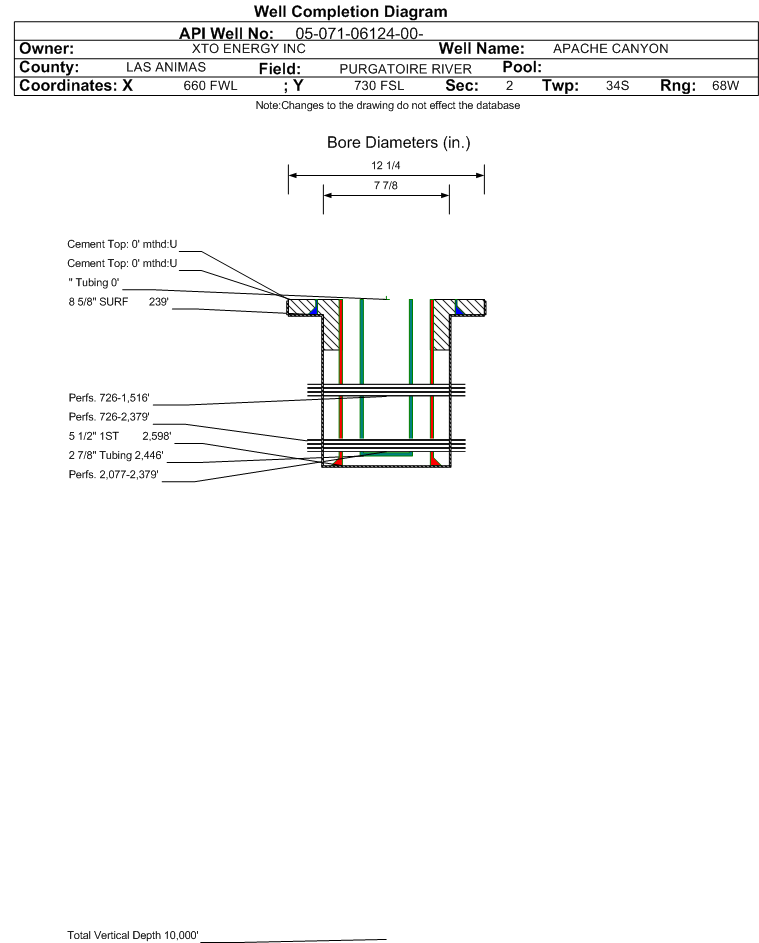

| Wellbore Completed | | Completion Date: | 1/14/1990 | | Spud Date: | 9/3/1989 | Spud Date Is: | ACTUAL | | Measured TD: | 2600 ft. | Measured PB depth: | 2520 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | LDT/CNL/ML; DIT/SFL/GR; CEL | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 239 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 239 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2598 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 405, Top: 0 ft., Bottom: 790 ft., Determination Method: | | Additional Cement: | String Type: SURF , Top: 0 ft., Depth: , Bottom: 239 ft., Sacks: 133, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | | | | | VERMEJO COAL | 2067 ft. | | | | | TRINIDAD | 2386 ft. | | | | | PIERRE | 2497 ft. | | | |
Formation VRMJ Formation Classification: GW Status: CM - 8/24/2012 Interval Top: 2077 ft. Interval Bottom: 2379 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | 3/13/1990 | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 8/27/2012 | Treatment End Date: | N/A | | Treatment Summary: | Status Change Only | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 1/14/1990 | | Treatment Summary: | SEE SCANNED DOCUMENTS 00563106 & 00563105 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 100 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 100 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 275 | | CASING_PRESS | 5 | | MCF_GAS | 275 |
| | Perforation Data: | | Interval Top: | 2077 ft. | # Of Holes: | 168 | | Interval Bottom: | 2379 ft. | Hole Size: | 0.7 in. |
|
Formation RT-VJ Formation Classification: GW Status: PR - 8/18/2012 Interval Top: 726 ft. Interval Bottom: 2379 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 8/17/2012 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2446 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/18/2012 | Test Method: | Pumping | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1003 | | CALC_BBLS_H2O | 61 | | CALC_MCF_GAS | 126 | | GRAVITY_OIL | 1 | | TUBING_PRESS | 3 |
| | Perforation Data: | | Interval Top: | 726 ft. | # Of Holes: | 258 | | Interval Bottom: | 2379 ft. | Hole Size: | |
|
Formation RTON Formation Classification: GW Status: CM - 8/27/2012 Interval Top: 726 ft. Interval Bottom: 1516 ft.| Completed Information for Formation RATON COAL | | 1st Production Date: | 8/17/2012 | Choke Size: | | | Formation Name: | RATON COAL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/13/2012 | Treatment End Date: | 7/20/2012 | | Treatment Summary: | Pumped 3,000 gals 15% HCl acid. Frac'd w/202,277 gals 20# Delta 140 w/sandwedge OS carrying 336,600# 16/30 Brady sand. | | Total fluid used in treatment (bbls): | 4888 | Max pressure during treatment (psi): | 1197 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 3 | | Total acid used in treatment (bbls): | 72 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | 4817 | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 336600 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PRESSURE |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation RTON. |
| | Perforation Data: | | Interval Top: | 726 ft. | # Of Holes: | 90 | | Interval Bottom: | 1516 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 19746 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 9.325 |
| Average MCFE per Day | 54.094 |
| Federal Financial Assurance | i | |
|
|
