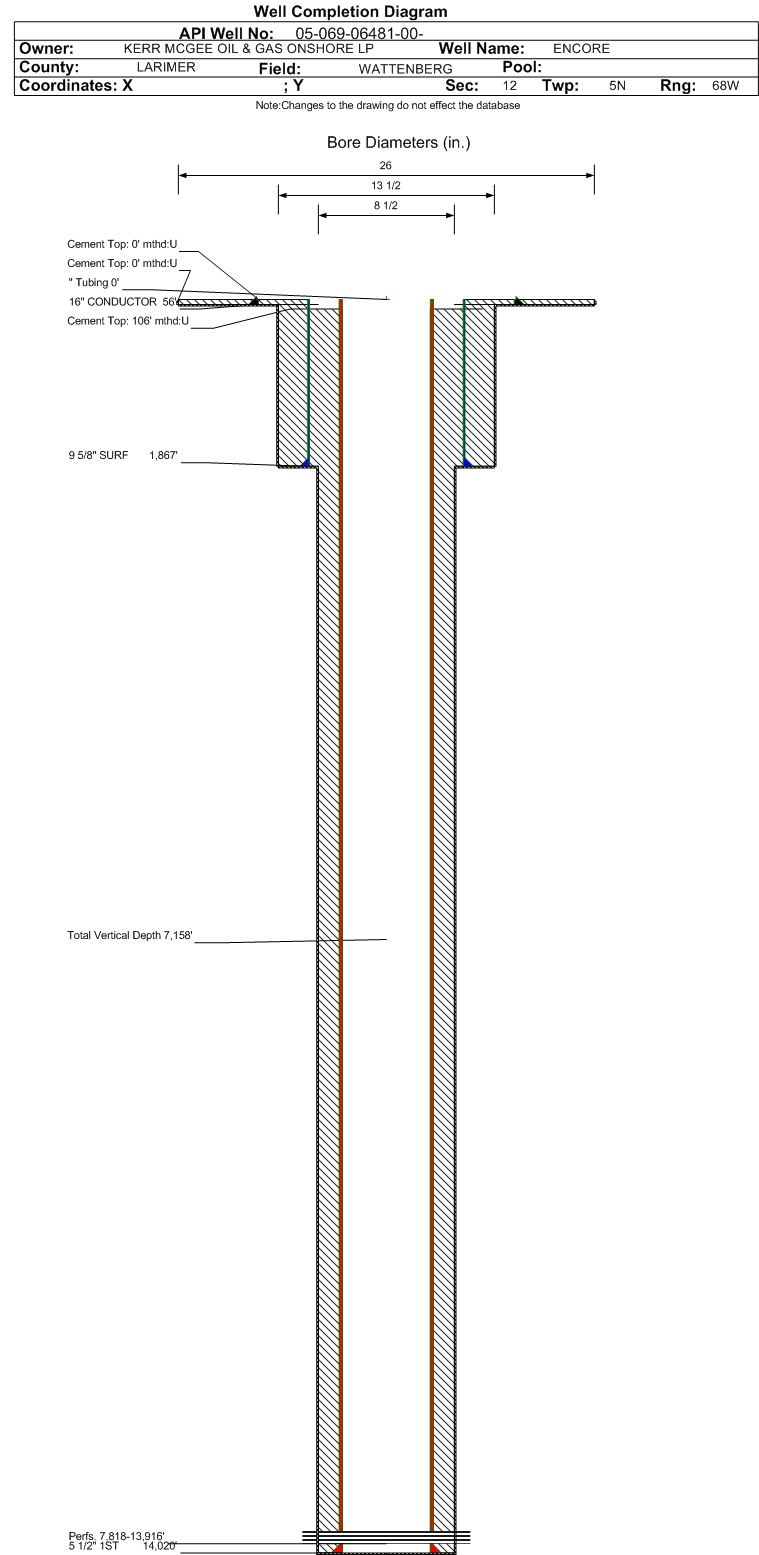

Wellbore #00 Wellbore Classification: OW Status: PR - 3/1/2025 Measured TD: 14030 ft. Vertical TD: 7158 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 3/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/5/2017 | | Proposed Top PZ Location: | Sec:11 Twp: 5N 68W | Footage: 139 FNL 751 FEL | | Bottom Hole Location: | Sec:12 Twp: 5N 68W | Footage: 42 FNL 35 FEL | | Proposed Depth/Form: | 14019 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 746 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 290, Top: 0 ft., Bottom: 746 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 14019 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1500, Top: , Bottom: 14019 ft. |
| | |
| Wellbore Completed | | Completion Date: | 8/3/2015 | | Spud Date: | 7/1/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 14030 ft. | Measured PB depth: | 13926 ft. | | True Vertical TD: | 7158 ft. | True Vertical PB depth: | 7157 ft. | | Top PZ Location: | Sec:11 Twp: 5N 68W | Footage: 139 FNL 751 FEL | | Bottom Hole Location: | Sec:12 Twp: 5N 68W | Footage: 42 FNL 35 FEL | | Log Types: | CBL, LWD/GR/RESISTIVITY | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 56 ft., Weight: 42.1 , Citings Type: ACTUAL | | Cement: | Sacks: 36, Top: 0 ft., Bottom: 56 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1867 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 719, Top: 0 ft., Bottom: 1867 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 14020 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 2000, Top: 106 ft., Bottom: 14020 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4800 ft. | | | | | SHARON SPRINGS | 7213 ft. | | | | | NIOBRARA | 7273 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 3/1/2025 Interval Top: 7818 ft. Interval Bottom: 13916 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/23/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/28/2015 | Treatment End Date: | 11/3/2015 | | Treatment Summary: | "PERF AND FRAC FROM 7818-13,916.
381 BBL ACID, 164,215 BBL SLICKWATER, 8,555 BBL WATER, - 173,151 BBL TOTAL FLUID
5,240,720# 40/70 OTTAWA/ST. PETERS, - 5,240,720# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 173151 | Max pressure during treatment (psi): | 7451 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 31 | | Total acid used in treatment (bbls): | 381 | Min frac gradient (psi/ft): | 0.86 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 1246 | | Fresh water used in treatment (bbls): | 172770 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 5240720 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/6/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 420 | | BBLS_OIL | 243 | | BTU_GAS | 1366 | | CALC_BBLS_H2O | 420 | | CALC_BBLS_OIL | 243 | | CALC_GOR | 757 | | CALC_MCF_GAS | 184 | | CASING_PRESS | 550 | | GRAVITY_OIL | 45 | | MCF_GAS | 184 |
| | Perforation Data: | | Interval Top: | 7818 ft. | # Of Holes: | 729 | | Interval Bottom: | 13916 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3053 |
| Total Gas Produced (MCF) | 1072 |
| GOR | 351 |
| GOR Determination | BOE |
| Average BOE per Day | 8.845 |
| Average MCFE per Day | 51.294 |
| Federal Financial Assurance | i | |
|
|
