Wellbore #00 Wellbore Classification: OW Status: SI - 6/1/2025 Measured TD: 7371 ft. Vertical TD: 7370 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 6/1/2025 | | Wellbore Permit | DRIFTED | | Permit #: | | Expiration Date: | 4/2/2017 | | Proposed Top PZ Location: | Sec:12 Twp: 5N 68W | Footage: 2376 FSL 370 FEL | | Bottom Hole Location: | Sec:12 Twp: 5N 68W | Footage: 2376 FSL 370 FEL | | Proposed Depth/Form: | 13514 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 704 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 270, Top: 0 ft., Bottom: 704 ft. | | Casing: | String Type: OPEN HOLE, Hole Size: , Size: , Top: 704 ft., Depth: 7314 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

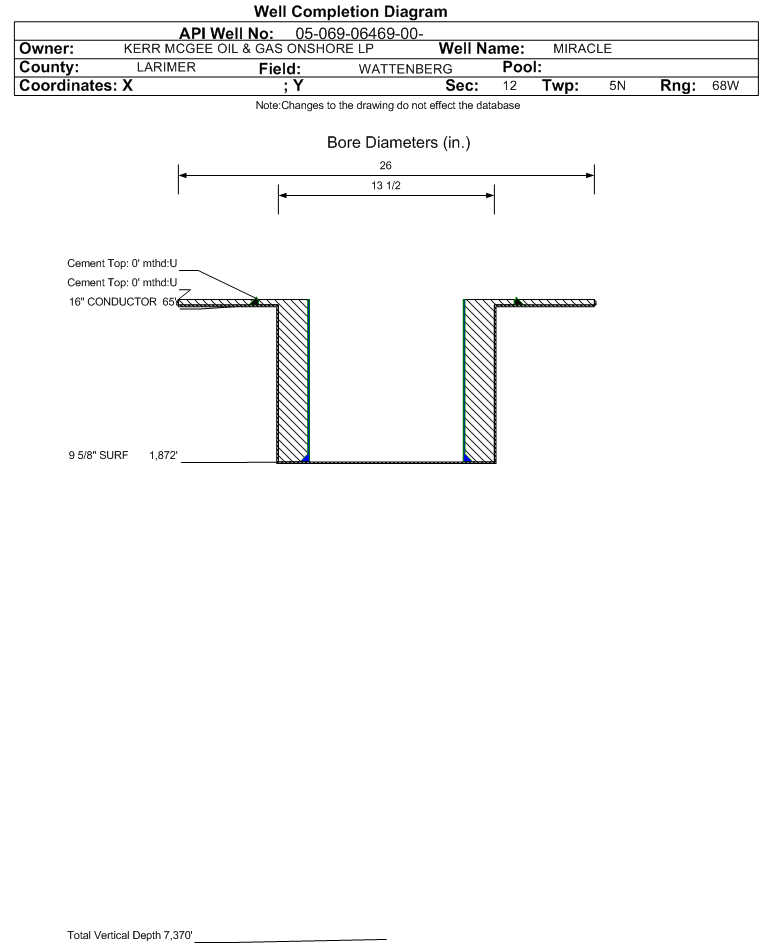

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 6/28/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 7371 ft. | Measured PB depth: | 1637 ft. | | True Vertical TD: | 7370 ft. | True Vertical PB depth: | 1637 ft. | | Bottom Hole Location: | Sec:12 Twp: 5N 68W | Footage: 2376 FSL 370 FEL | | Log Types: | MUD, DPT, LITHOLOGY, CALI/CV, CNL, HNGS, PEX TRIPLE COMBO, (IND in 05-069-06413, 05-069-06401, 05-069-06402, CNL in 05-069-06470) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 65 ft., Weight: 42.1 , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: 0 ft., Bottom: 65 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1872 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 719, Top: 0 ft., Bottom: 1872 ft., Determination Method: VISU | | Additional Cement: | String Type: OPEN HOLE , Top: 6492 ft., Depth: 6492 ft., Bottom: 7371 ft., Sacks: 350, Method: | | Additional Cement: | String Type: OPEN HOLE , Top: 4333 ft., Depth: 4333 ft., Bottom: 5083 ft., Sacks: 320, Method: | | Additional Cement: | String Type: OPEN HOLE , Top: 1637 ft., Depth: 1637 ft., Bottom: 2337 ft., Sacks: 350, Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4575 ft. | | | | | SHARON SPRINGS | 7008 ft. | | | | | NIOBRARA | 7056 ft. | | | | | FORT HAYS | 7200 ft. | | | | | CODELL | 7216 ft. | | | | | CARLILE | 7240 ft. | | | | | No formation data to display. |
Sidetrack #01 Wellbore Classification: OW Status: PR - 10/1/2025 Measured TD: 13628 ft. Vertical TD: 7212 ft.| Wellbore Data for Sidetrack #01 | Wellbore Classification: OW PR - 10/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/6/2017 | | Proposed Top PZ Location: | Sec:12 Twp: 5N 68W | Footage: 2449 FSL 75 FEL | | Bottom Hole Location: | Sec:11 Twp: 5N 68W | Footage: 2560 FSL 499 FEL | | Proposed Depth/Form: | 13514 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 704 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 270, Top: 0 ft., Bottom: 704 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 13514 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1500, Top: 0 ft., Bottom: 13514 ft. |
| | |
| Wellbore Completed | | Completion Date: | 7/18/2015 | | Spud Date: | 6/28/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 13628 ft. | Measured PB depth: | 13532 ft. | | True Vertical TD: | 7212 ft. | True Vertical PB depth: | 7213 ft. | | Top PZ Location: | Sec:12 Twp: 5N 68W | Footage: 2465 FSL 114 FEL | | Bottom Hole Location: | Sec:11 Twp: 5N 68W | Footage: 2580 FSL 500 FEL | | Log Types: | CBL, LWD/GR, MUD, (IND in 05-069-06413, 05-069-06401, 05-069-06402, CNL in 05-069-06470) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 65 ft., Weight: 42.1 , Citings Type: ACTUAL | | Cement: | Sacks: 36, Top: 0 ft., Bottom: 65 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1872 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 719, Top: 0 ft., Bottom: 1872 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 13626 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1480, Top: 210 ft., Bottom: 13626 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4575 ft. | | | | | SHARON SPRINGS | 7008 ft. | | | | | NIOBRARA | 7056 ft. | | | | | FORT HAYS | 7603 ft. | | | | | CODELL | 7691 ft. | | | |
Formation NBFHC Formation Classification: OW Status: PR - 10/1/2025 Interval Top: 7733 ft. Interval Bottom: 13472 ft.| Completed Information for Formation NIOBRARA-FT HAYS-CODELL | | 1st Production Date: | 11/25/2015 | Choke Size: | | | Formation Name: | NIOBRARA-FT HAYS-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/18/2015 | Treatment End Date: | 10/26/2015 | | Treatment Summary: | "PERF AND FRAC FROM 7733-13,472.
12 BBL ACID, 100,165 BBL SLICKWATER, 5,299 BBL WATER, - 105,476 BBL TOTAL FLUID
3,149,991# 40/70 GENOA/SAND HILLS, - 3,149,991# TOTAL SAND."
ENTERED: CODELL 7733-12465, 12596-12943, 13488-13472
FT. HAYS 12,465-12,596; 12,943-13,124; 13,331-13,488
NIOBRARA 13,124-13,331
THIS IS A DESIGNATED SOURCE OF SUPPLY WELL
(SEE ATTACHMENT)
| | Total fluid used in treatment (bbls): | 105476 | Max pressure during treatment (psi): | 6687 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 19 | | Total acid used in treatment (bbls): | 12 | Min frac gradient (psi/ft): | 0.82 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 932 | | Fresh water used in treatment (bbls): | 105464 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3149991 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/6/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 142 | | BBLS_OIL | 207 | | BTU_GAS | 1345 | | CALC_BBLS_H2O | 142 | | CALC_BBLS_OIL | 207 | | CALC_GOR | 1188 | | CALC_MCF_GAS | 246 | | CASING_PRESS | 990 | | GRAVITY_OIL | 46 | | MCF_GAS | 246 |
| | Perforation Data: | | Interval Top: | 7733 ft. | # Of Holes: | 476 | | Interval Bottom: | 13472 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 547 |
| Total Gas Produced (MCF) | 9204 |
| GOR | 16826 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.812 |
| Average MCFE per Day | 33.706 |
| Federal Financial Assurance | i | |
|
|
