COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-069-06415		Well Classification: OW Status: PA - 6/19/2020
Well Name/No:MIRACLE #8-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/19/2020
FacilityID:418096LocationID:333301
Municipality/County:JOHNSTOWN / LARIMER #069Location:NESE 12 5N68W 6
Field:WATTENBERG - #90750Elevation:4948 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2480FSL  285 FELLat/Long: 40.413782 / -104.945468Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.413785 / -104.945475Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 3/2/2012
End Date: 3/2/2012
Reported: 5/1/2012
Prior to rule 205A.b.(2)(A)
Days to report: 60
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

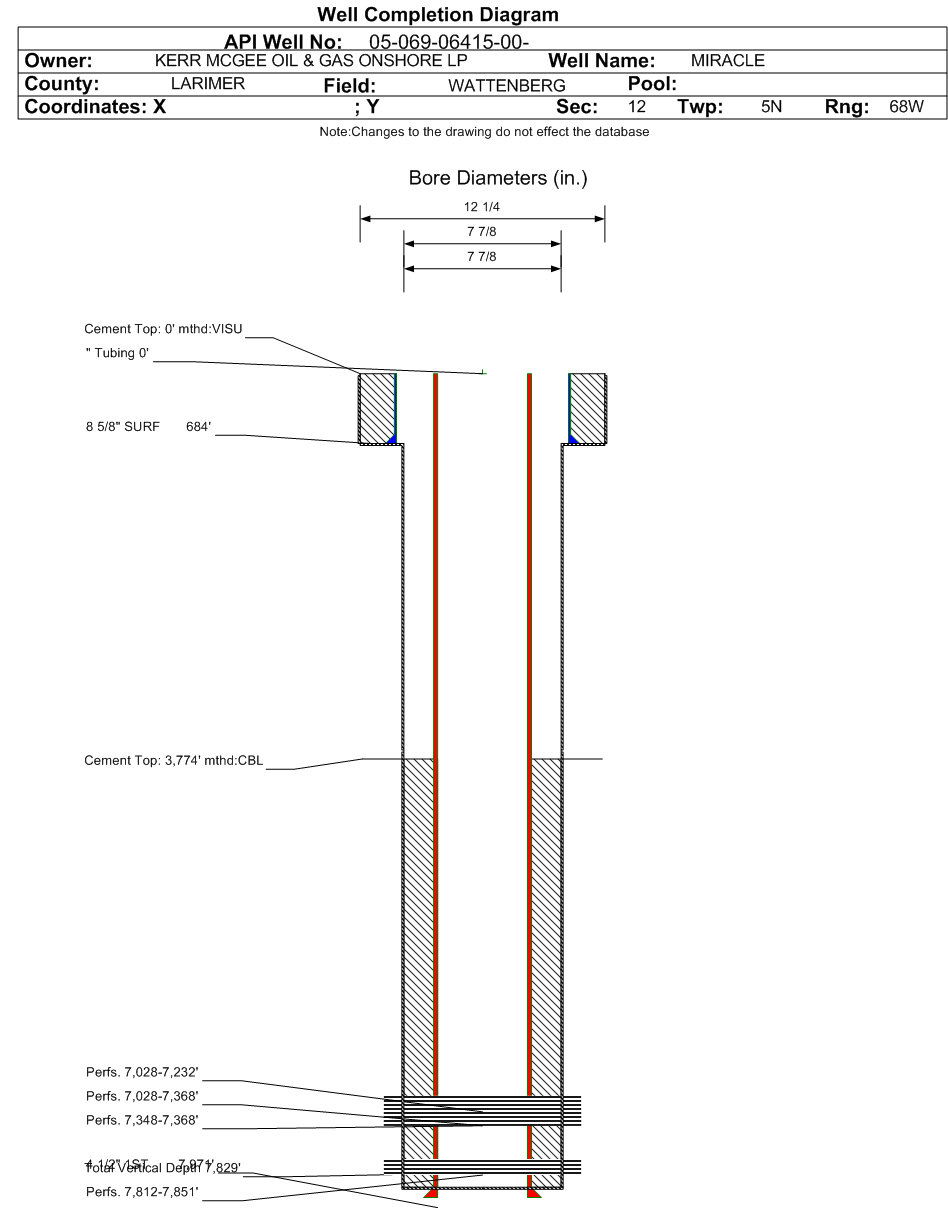

Wellbore #00             Wellbore Classification: OW             Status: PA - 6/19/2020             Measured TD: 7981 ft.    Vertical TD: 7829 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 6/19/2020
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:7/1/2012
Proposed Top PZ Location:Sec:12 Twp: 5N 68W Footage: 1850 FNL  750 FEL
Bottom Hole Location:Sec:12 Twp: 5N 68W Footage: 1850 FNL  750 FEL
Proposed Depth/Form:7920 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: NE/4
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S/2NE/4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 650 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 455, Top: , Bottom: 650 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7920 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom: 7920 ft.
Wellbore Completed
Completion Date:9/2/2010
Spud Date:8/29/2010Spud Date Is:ACTUAL
Measured TD:7981 ft.Measured PB depth:7941 ft.
True Vertical TD:7829 ft.True Vertical PB depth:7789 ft.
Top PZ Location:Sec:12 Twp: 5N 68WFootage: 1842 FNL  722 FEL
Bottom Hole Location:Sec:12 Twp: 5N 68WFootage: 1843 FNL  721 FEL
Log Types:Preliminary Form 5
Log Types:OH LOGS BRIDGED OUT @ 2100' CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 684 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 430, Top: 0 ft., Bottom: 684 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7971 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 617, Top: 3774 ft., Bottom: 7971 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 3687 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 433, Top: 20 ft., Bottom: 3687 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4248 ft.
SHANNON4703 ft.
NIOBRARA7050 ft.
CODELL7370 ft.
J SAND7832 ft.

Formation JSND                     Formation Classification:  OW                     Status:  AB - 6/19/2020                 Interval Top: 7812 ft.    Interval Bottom: 7851 ft.

 Completed Information for Formation J SAND
1st Production Date:6/13/2011Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/22/2010
Treatment Summary:Frac J-Sand down 4-1/2" Csg w/ 500 gal 15% HCl & 153,958 gal Slickwater w/ 116,160# 40/70, 4,000# SB Excel
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BTU_GAS 1284
CALC_GOR 2500
CALC_MCF_GAS 1
CASING_PRESS 1650
GRAVITY_OIL 46
MCF_GAS 1
TUBING_PRESS 1850
Perforation Data:
Interval Top:7812 ft.# Of Holes:72
Interval Bottom:7851 ft.Hole Size:0.4 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 6/21/2012                 Interval Top: 7348 ft.    Interval Bottom: 7368 ft.

 Completed Information for Formation CODELL
1st Production Date:3/6/2012Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/2/2012
Treatment Summary:CD PERF 7348-7368 HOLES 60 SIZE 0.38 Frac CODL down 4.5" casing w/ 127,974 gal w/ 220,000# 20/40, 4,000# SB Excel. Broke @ 3,864 psi @ 2.7 bpm. ATP=3,298 psi; MTP=3,864 psi; ATR=20.6 bpm; ISDP=2,991 psi
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7348 ft.# Of Holes:60
Interval Bottom:7368 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 6/19/2020                 Interval Top: 7028 ft.    Interval Bottom: 7368 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:3/6/2012Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/2/2012
Treatment Summary:NB PERF 7028-7232 HOLES 62 SIZE 0.42 CD PERF 7348-7368 HOLES 60 SIZE 0.38
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/7/2012Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 100
BTU_GAS 1255
CALC_BBLS_OIL 100
CALC_GOR 1000
CALC_MCF_GAS 100
CASING_PRESS 1300
GRAVITY_OIL 45
MCF_GAS 100
Perforation Data:
Interval Top:7028 ft.# Of Holes:122
Interval Bottom:7368 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 6/21/2012                 Interval Top: 7028 ft.    Interval Bottom: 7232 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:3/6/2012Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/2/2012
Treatment Summary:NB PERF 7028-7232 HOLES 62 SIZE 0.42 Frac NBRR down 4.5" casing w/ 250 gal 15% HCl & 171,992 gal w/ 250,100# 20/40, 4,000# SB Excel. Broke @ 3,017 psi @ 2.3 bpm. ATP=4,877 psi; MTP=5,303 psi; ATR=49.6 bpm; ISDP=3,048 psi
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7028 ft.# Of Holes:62
Interval Bottom:7232 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/19/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
