COGIS - WELL SCOUT CARD

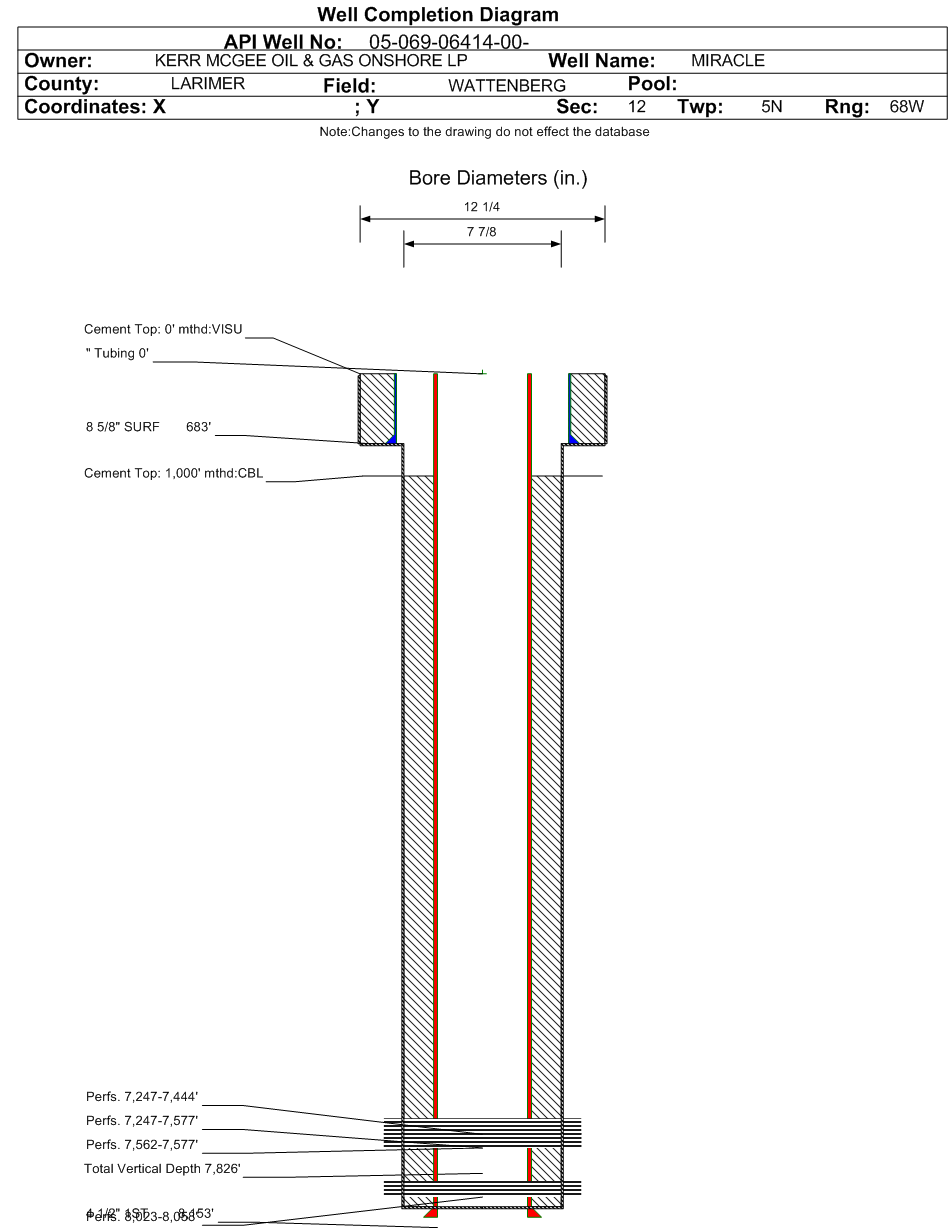

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-069-06414		Well Classification: OW Status: PA - 6/29/2020
Well Name/No:MIRACLE #17-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/29/2020
FacilityID:418095LocationID:333301
Municipality/County:JOHNSTOWN / LARIMER #069Location:NESE 12 5N68W 6
Field:WATTENBERG - #90750Elevation:4948 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2480FSL  275 FELLat/Long: 40.413787 / -104.945510Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.413787 / -104.945510Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 7/25/2013
End Date: 7/25/2013
Reported: 8/28/2013
Days to report: 34
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 6/29/2020             Measured TD: 8168 ft.    Vertical TD: 7826 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 6/29/2020
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:7/14/2015
Proposed Top PZ Location:Sec:12 Twp: 5N 68W Footage: 1320 FNL  1357 FEL
Bottom Hole Location:Sec:12 Twp: 5N 68W Footage: 1319 FNL  1358 FEL
Proposed Depth/Form:8168 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: NE/4
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: NE/4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 683 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 430, Top: 0 ft., Bottom: 683 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8153 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 1242, Top: 1000 ft., Bottom: 8153 ft.
Wellbore Completed
Completion Date:8/29/2010
Spud Date:8/23/2010Spud Date Is:ACTUAL
Measured TD:8168 ft.Measured PB depth:4262 ft.
True Vertical TD:7826 ft.True Vertical PB depth:4007 ft.
Top PZ Location:Sec:12 Twp: 5N 68WFootage: 1320 FNL  1357 FEL
Bottom Hole Location:Sec:12 Twp: 5N 68WFootage: 1319 FNL  1358 FEL
Log Types:Preliminary Form 5
Log Types:CBL; NO OPEN HOLE LOGS
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 683 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 430, Top: 0 ft., Bottom: 683 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8153 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1242, Top: 1000 ft., Bottom: 8153 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: , Depth: , Bottom: , Sacks: , Method: DV TOOL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4373 ft.
NIOBRARA7225 ft.
J SAND8000 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 6/29/2020                 Interval Top: 8023 ft.    Interval Bottom: 8058 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:6/27/2013Treatment End Date:N/A
Treatment Summary:SET CIBP AT 7950' TO TA JSND AND PRODUCE NB-CD.
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Formation Treatment
Treatment Date:11/22/2010
Treatment Summary:PERF JSND 8023-8058 HOLES 66 SIZE .4 Frac J-Sand down 4-1/2" Csg w/ 500 gal 15% HCl & 140,111 gal Slickwater w/ 58,200# 40/70, 4,000# SB Excel. Broke @ 4,870 psi @ 4.6 bpm. ATP=5,043 psi; MTP=5,333 psi; ATR=33.4 bpm; ISDP=3,826 psi
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 1
BTU_GAS 1275
CALC_BBLS_OIL 1
CALC_GOR 90000
CALC_MCF_GAS 90
CASING_PRESS 1536
GRAVITY_OIL 44
MCF_GAS 90
TUBING_PRESS 1000
Perforation Data:
Interval Top:8023 ft.# Of Holes:66
Interval Bottom:8058 ft.Hole Size:0.4 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 6/6/2016                  Interval Top: 7562 ft.    Interval Bottom: 7577 ft.

 Completed Information for Formation CODELL
1st Production Date:9/18/2013Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:7/25/2013Treatment End Date:7/25/2013
Treatment Summary:4745 BBL SLICKWATER, 4745 BBL TOTAL FLUID. 150320# 40/70 SAND, 4000# 20/40 SAND, 154320# TOTAL SAND.
Total fluid used in treatment (bbls):4745Max pressure during treatment (psi):5094
Total gas used in treatment (mcf):0Fluid density (lbs/gal):8.30
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.82
Recycled water used in treatment (bbls):0Total flowback volume recovered (bbls):430
Fresh water used in treatment (bbls):0Disposition method For flowback:DISPOSAL
Total proppant used (lbs):154320Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7562 ft.# Of Holes:60
Interval Bottom:7577 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 6/29/2020                 Interval Top: 7247 ft.    Interval Bottom: 7577 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/18/2013Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/8/2013Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 19
BTU_GAS 1296
CALC_BBLS_OIL 19
CALC_GOR 53
CALC_MCF_GAS 1
CASING_PRESS 288
GRAVITY_OIL 48
MCF_GAS 1
Perforation Data:
Interval Top:7247 ft.# Of Holes:126
Interval Bottom:7577 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OG                     Status:  CM - 6/6/2016                  Interval Top: 7247 ft.    Interval Bottom: 7444 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:9/18/2013Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:7/25/2013Treatment End Date:7/25/2013
Treatment Summary:5983 BBL SLICKWATER, 6 BBL ACID, 5989 BBL TOTAL FLUID. 200340# 40/70 SAND, 4000# 20/40 SAND, 204340# TOTAL SAND.
Total fluid used in treatment (bbls):5989Max pressure during treatment (psi):4942
Total gas used in treatment (mcf):0Fluid density (lbs/gal):8.30
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):6Min frac gradient (psi/ft):0.84
Recycled water used in treatment (bbls):0Total flowback volume recovered (bbls):430
Fresh water used in treatment (bbls):0Disposition method For flowback:DISPOSAL
Total proppant used (lbs):204340Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7247 ft.# Of Holes:66
Interval Bottom:7444 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/29/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
