Wellbore #00 Wellbore Classification: OW Status: PA - 4/6/2023 Measured TD: 8065 ft. Vertical TD: 7826 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 4/6/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/18/2012 | | Proposed Top PZ Location: | Sec:12 Twp: 5N 68W | Footage: 1325 FSL 1377 FEL | | Bottom Hole Location: | Sec:12 Twp: 5N 68W | Footage: 1326 FSL 1380 FEL | | Proposed Depth/Form: | 8064 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: SE/4 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: SE/4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 650 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 455, Top: , Bottom: 650 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8064 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: , Bottom: 8064 ft. |
| | |
| Wellbore Completed | | Completion Date: | 8/14/2010 | | Spud Date: | 8/8/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 8065 ft. | Measured PB depth: | 8018 ft. | | True Vertical TD: | 7826 ft. | True Vertical PB depth: | 7779 ft. | | Top PZ Location: | Sec:12 Twp: 5N 68W | Footage: 1325 FSL 1377 FEL | | Bottom Hole Location: | Sec:12 Twp: 5N 68W | Footage: 1326 FSL 1380 FEL | | Log Types: | Preliminary Form 5 | | Log Types: | NO OPEN HOLE LOGS, BRIDGED OFF @ 2690'

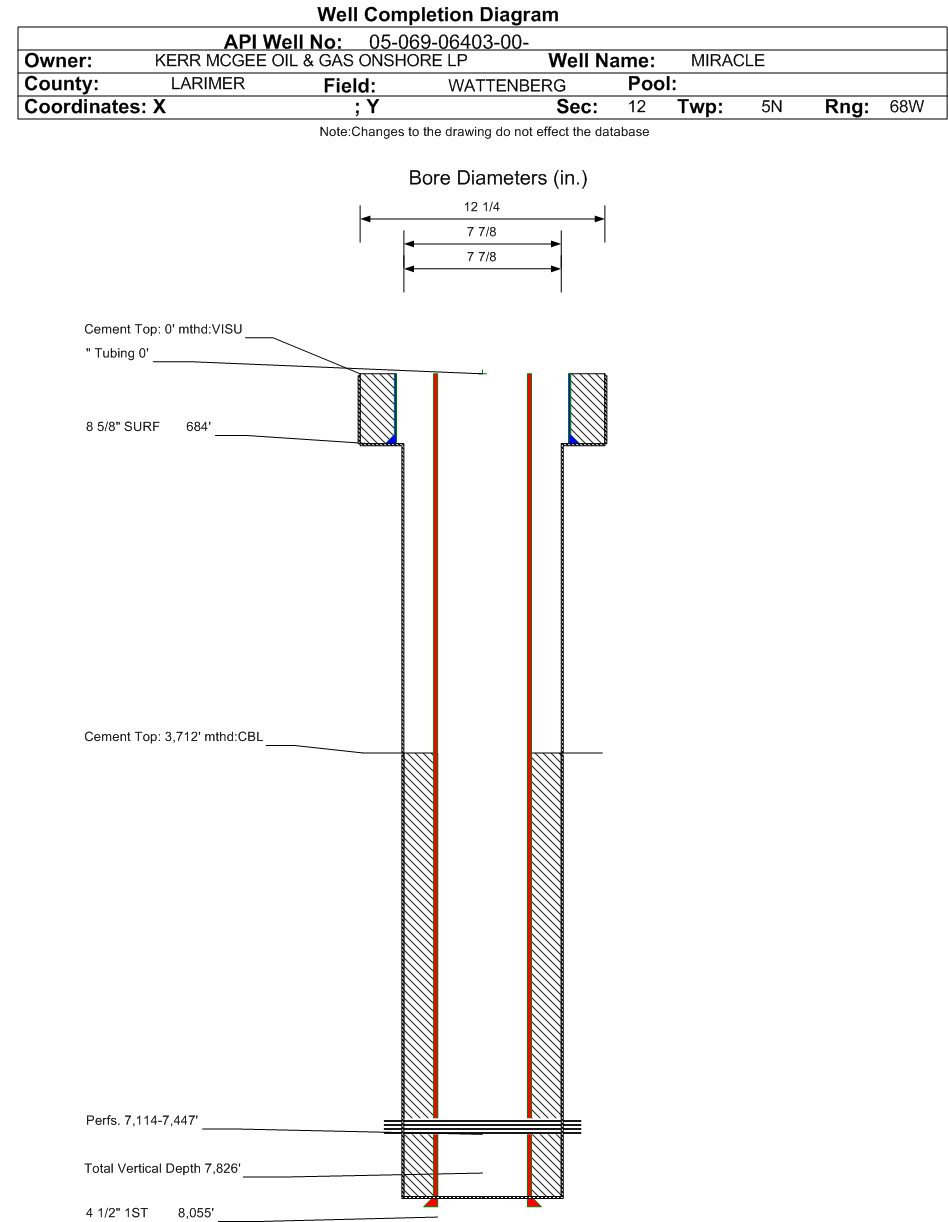

CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 684 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 430, Top: 0 ft., Bottom: 684 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8055 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 612, Top: 3712 ft., Bottom: 8055 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 3712 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 446, Top: 1050 ft., Bottom: 3712 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 3712 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 446, Top: 1050 ft., Bottom: 3712 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3798 ft. | | | | | SUSSEX | 4271 ft. | | | | | SHANNON | 4758 ft. | | | | | NIOBRARA | 7126 ft. | | | | | FORT HAYS | 7431 ft. | | | | | CODELL | 7445 ft. | | | | | J SAND | 7910 ft. | | | |
Formation NB-CD Formation Classification: OW Status: AB - 4/6/2023 Interval Top: 7114 ft. Interval Bottom: 7447 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 12/7/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/19/2010 | | Treatment Summary: | NB Perf 7114-7328 Holes 61 Size 0.42 CD Perf 7425-7447 Holes 66 Size 0.40
Frac Niobrara A & B & C down 4-1/2" Csg w/ 250 gal 15% HCl & 243,708 gal Slickwater w/ 200,600# 40/70, 4,000# SB Excel.
Frac Codell down 4-1/2" Csg w/ 203,411 gal Slickwater w/ 150,020# 40/70, 4,000# SB Excel.
|
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 32 | | BTU_GAS | 1170 | | CALC_BBLS_OIL | 32 | | CALC_GOR | 4375 | | CALC_MCF_GAS | 140 | | CASING_PRESS | 340 | | GRAVITY_OIL | 47 | | MCF_GAS | 140 |
| | Perforation Data: | | Interval Top: | 7114 ft. | # Of Holes: | 127 | | Interval Bottom: | 7447 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/06/2023 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
