Wellbore #00 Wellbore Classification: OW Status: PR - 6/1/2020 Measured TD: 4940 ft. Vertical TD: 4851 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 6/1/2020 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 19920525 | Expiration Date: | 9/19/1992 | | Proposed Depth/Form: | 4978 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | MUDDY SANDSTONE | Unit Number: | | | Formation And Spacing: | Code: MDDYJ , Formation: MUDDY J , Order: 84-2 , Unit Acreage: 0, Drill Unit: |
| | |

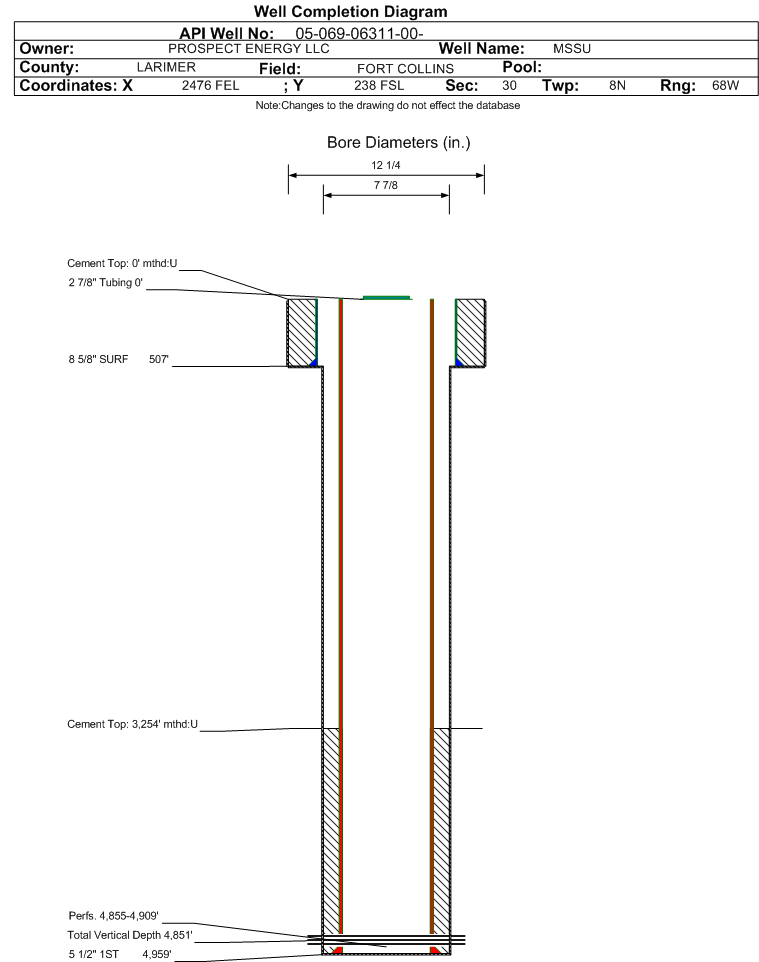

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 5/29/1992 | Spud Date Is: | ACTUAL | | Measured TD: | 4940 ft. | Measured PB depth: | 4957 ft. | | True Vertical TD: | 4851 ft. | True Vertical PB depth: | 4848 ft. | | Top PZ Location: | Sec:8 Twp: 8N 68W | Footage: 411 FSL 1797 FEL | | Bottom Hole Location: | Sec:8 Twp: 8N 68W | Footage: 417 FSL 1766 FEL | | Log Types: | DIL, GR, DENSITY, NEUTRON, CIBL, CBL (ORIGINAL WELL DRILLING) | | Log Types: | DIL, GR, DENSITY/NEUTRON, CIBL, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 507 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 310, Top: 0 ft., Bottom: 507 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4959 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 3254 ft., Bottom: , Determination Method: | | Additional Cement: | String Type: 1ST , Top: 2520 ft., Depth: 3020 ft., Bottom: 3020 ft., Sacks: 185, Method: SQUEEZE | | Additional Cement: | String Type: 1ST , Top: 2520 ft., Depth: 2894 ft., Bottom: 3020 ft., Sacks: 185, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHANNON | 1355 ft. | | | | | NIOBRARA | 3962 ft. | | | | | FORT HAYS | 4286 ft. | | | | | CODELL | 4314 ft. | | | | | BENTONITE | 4609 ft. | | | | | MUDDY J | 4855 ft. | | | |
Formation MDDYJ Formation Classification: OW Status: PR - 6/1/2020 Interval Top: 4855 ft. Interval Bottom: 4909 ft.| Completed Information for Formation MUDDY J | | 1st Production Date: | 9/17/1992 | Choke Size: | | | Formation Name: | MUDDY J | Commingled: | | | Production Method: | BEAM PUMP | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/8/1992 | | Treatment Summary: | 1500 GAL 3% HCL W/BALL SEALERS, FRAC TREATED W/250,000# 16/30 SAND IN CROSSLINKED WATER BASE GEL |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/22/1992 | Test Method: | BEAM PUMP | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 54 | | CALC_BBLS_OIL | 67 | | CASING_PRESS | 11 | | GRAVITY_OIL | 36 |
| | Perforation Data: | | Interval Top: | 4855 ft. | # Of Holes: | 55 | | Interval Bottom: | 4909 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
