COGIS - WELL SCOUT CARD

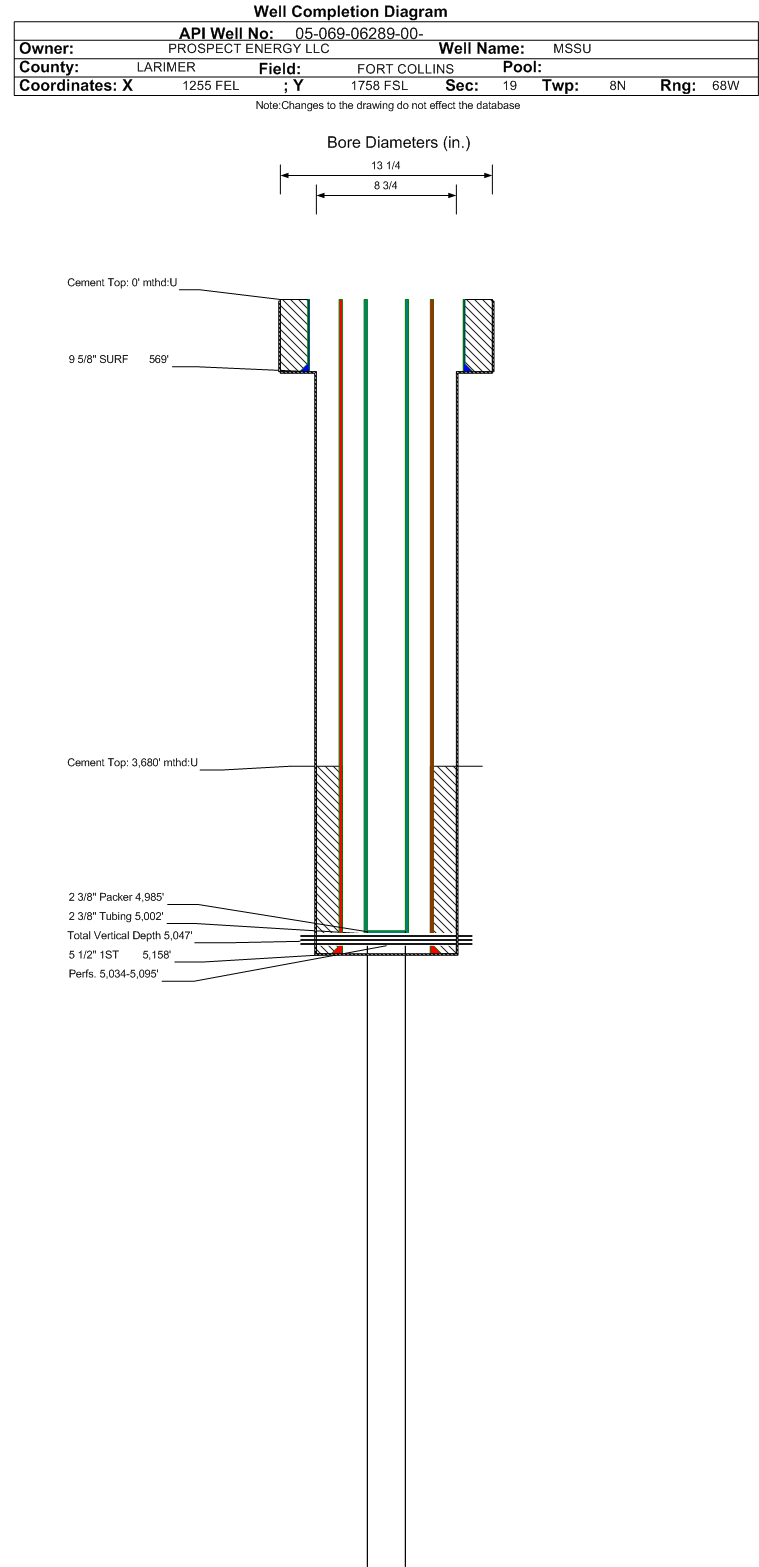

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-069-06289		Well Classification: ERIW Status: IJ - 6/1/2020
Well Name/No:MSSU #19-9 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PROSPECT ENERGY LLC - 10312
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:IJStatus Date6/1/2020
FacilityID:217102LocationID:333078
County:LARIMER #069Location:NESE 19 8N68W 6
Field:FORT COLLINS - #25100Elevation:5099 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1758FSL  1255 FELLat/Long: 40.644090 / -105.043252Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.644183 / -105.043116Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DSPW             Status: IJ - 6/1/2020             Measured TD: 5160 ft.    Vertical TD: 5047 ft.

 Wellbore Data for Original WellboreWellbore Classification: DSPW        IJ - 6/1/2020
Wellbore PermitDIRECTIONAL
Permit #:19871073 Expiration Date:4/28/1988
Proposed Depth/Form:4937 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:MUDDY SANDSTONE Unit Number:
Formation And Spacing:Code: MDDY , Formation: MUDDY , Order: 84-2 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:5/18/1988
Spud Date:4/17/1988Spud Date Is:ACTUAL
Measured TD:5160 ft.Measured PB depth:5134 ft.
True Vertical TD:5047 ft.True Vertical PB depth:5021 ft.
Log Types:DIFL/GR/SP CBL/VDL/CCL/GR
Casing:String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 569 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 5158 ft., Weight: 15.5,17 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 3680 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SHANNON1305 ft.
NIOBRARA4052 ft.
FORT HAYS4409 ft.
TIMPAS4409 ft.
CODELL4432 ft.
GREENHORN4518 ft.
MUDDY5031 ft.Y
SKULL CREEK5092 ft.

Formation MDDY                     Formation Classification:  GW                     Status:  IJ - 6/1/2020                  Interval Top: 5034 ft.    Interval Bottom: 5095 ft.

 Completed Information for Formation MUDDY
1st Production Date:5/18/1988Choke Size:
Formation Name:MUDDYCommingled:
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:5/18/1988
Treatment Summary:750 GAL 7.5% HCL 200,000# 20/40 SD, 88,500 GAL GELLED WATER
Tubing Size:2.375 in.Tubing Setting Depth:5002 ft.
Tubing Packer Depth:5005 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation MDDY.
Perforation Data:
Interval Top:5034 ft.# Of Holes:122
Interval Bottom:5095 ft.Hole Size:0.42 in.
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (UIC)YDefined Inactive
01/31/2024
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
