COGIS - WELL SCOUT CARD

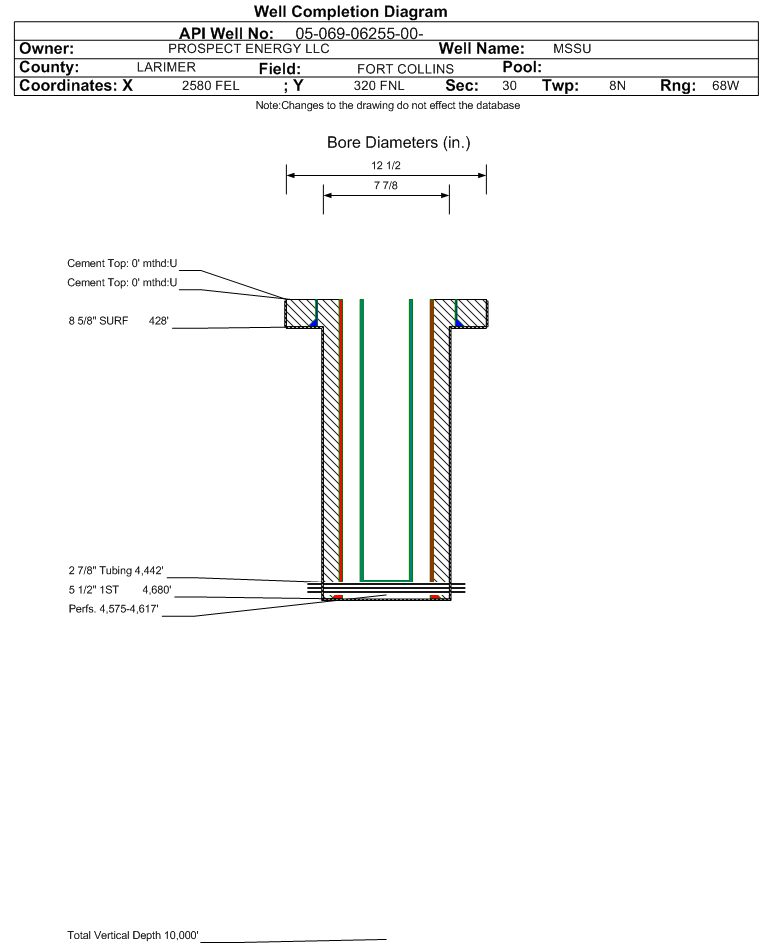

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-069-06255		Well Classification: ERIW Status: SI - 7/1/2023
Well Name/No:MSSU #30-10 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PROSPECT ENERGY LLC - 10312
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date7/1/2023
FacilityID:217068LocationID:307176
Municipality/County:FORT COLLINS / LARIMER #069Location:NWNE 30 8N68W 6
Field:FORT COLLINS - #25100Elevation:5105 ft.
Basin:DENVER (DJ) BASIN
Planned Location:320FNL  2580 FELLat/Long: 40.638420 / -105.048102Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.638410 / -105.047605Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 7/1/2023             Measured TD: 4683 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 7/1/2023
Wellbore Permit
Permit #:19850528 Expiration Date:8/23/1985
Proposed Depth/Form:4625 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit:MUDDY SANDSTONE Unit Number:
Formation And Spacing:Code: MDDY , Formation: MUDDY , Order: 84-2 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:N/A
Spud Date:5/27/1985Spud Date Is:ACTUAL
Measured TD:4683 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:
Log Types:DIL W/SP, CNL/FDC W/COL & GR, CBL
Casing:String Type: SURF, Hole Size: 12.5 in., Size: 8.625 in., Top: 0 ft., Depth: 428 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 0 ft., Bottom: 428 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4680 ft., Weight: 14,15.5 , Citings Type: ACTUAL
Cement:Sacks: 310, Top: 0 ft., Bottom: , Determination Method:
Additional Cement:String Type: 1ST , Top: 0 ft., Depth: 745 ft., Bottom: 745 ft., Sacks: 255, Method: 1 INCH
FormationInterval TopLog BottomCoredDSTs
NIOBRARA3700 ft.
CODELL4025 ft.
BENTONITE4295 ft.
MUDDY4515 ft.Y

Formation MDDYJ                   Formation Classification:  GW                   Status:  SI - 7/1/2023                  Interval Top: 4575 ft.    Interval Bottom: 4617 ft.

 Completed Information for Formation MUDDY J
1st Production Date:9/5/1996Choke Size:
Formation Name:MUDDY JCommingled:
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:6/16/1985
Treatment Summary:1500 GALS 15% HCL
Tubing Size:2.875 in.Tubing Setting Depth:4442 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/29/1989Test Method:PUMPING
Hours Tested:0.5Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 257
Perforation Data:
Interval Top:4575 ft.# Of Holes:44
Interval Bottom:4617 ft.Hole Size:0.375 in.
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (UIC)YDefined Inactive
03/31/2023
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
