COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-069-06247		Well Classification: OW Status: SI - 10/1/2022
Well Name/No:REDWIN #22-64
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:BLACKROCK ENERGY CORP - 10746
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date10/1/2022
FacilityID:217060LocationID:307175
County:LARIMER #069Location:SWNE 22 9N68W 6
Field:CLARKS LAKE - #11300Elevation:5286 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2375FNL  1700 FELLat/Long: 40.734029 / -104.987381Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.734046 / -104.987399Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

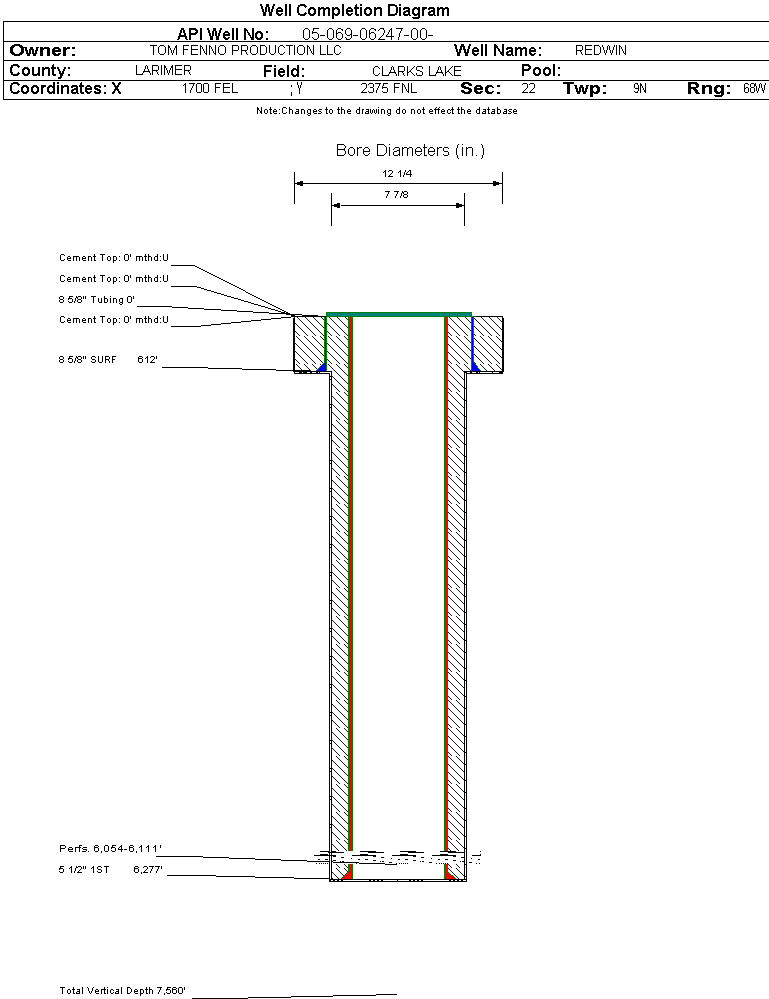

Wellbore #00             Wellbore Classification: OW             Status: SI - 10/1/2022             Measured TD: 7560 ft.    Vertical TD: 7560 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 10/1/2022
Wellbore Permit
Permit #:19850271 Expiration Date:7/4/1985
Proposed Depth/Form:6290 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MDDY , Formation: MUDDY , Order: , Unit Acreage: 20, Drill Unit:
Wellbore Completed
Completion Date:6/7/1985
Spud Date:5/2/1985Spud Date Is:ACTUAL
Measured TD:7560 ft.Measured PB depth:6185 ft.
True Vertical TD:7560 ft.True Vertical PB depth:
Log Types:LDL-CNL, CBL/VDL/GR DUAL INDUCTION, MICRO SFL, SONIC POROSITY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 612 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 325, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6277 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 2031 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 310, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
PARKMAN1470 ft.
SHANNON1828 ft.
PIERRE1958 ft.
NIOBRARA5174 ft.
CODELL5528 ft.
J SAND6048 ft.
ENTRADA6072 ft.
DAKOTA6300 ft.
LAKOTA6380 ft.
MORRISON6430 ft.
LYONS7462 ft.

Formation JSND                     Formation Classification:  OW                     Status:  SI - 10/1/2022                 Interval Top: 6054 ft.    Interval Bottom: 6111 ft.

 Completed Information for Formation J SAND
1st Production Date:5/29/1985Choke Size:
Formation Name:J SANDCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:6/7/1985
Treatment Summary:6054-6111' ACIDIZE W/1500 GAL 7.5% HCII, AND SAND FRAC W/60,000 GAL GELLED WATER AND 140,000# 20/40 MESH SAND.
Tubing Size:8.625 in.Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/13/1985Test Method:PUMPING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 42
BBLS_OIL 150
Perforation Data:
Interval Top:6054 ft.# Of Holes:
Interval Bottom:6111 ft.Hole Size:
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2027
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
09/30/2022
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
