Wellbore #00 Wellbore Classification: ERIW Status: IJ - 8/1/2020 Measured TD: 6202 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: ERIW IJ - 8/1/2020 | | Wellbore Permit | | | Permit #: | 19841879 | Expiration Date: | 4/19/1985 | | Proposed Depth/Form: | 6160 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: MDDYJ , Formation: MUDDY J , Order: , Unit Acreage: 20, Drill Unit: | | Casing: | String Type: 2ND, Hole Size: 5.125 in., Size: 4.5 in., Top: 0 ft., Depth: 5970 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: 5970 ft. |
| | |

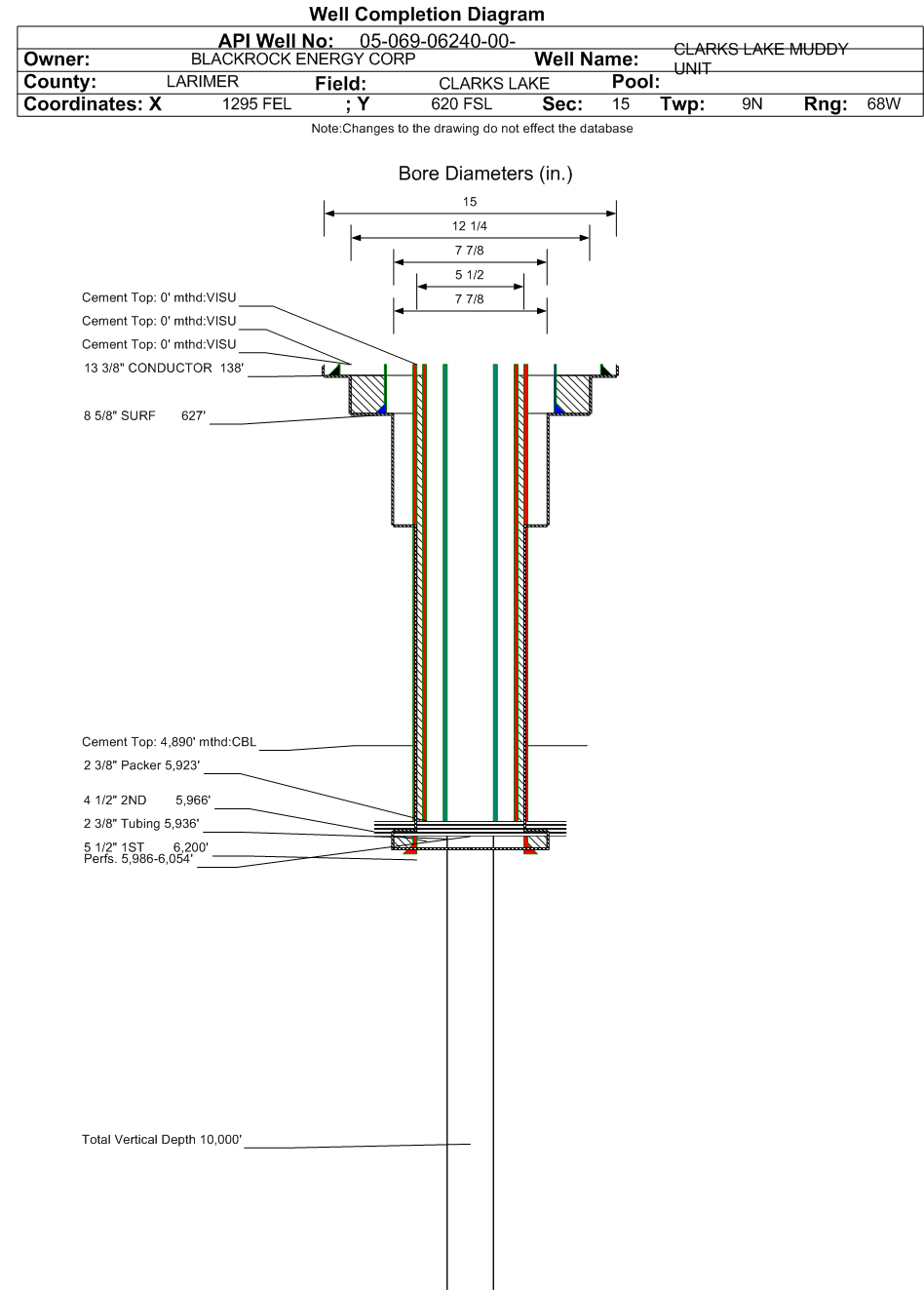

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 4/15/1985 | Spud Date Is: | ACTUAL | | Measured TD: | 6202 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | | | Log Types: | DIL/GR, DSN/CDL/GR/CAL, CBL/VDL/GR | | Casing: | String Type: CONDUCTOR, Hole Size: 15 in., Size: 13.375 in., Top: 0 ft., Depth: 138 ft., Weight: 64 , Citings Type: ACTUAL | | Cement: | Sacks: 75, Top: 0 ft., Bottom: 138 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 627 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 627 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6200 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 265, Top: 4890 ft., Bottom: 6200 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 5.5 in., Size: 4.5 in., Top: 0 ft., Depth: 5966 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 125, Top: 0 ft., Bottom: 5966 ft., Determination Method: VISU | | Casing: | String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2056 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 600 ft., Bottom: 2056 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | CODELL | 5468 ft. | | | | | MUDDY J | 5984 ft. | | | | | SKULL CREEK | 6120 ft. | | | |
Formation JSND Formation Classification: ERIW Status: IJ - 8/1/2020 Interval Top: 5986 ft. Interval Bottom: 6054 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 10/27/2017 | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 3/24/2020 | Treatment End Date: | N/A | | Treatment Summary: | Installed new second casing string 4 1/2" diameter | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 5/24/1985 | | Treatment Summary: | 5986-6054; ACIDIZE W/1800 GAL SAN-1(7.5% HC1); SAND FRAC W/60000 GAL GEL WTR & 140,000# 20/40 MESH SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5936 ft. | | Tubing Packer Depth: | 5943 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 240 | | BBLS_OIL | 142 | | GRAVITY_OIL | 37 |
| | Perforation Data: | | Interval Top: | 5986 ft. | # Of Holes: | 18 | | Interval Bottom: | 6054 ft. | Hole Size: | 0.32 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
