COGIS - WELL SCOUT CARD

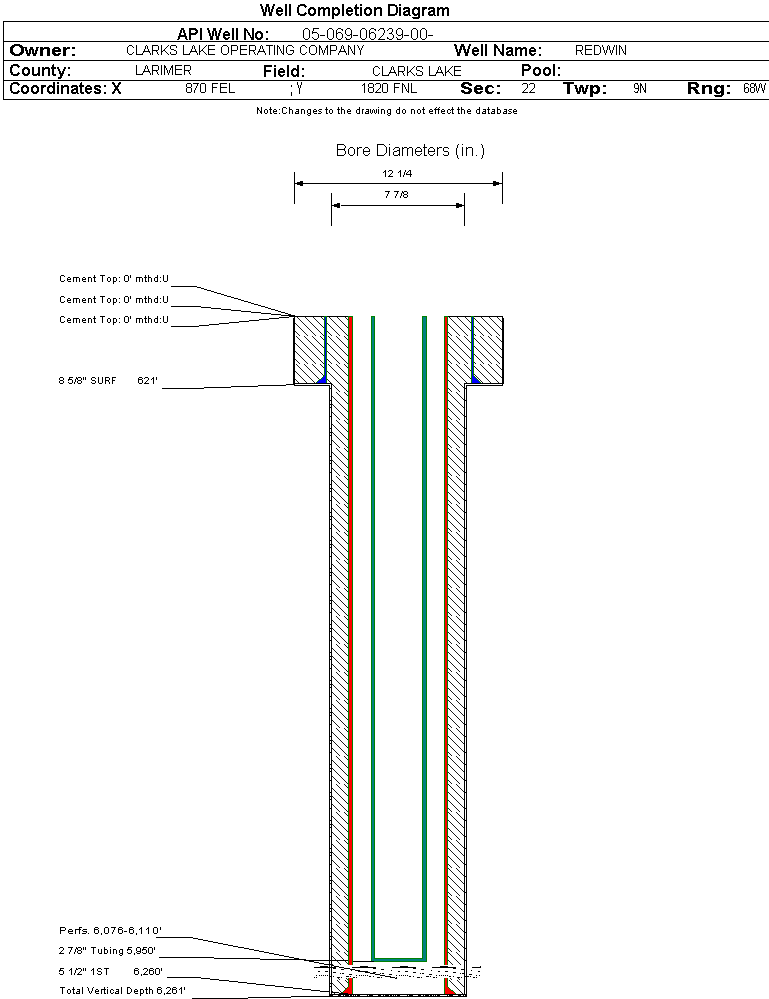

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-069-06239		Well Classification: ERIW Status: SI - 8/1/2024
Well Name/No:REDWIN #22-6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:BLACKROCK ENERGY CORP - 10746
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date8/1/2024
FacilityID:217052LocationID:307172
County:LARIMER #069Location:SENE 22 9N68W 6
Field:CLARKS LAKE - #11300Elevation:5289 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1820FNL  870 FELLat/Long: 40.735549 / -104.984391Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.735561 / -104.984336Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 8/1/2024             Measured TD: 6261 ft.    Vertical TD: 6261 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 8/1/2024
Wellbore Permit
Permit #:19841858 Expiration Date:4/26/1985
Proposed Depth/Form:6260 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MDDYJ , Formation: MUDDY J , Order: 0 , Unit Acreage: 20, Drill Unit:
Wellbore Completed
Completion Date:3/1/1985
Spud Date:12/26/1984Spud Date Is:ACTUAL
Measured TD:6261 ft.Measured PB depth:6184 ft.
True Vertical TD:6261 ft.True Vertical PB depth:
Log Types:DIGR, CDN-DSN, SP, GR, CAL, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 621 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 621 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6260 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 560, Top: 4098 ft., Bottom: 6260 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 2090 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 440, Top: 391 ft., Bottom: 2090 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA5195 ft.
FORT HAYS5527 ft.
CODELL5547 ft.
CARLILE5578 ft.
GRANEROS5838 ft.
MUDDY J6075 ft.
SKULL CREEK6174 ft.

Formation MDDYJ                   Formation Classification:  OW                   Status:  SI - 8/1/2024                  Interval Top: 6076 ft.    Interval Bottom: 6110 ft.

 Completed Information for Formation MUDDY J
1st Production Date:1/22/1985Choke Size:0.000 in.
Formation Name:MUDDY JCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:3/1/1985
Treatment Summary:SEE SCANNED DOCUMENT #00222328
Tubing Size:2.875 in.Tubing Setting Depth:5950 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/1/1985Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 62
BBLS_OIL 59
CALC_BBLS_H2O 62
CALC_BBLS_OIL 59
GRAVITY_OIL 37
Perforation Data:
Interval Top:6076 ft.# Of Holes:136
Interval Bottom:6110 ft.Hole Size:0.49 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2027
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
07/31/2024
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
