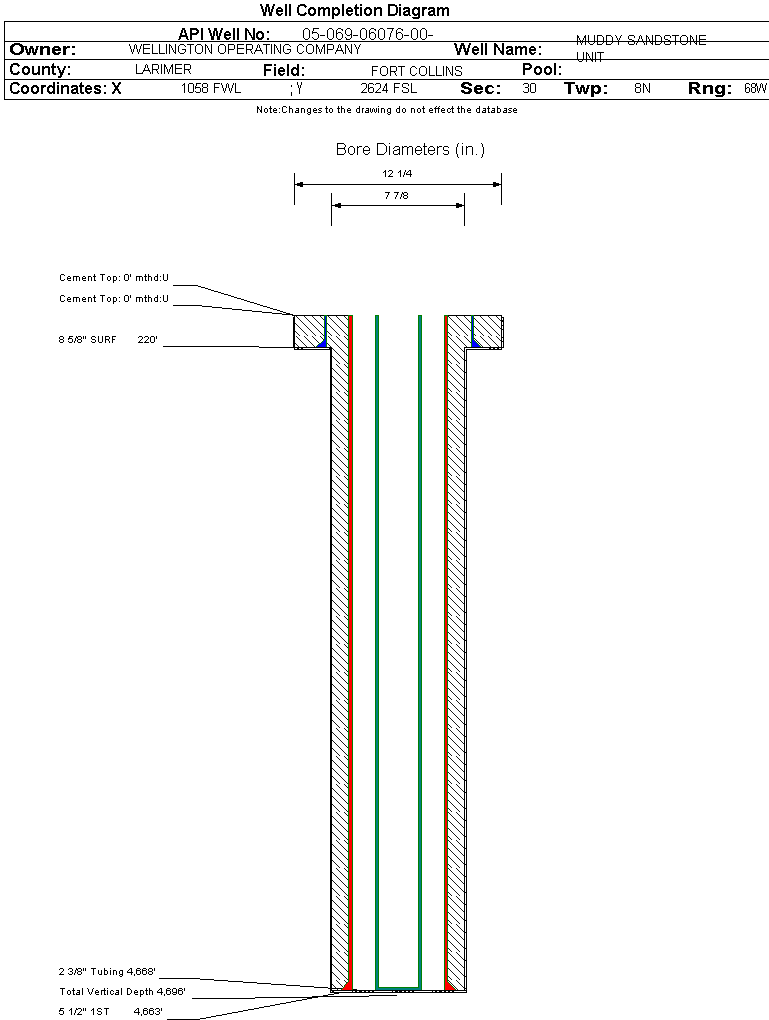

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-069-06076		Well Classification: OW Status: PR - 6/1/2020
Well Name/No:MUDDY SANDSTONE UNIT #30-2 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PROSPECT ENERGY LLC - 10312
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/1/2020
FacilityID:216889LocationID:333089
Municipality/County:FORT COLLINS / LARIMER #069Location:NWSW 30 8N68W 6
Field:FORT COLLINS - #25100Elevation:5091 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2624FSL  1058 FWLLat/Long: 40.632070 / -105.053452Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.632129 / -105.053409Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 6/1/2020             Measured TD: 4696 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 6/1/2020
Wellbore Permit
Permit #:19781070 Expiration Date:2/19/1979
Proposed Depth/Form:4670 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit:MUDDY SANDSTONE Unit Number:
Formation And Spacing:Code: MDDY , Formation: MUDDY , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:N/A
Spud Date:10/21/1978Spud Date Is:ACTUAL
Measured TD:4696 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:OWP, GAMMA RAY, NEUTRON
Log Types:
Log Types:OWP GAMM RAY - NEUTRON
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 220 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4663 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 0 ft., Bottom: , Determination Method:
Additional Cement:String Type: 1ST , Top: 3820 ft., Depth: 3890 ft., Bottom: 3940 ft., Sacks: 362, Method: SQUEEZE
Additional Cement:String Type: 1ST , Top: , Depth: 3890 ft., Bottom: , Sacks: 50, Method: SQUEEZE
Additional Cement:String Type: 1ST , Top: 1000 ft., Depth: 2290 ft., Bottom: 2290 ft., Sacks: 500, Method: SQUEEZE
Additional Cement:String Type: SURF , Top: 0 ft., Depth: 530 ft., Bottom: 530 ft., Sacks: 236, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
NIOBRARA3808 ft.
FORT HAYS4135 ft.
MUDDY4666 ft.

Formation MDDY                     Formation Classification:  OW                     Status:  PR - 6/1/2020                  Interval Top: 4666 ft.

 Completed Information for Formation MUDDY
1st Production Date:1/12/1979Choke Size:
Formation Name:MUDDYCommingled:
Production Method:PUMPING
Open Hole Completion:Yes
Formation Treatment
Treatment Date:1/12/1979
Treatment Summary:SEE SCANNED DOCUMENT # 00240016
Tubing Size:2.375 in.Tubing Setting Depth:4668 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/24/1979Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 28
CALC_GOR 400
GRAVITY_OIL 35
MCF_GAS 1.3
No Perforation Data was found for formation MDDY.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
