COGIS - WELL SCOUT CARD

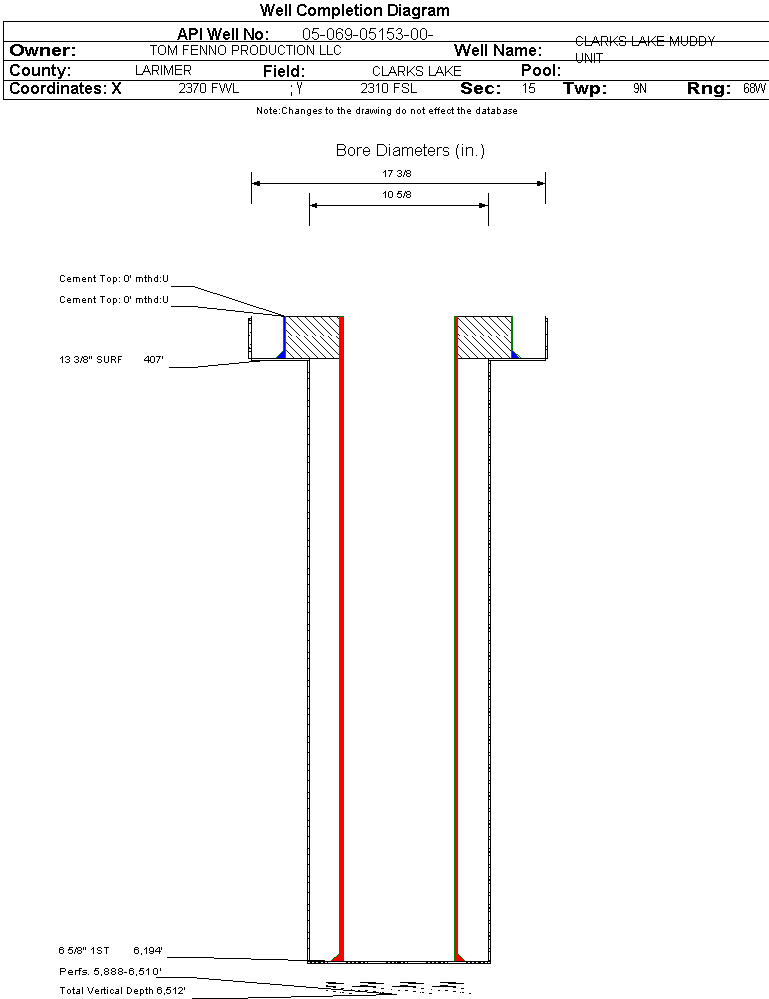

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-069-05153		Well Classification: OW Status: PR - 12/1/2024
Well Name/No:CLARKS LAKE MUDDY SAND UNIT #H-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:BLACKROCK ENERGY CORP - 10746
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2024
FacilityID:216733LocationID:307067
County:LARIMER #069Location:NESW 15 9N68W 6
Field:CLARKS LAKE - #11300Elevation:5325 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1650FSL  2370 FWLLat/Long: 40.745094 / -104.991664Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.745104 / -104.991704Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 12/1/2024             Measured TD: 6512 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 12/1/2024
Wellbore Permit
Permit #:19430000 Expiration Date:8/30/1944
Proposed Depth/Form:7000 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MDDYJ , Formation: MUDDY J , Order: , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:6/1/1984
Spud Date:9/16/1943Spud Date Is:ACTUAL
Measured TD:6512 ft.Measured PB depth:5924 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: , Size: 13.375 in., Top: , Depth: 407 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 475, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: , Size: 6.625 in., Top: , Depth: 6194 ft., Weight: 24 &26 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: , Determination Method:

Formation JSND                     Formation Classification:  OW                     Status:  PR - 12/1/2024                 Interval Top: 5888 ft.    Interval Bottom: 6510 ft.

 Completed Information for Formation J SAND
1st Production Date:1/28/1944Choke Size:
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:5888 ft.# Of Holes:80
Interval Bottom:6510 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)991
Total Gas Produced (MCF)2020
GOR2038
GOR DeterminationBOE
Average BOE per Day3.671
Average MCFE per Day21.310

 Federal Financial Assurance  i

 Tribal Well  i No
