COGIS - WELL SCOUT CARD

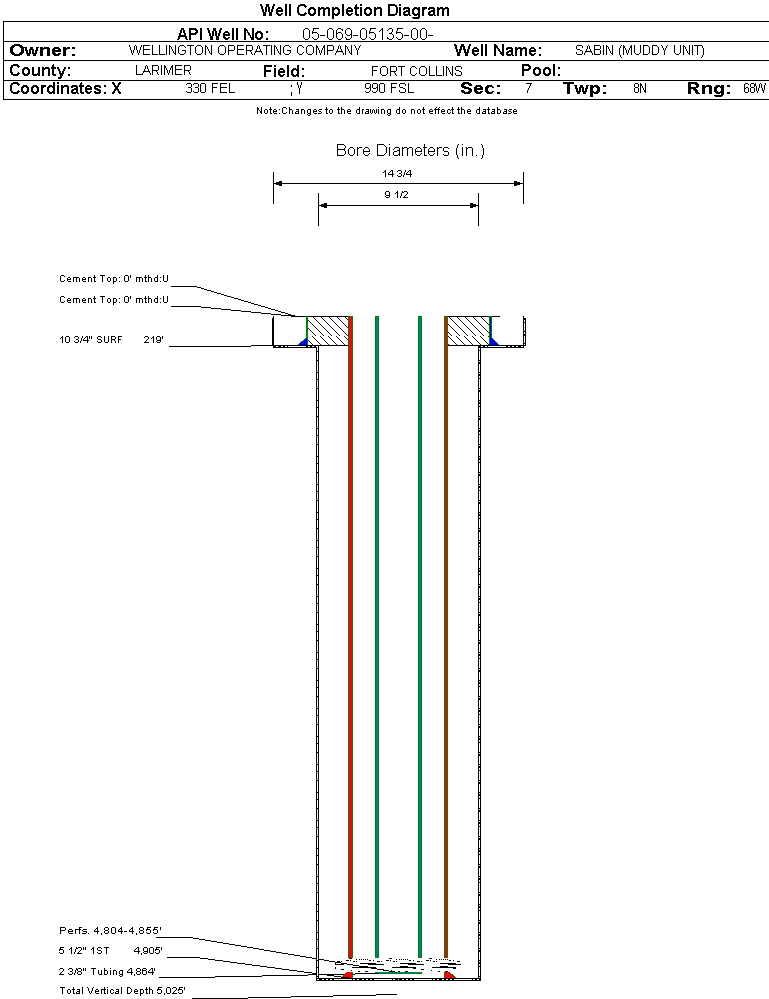

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-069-05135		Well Classification: OW Status: PR - 12/1/2022
Well Name/No:SABIN (MUDDY UNIT) #1 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PROSPECT ENERGY LLC - 10312
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2022
FacilityID:216722LocationID:307064
County:LARIMER #069Location:SESE 7 8N68W 6
Field:FORT COLLINS - #25100Elevation:5195 ft.
Planned Location:990FSL  330 FELLat/Long: 40.670870 / -105.039632Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.670977 / -105.039498Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 12/1/2022             Measured TD: 5025 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 12/1/2022
Wellbore Permit
Permit #:19560000 Expiration Date:12/13/1956
Proposed Depth/Form:6100 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit:MUDDY SANDSTONE UNIT Unit Number:
Formation And Spacing:Code: LYNS , Formation: LYONS , Order: 84 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:9/19/1956
Spud Date:8/17/1956Spud Date Is:ACTUAL
Measured TD:5025 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:MICRO-DIP
Casing:String Type: SURF, Hole Size: , Size: 10.75 in., Top: 0 ft., Depth: 219 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 140, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: , Size: 5.5 in., Top: 0 ft., Depth: 4905 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
PIERRE650 ft.
HYGIENE1465 ft.
NIOBRARA3926 ft.
TIMPAS4286 ft.
CODELL4304 ft.
MUDDY4746 ft.
SKULL CREEK4930 ft.
DAKOTA5012 ft.

Formation MDDY                     Formation Classification:  OW                     Status:  PR - 12/1/2022                 Interval Top: 4804 ft.    Interval Bottom: 4855 ft.

 Completed Information for Formation MUDDY
1st Production Date:11/3/1956Choke Size:
Formation Name:MUDDYCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:9/19/1956
Treatment Summary:24,000#/19,000 GALS CRUDE OIL
Tubing Size:2.375 in.Tubing Setting Depth:4864 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/12/1956Test Method:PUMPING
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_BBLS_OIL 30
GRAVITY_OIL 38
Perforation Data:
Interval Top:4804 ft.# Of Holes:
Interval Bottom:4855 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
