COGIS

Facility Detail

COGIS - WELL SCOUT CARD

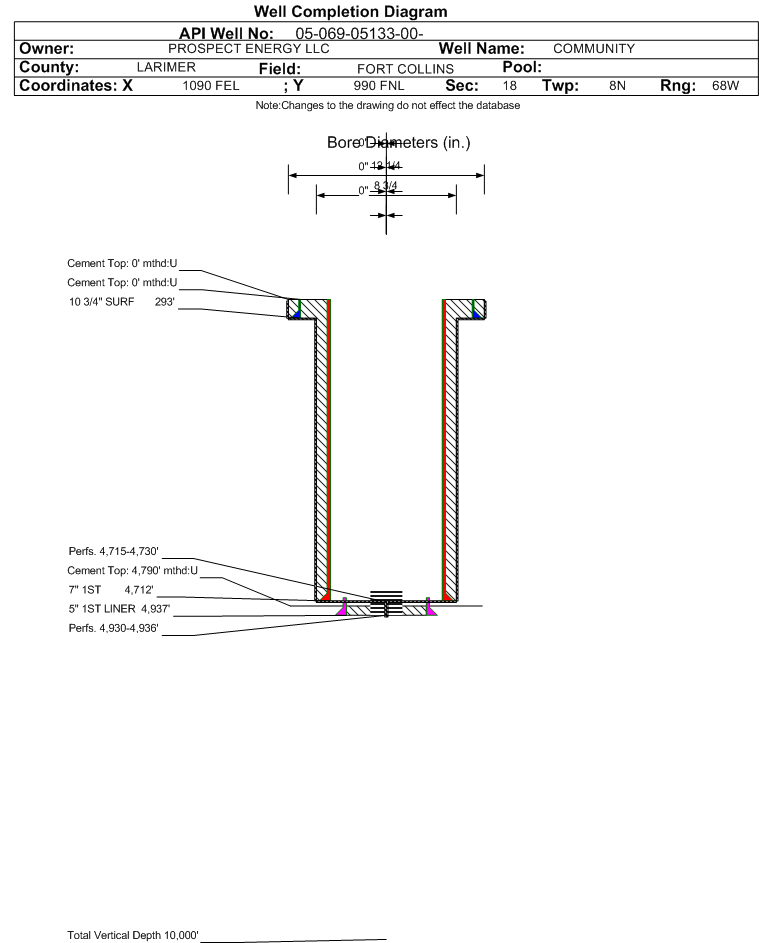

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-069-05133		Well Classification: ERIW Status: SI - 1/1/2024
Well Name/No:COMMUNITY #2 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PROSPECT ENERGY LLC - 10312
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date1/1/2024
FacilityID:216720LocationID:307062
County:LARIMER #069Location:NENE 18 8N68W 6
Field:FORT COLLINS - #25100Elevation:5168 ft.
Basin:DENVER (DJ) BASIN
Planned Location:990FNL  1090 FELLat/Long: 40.665490 / -105.042452Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.665538 / -105.039942Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: SI - 1/1/2024             Measured TD: 4940 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        SI - 1/1/2024
Wellbore Permit
Permit #:19450000 Expiration Date:6/3/1945
Proposed Depth/Form:4711 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit:MUDDY SANDSTONE Unit Number:
Formation And Spacing:Code: MDDY , Formation: MUDDY , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:12/20/1989
Spud Date:12/28/1944Spud Date Is:ACTUAL
Measured TD:4940 ft.Measured PB depth:4810 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:ELECTRICAL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 10.75 in., Top: 0 ft., Depth: 293 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 4712 ft., Weight: 20,24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST LINER, Hole Size: 0 in., Size: 5 in., Top: 4660 ft., Depth: 4937 ft., Weight: 15 , Citings Type: ACTUAL
Cement:Sacks: 75, Top: 4790 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
HYGIENE1405 ft.
NIOBRARA3860 ft.
CODELL4211 ft.
MUDDY4711 ft.
DAKOTA4927 ft. Y

Formation DKTA                     Formation Classification:  GW                     Status:  AB - 11/19/1989                Interval Top: 4930 ft.    Interval Bottom: 4936 ft.

 Completed Information for Formation DAKOTA
1st Production Date:9/21/1954Choke Size:
Formation Name:DAKOTACommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/20/1989
Treatment Summary:FRAC'D W/1900# & 5,000 GAL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/21/1954Test Method:FLOWING
Hours Tested:10Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 93
Perforation Data:
Interval Top:4930 ft.# Of Holes:
Interval Bottom:4936 ft.Hole Size:

Formation MDDY                     Formation Classification:  GW                     Status:  SI - 1/1/2024                  Interval Top: 4715 ft.    Interval Bottom: 4730 ft.

 Completed Information for Formation MUDDY
1st Production Date:N/AChoke Size:
Formation Name:MUDDYCommingled:
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:12/20/1989
Treatment Summary:1949 - SHOT WITH 71 QTS SOLID NITRO GLYCERIN, 1961 - ACIDIZED W/500 GAL 28%, FRAC'D W/10,000# & 10,000 GAL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation MDDY.
Perforation Data:
Interval Top:4715 ft.# Of Holes:
Interval Bottom:4730 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (UIC)YDefined Inactive
11/30/2023
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
